Components [12/2013 - 11/2016]: Illustration

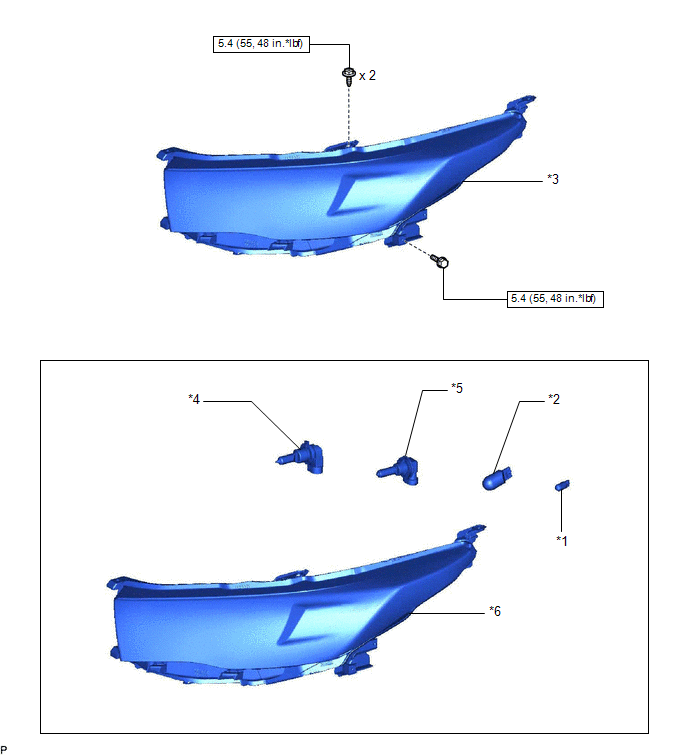

Fig 1: Headlight Assembly Replacement Components With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	FRONT SIDE MARKER LIGHT BULB	*2	FRONT TURN SIGNAL AND PARKING LIGHT BULB
*3	HEADLIGHT ASSEMBLY	*4	NO. 1 HEADLIGHT BULB
*5	NO. 2 HEADLIGHT BULB	*6	HEADLIGHT UNIT
	N*m (kgf*cm, ft.*lbf): Specified torque	-	-
