Removal [02/2014 - 11/2016]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE FRONT WHEEL RH
  2. REMOVE NO. 1 ENGINE UNDER COVER

    Refer to PROCEDURE - Step 11 , or refer to PROCEDURE - Step 11

  3. SEPARATE FRONT FENDER LINER RH

    Refer to PROCEDURE - Step 15 , or refer to PROCEDURE - Step 15

  4. REMOVE FRONT FENDER APRON SEAL RH

    Refer to PROCEDURE - Step 17 , or refer to PROCEDURE - Step 17

  5. REMOVE ENGINE OIL PRESSURE SWITCH ASSEMBLY
    1. Disconnect the wire harness protector.
      GTY429071Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Wire Harness Protector
    2. Disconnect the engine oil pressure switch assembly connector.

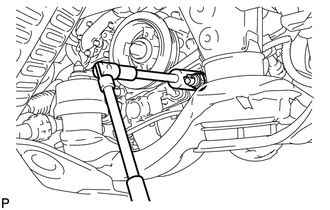

    3. Using a 24 mm deep socket wrench, remove the engine oil pressure switch assembly.
      GTY308242Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
