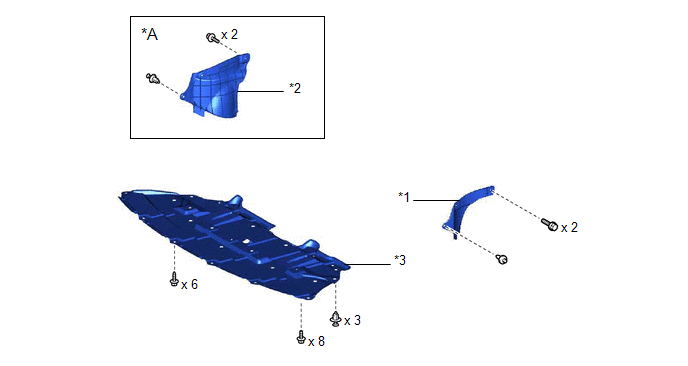

Components [11/2016 - ]: Illustration
| *A | for AWD | - | - |
| *1 | FRONT FENDER APRON SEAL LH | *2 | FRONT FENDER APRON SEAL RH |
| *3 | NO. 1 ENGINE UNDER COVER | - | - |

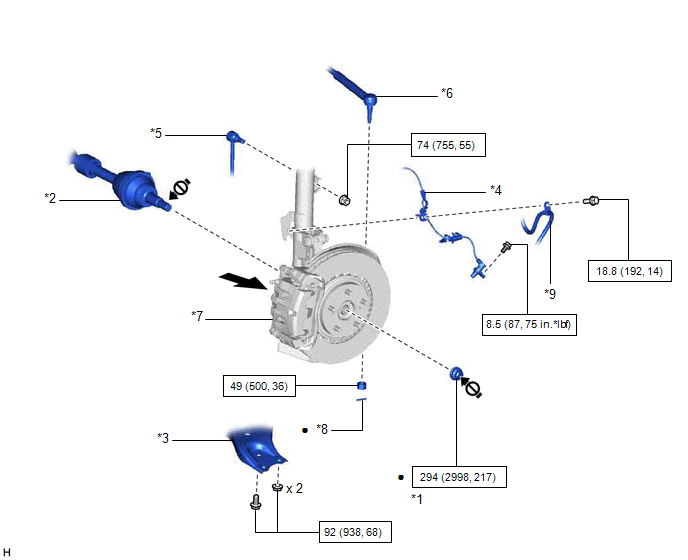

Fig 1: Front Drive Shaft Assembly (for 2GR-FKS) Replacement Components With Torque Specifications (2 Of 7)
| Callout | Description | Callout | Description |
| *1 | FRONT AXLE SHAFT NUT | *2 | FRONT DRIVE SHAFT ASSEMBLY |
| *3 | FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY | *4 | FRONT SPEED SENSOR |
| *5 | FRONT STABILIZER LINK ASSEMBLY | *6 | TIE ROD ASSEMBLY |
| *7 | FRONT AXLE ASSEMBLY | *8 | COTTER PIN |
| *9 | FRONT FLEXIBLE HOSE | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part | |
| Toyota Body Grease W | Do not apply lubricants to the threaded parts |

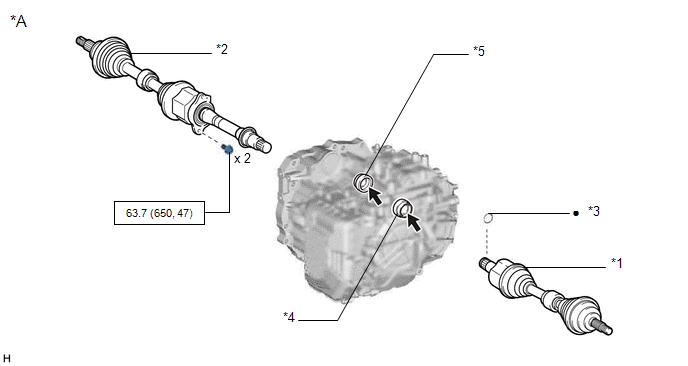

Fig 1: Front Drive Shaft Assembly (for 2GR-FKS) Replacement Components With Torque Specifications (3 Of 7)
| Callout | Description | Callout | Description |
| *A | for 2WD | - | - |
| *1 | FRONT DRIVE SHAFT ASSEMBLY LH | *2 | FRONT DRIVE SHAFT ASSEMBLY RH |
| *3 | FRONT DRIVE SHAFT HOLE SNAP RING | *4 | FRONT DRIVE SHAFT OIL SEAL LH |
| *5 | FRONT DRIVE SHAFT OIL SEAL RH | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part | |
| MP grease | - | - |

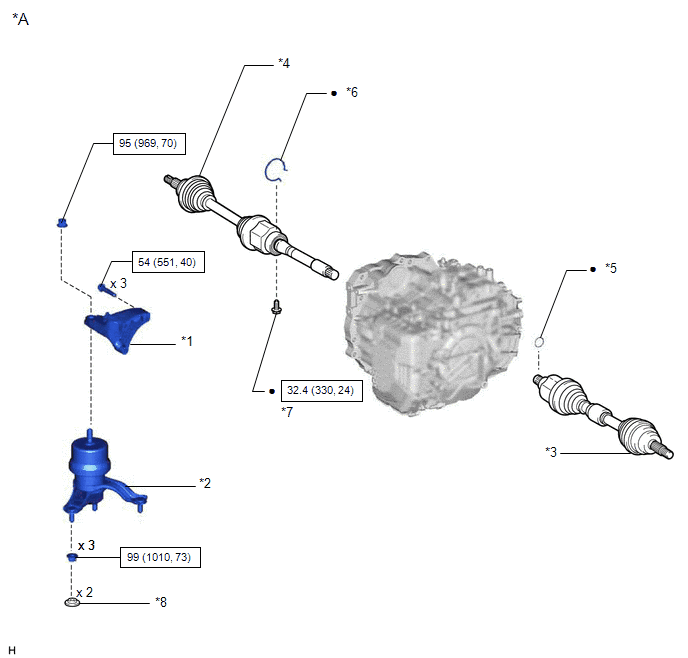

Fig 1: Front Drive Shaft Assembly (for 2GR-FKS) Replacement Components With Torque Specifications (4 Of 7)
| Callout | Description | Callout | Description |
| *A | for AWD | - | - |
| *1 | ENGINE MOUNTING BRACKET RH | *2 | ENGINE MOUNTING INSULATOR RH |
| *3 | FRONT DRIVE SHAFT ASSEMBLY LH | *4 | FRONT DRIVE SHAFT ASSEMBLY RH |
| *5 | FRONT DRIVE SHAFT HOLE SNAP RING | *6 | BEARING BRACKET HOLE SNAP RING |
| *7 | NO. 1 DRIVE SHAFT BEARING BRACKET SETTING BOLT | *8 | HOLE PLUG |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part |

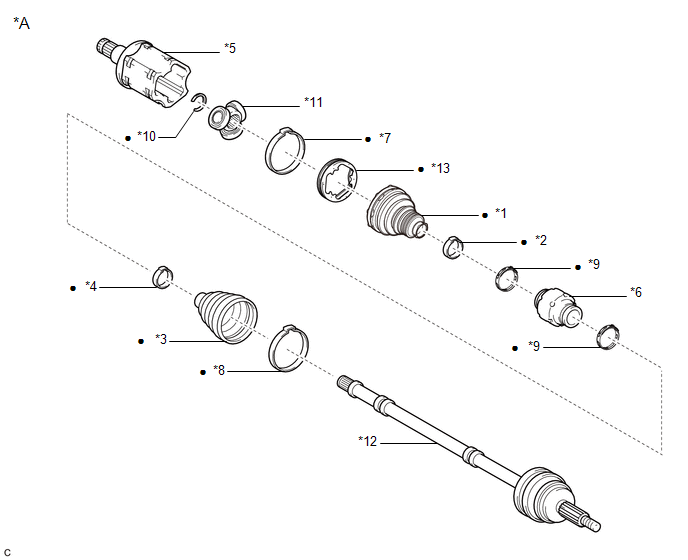

| *A | for LH Side | - | - |
| *1 | FRONT AXLE INBOARD JOINT BOOT | *2 | FRONT AXLE INBOARD JOINT BOOT CLAMP |
| *3 | FRONT AXLE OUTBOARD JOINT BOOT | *4 | FRONT AXLE OUTBOARD JOINT BOOT CLAMP |
| *5 | FRONT DRIVE INBOARD JOINT ASSEMBLY | *6 | FRONT DRIVE SHAFT DAMPER |
| *7 | FRONT NO. 2 AXLE INBOARD JOINT BOOT CLAMP | *8 | FRONT NO. 2 AXLE OUTBOARD JOINT BOOT CLAMP |
| *9 | FRONT DRIVE SHAFT DAMPER CLAMP | *10 | SHAFT SNAP RING |
| *11 | TRIPOD JOINT | *12 | FRONT DRIVE OUTBOARD JOINT SHAFT ASSEMBLY |
| *13 | FRONT AXLE INBOARD JOINT GROMMET | - | - |
| • | Non-reusable part | - | - |

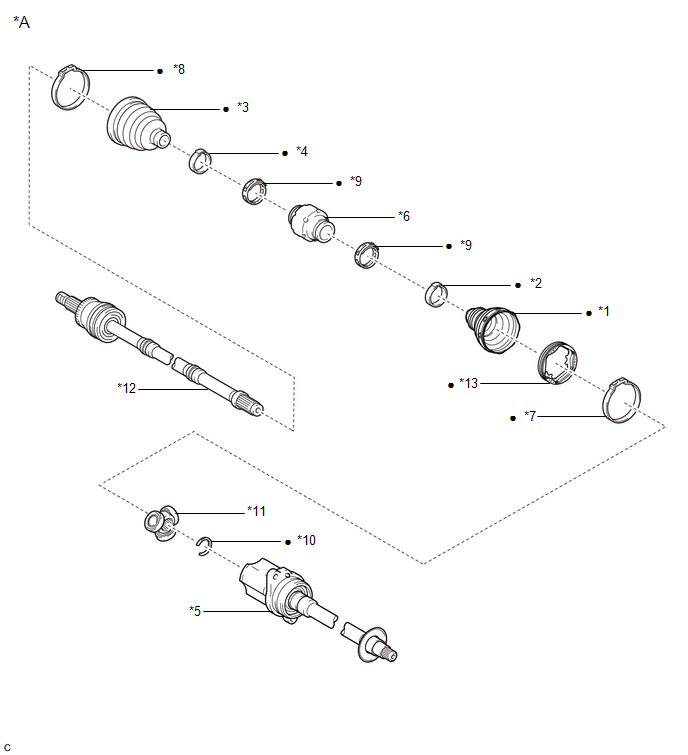

| *A | for RH Side (2WD) | - | - |
| *1 | FRONT AXLE INBOARD JOINT BOOT | *2 | FRONT AXLE INBOARD JOINT BOOT CLAMP |
| *3 | FRONT AXLE OUTBOARD JOINT BOOT | *4 | FRONT AXLE OUTBOARD JOINT BOOT CLAMP |
| *5 | FRONT DRIVE INBOARD JOINT ASSEMBLY | *6 | FRONT DRIVE SHAFT DAMPER |
| *7 | FRONT NO. 2 AXLE INBOARD JOINT BOOT CLAMP | *8 | FRONT NO. 2 AXLE OUTBOARD JOINT BOOT CLAMP |
| *9 | FRONT DRIVE SHAFT DAMPER CLAMP | *10 | SHAFT SNAP RING |
| *11 | TRIPOD JOINT | *12 | FRONT DRIVE OUTBOARD JOINT SHAFT ASSEMBLY |
| *13 | FRONT AXLE INBOARD JOINT GROMMET | - | - |
| • | Non-reusable part | - | - |

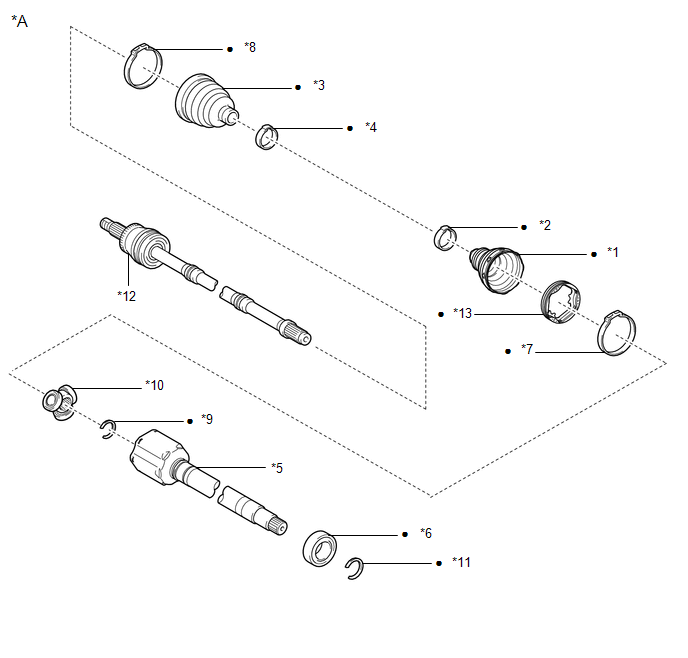

| *A | for RH Side (AWD) | - | - |
| *1 | FRONT AXLE INBOARD JOINT BOOT | *2 | FRONT AXLE INBOARD JOINT BOOT CLAMP |
| *3 | FRONT AXLE OUTBOARD JOINT BOOT | *4 | FRONT AXLE OUTBOARD JOINT BOOT CLAMP |
| *5 | FRONT DRIVE INBOARD JOINT ASSEMBLY | *6 | FRONT DRIVE SHAFT BEARING |
| *7 | FRONT NO. 2 AXLE INBOARD JOINT BOOT CLAMP | *8 | FRONT NO. 2 AXLE OUTBOARD JOINT BOOT CLAMP |
| *9 | SHAFT SNAP RING | *10 | TRIPOD JOINT |
| *11 | DRIVE SHAFT HOLE SNAP RING | *12 | FRONT DRIVE OUTBOARD JOINT SHAFT ASSEMBLY |
| *13 | FRONT AXLE INBOARD JOINT GROMMET | - | - |
| • | Non-reusable part | - | - |
