DTC P0705: Transmission Range Sensor Circuit Malfunction (PRNDL Input) [09/2014 - ]: Wiring Diagram

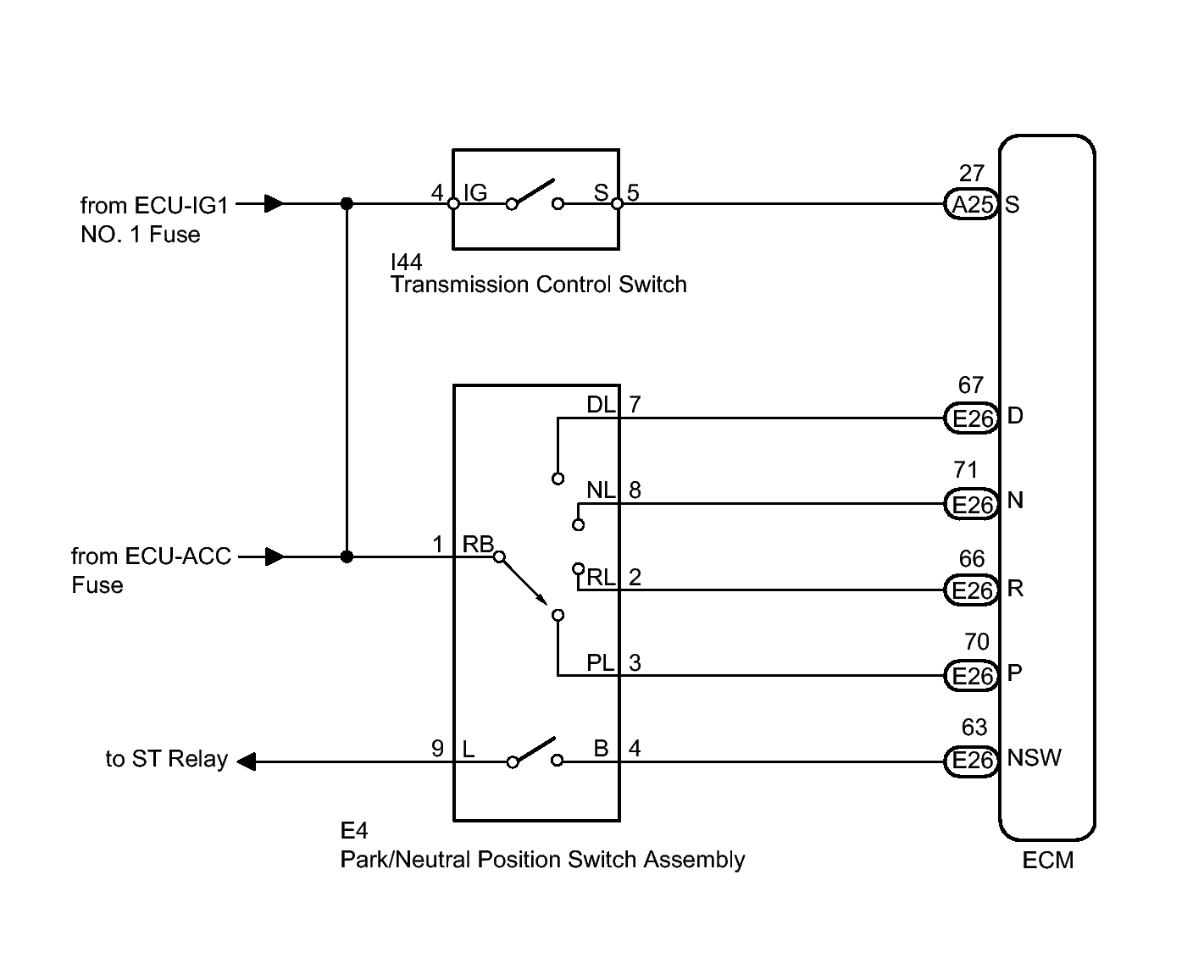

Fig 1: Transmission Range Sensor Wiring Diagram

GTY476689

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
