Automatic Transmission (Diagnostic Codes & Circuit Tests) (U760E) (Except Hybrid)
>>
Automatic Transaxle System
>>
Circuit Tests
>>
Transmission Control Switch Circuit [09/2014 - ]
>>
Wiring Diagram
Transmission Control Switch Circuit [09/2014 - ]: Wiring Diagram

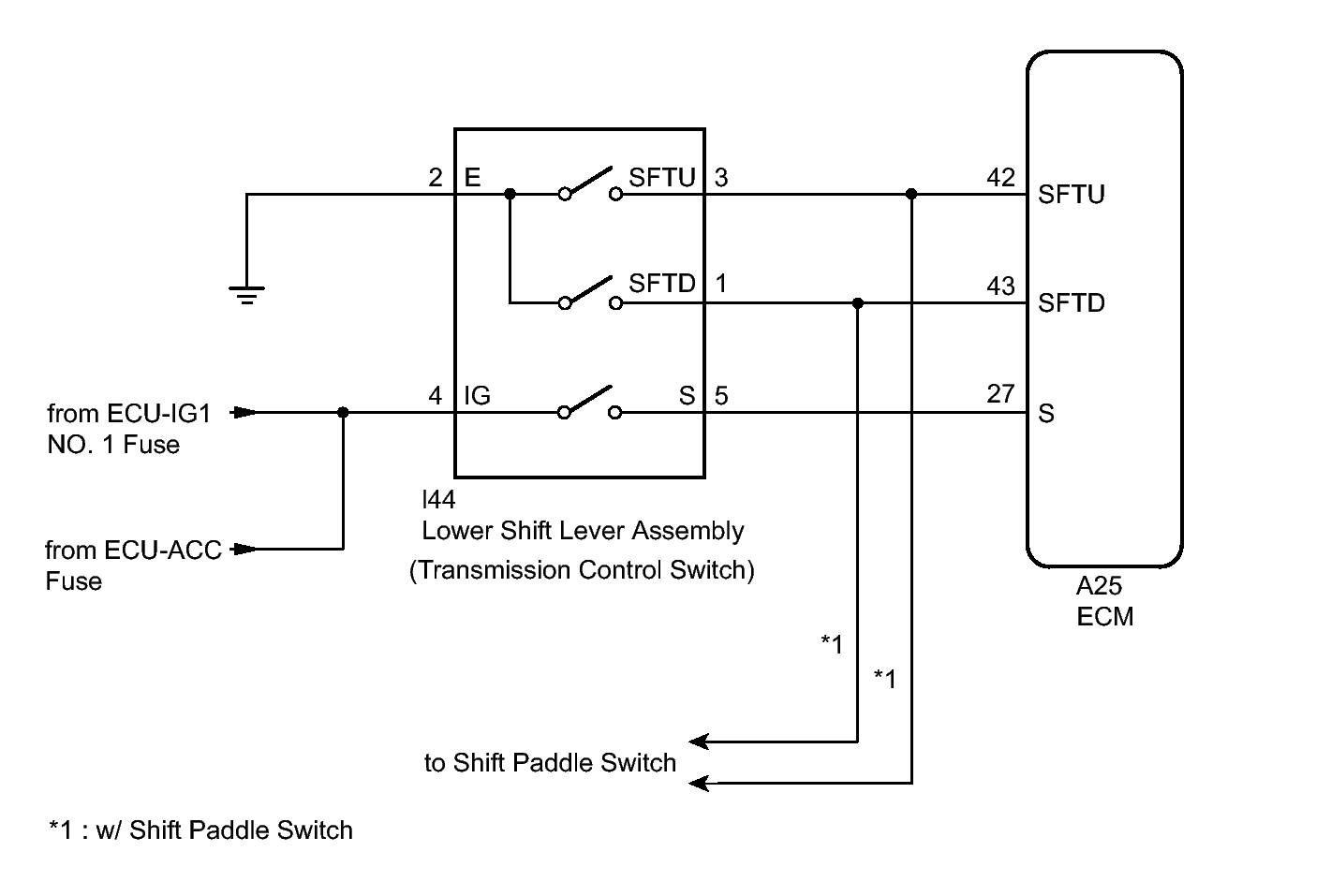

Fig 1: Transmission Control Switch Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
