DTC C2198/98: Initialization Switch (for Test Mode DTC) [09/2014 - ]: Wiring Diagram

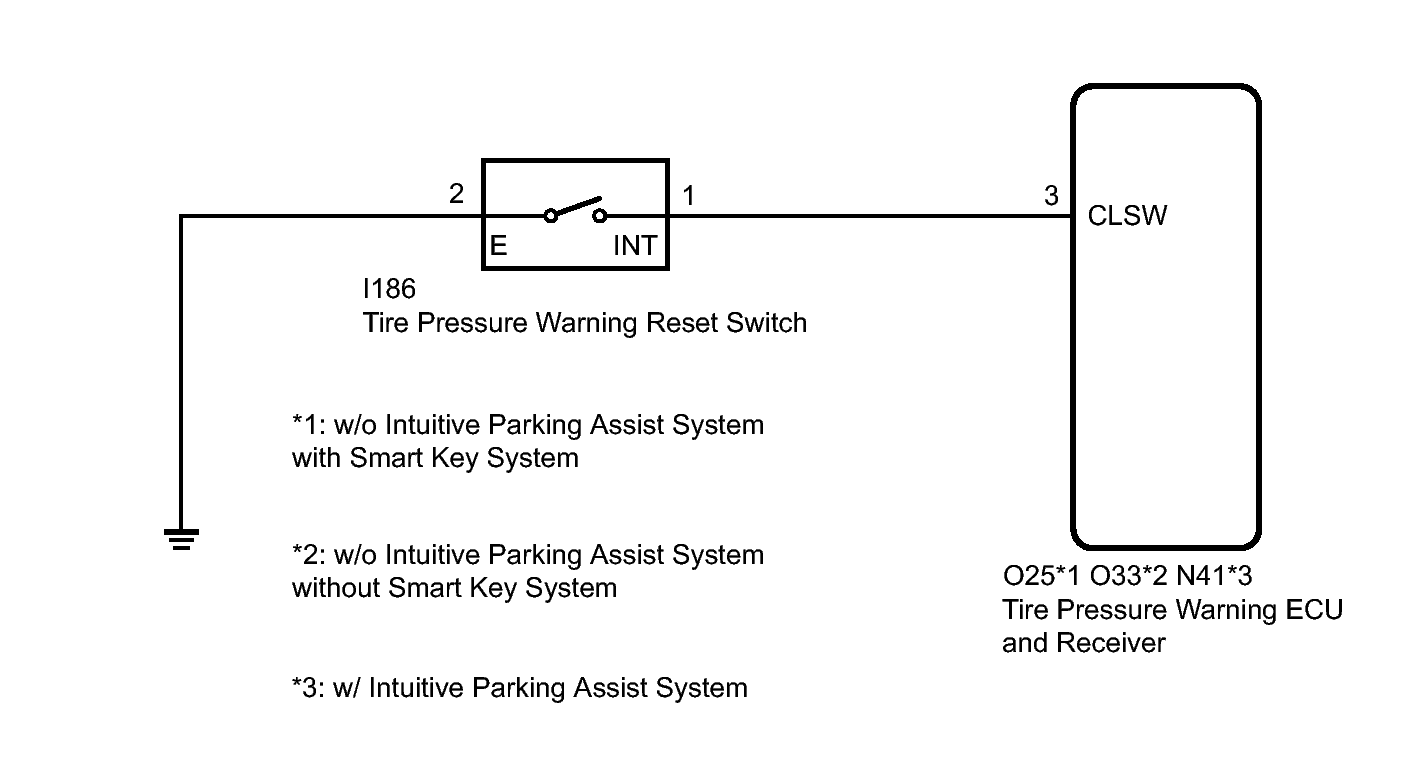

Fig 1: Tire Pressure Warning Reset Switch Wiring Diagram

GTY482275

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
