DTC C2179/79: Tire Pressure Monitor ECU Communication Stop [09/2014 - ]: Wiring Diagram

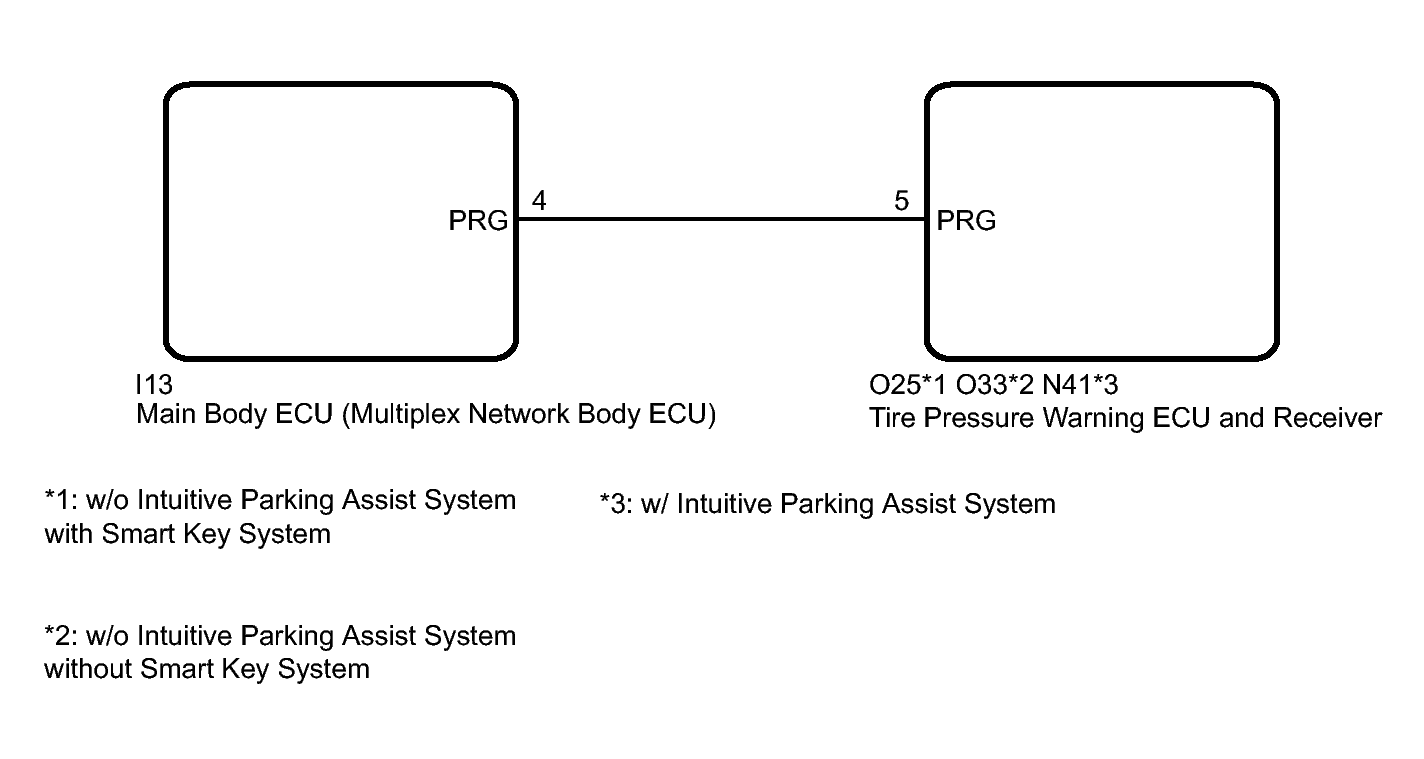

Fig 1: Main Body ECU (Multiplex Network Body ECU) Wiring Diagram

GTY478680

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
