DTC B1247: Tire Pressure Monitor Receiver Communication Stop [09/2014 - ]: Wiring Diagram

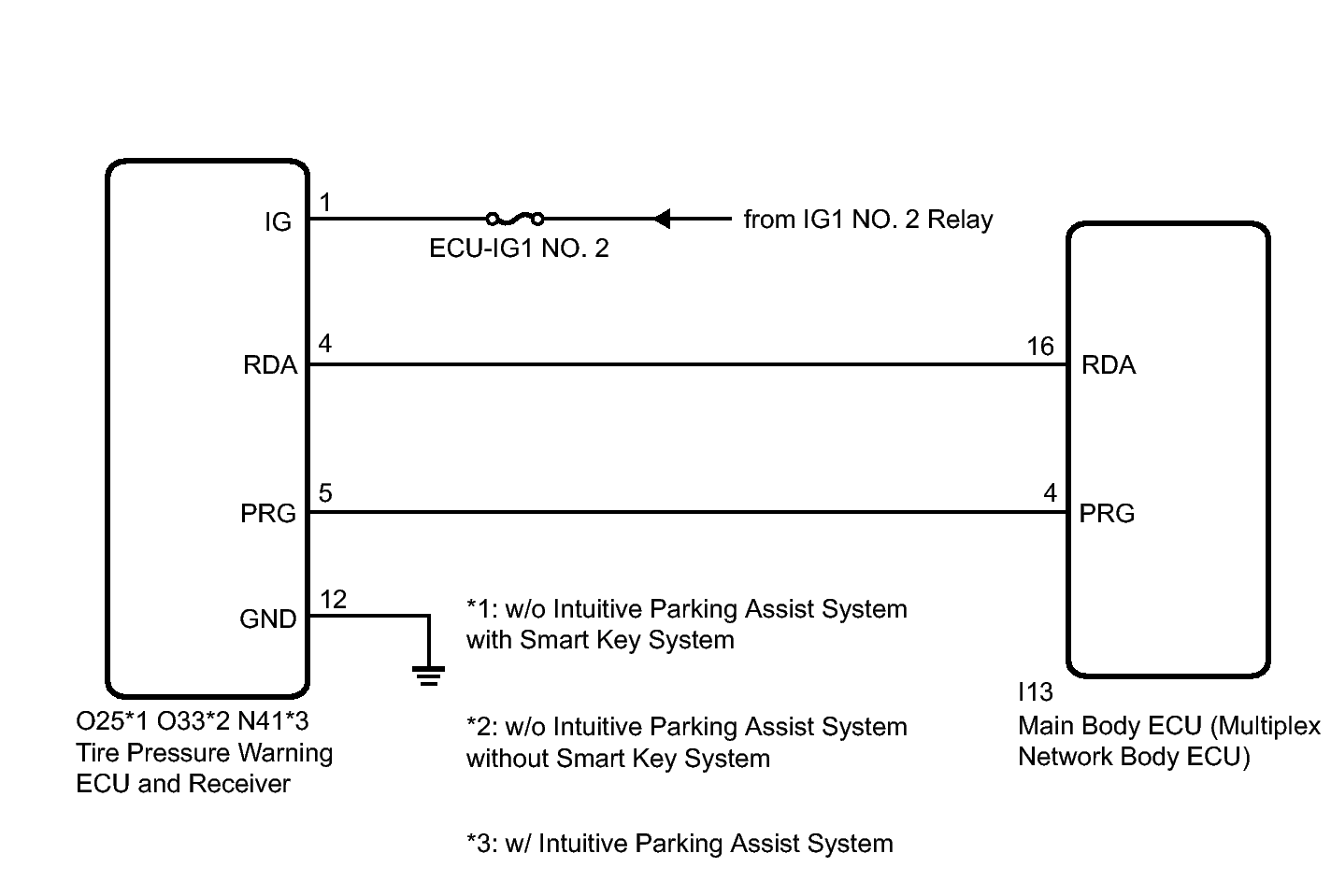

Fig 1: Tire Pressure Warning ECU And Receiver Wiring Diagram

GTY481307

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
