Tire Pressure Warning Light Circuit [09/2014 - ]: Wiring Diagram

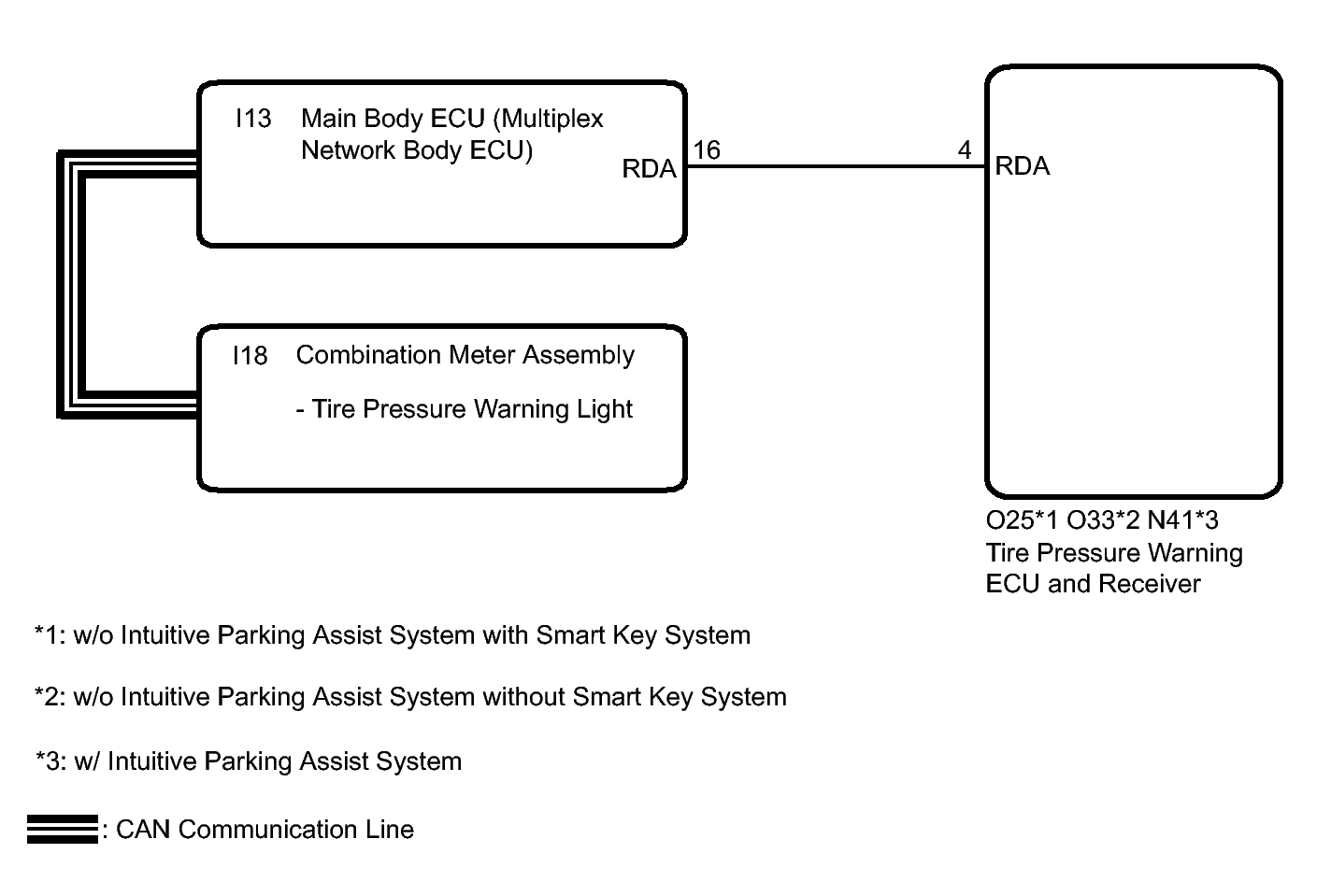

Fig 1: Tire Pressure Warning Light Wiring Diagram

GTY478312

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
