TC and CG Terminal Circuit [09/2014 - ]: Wiring Diagram

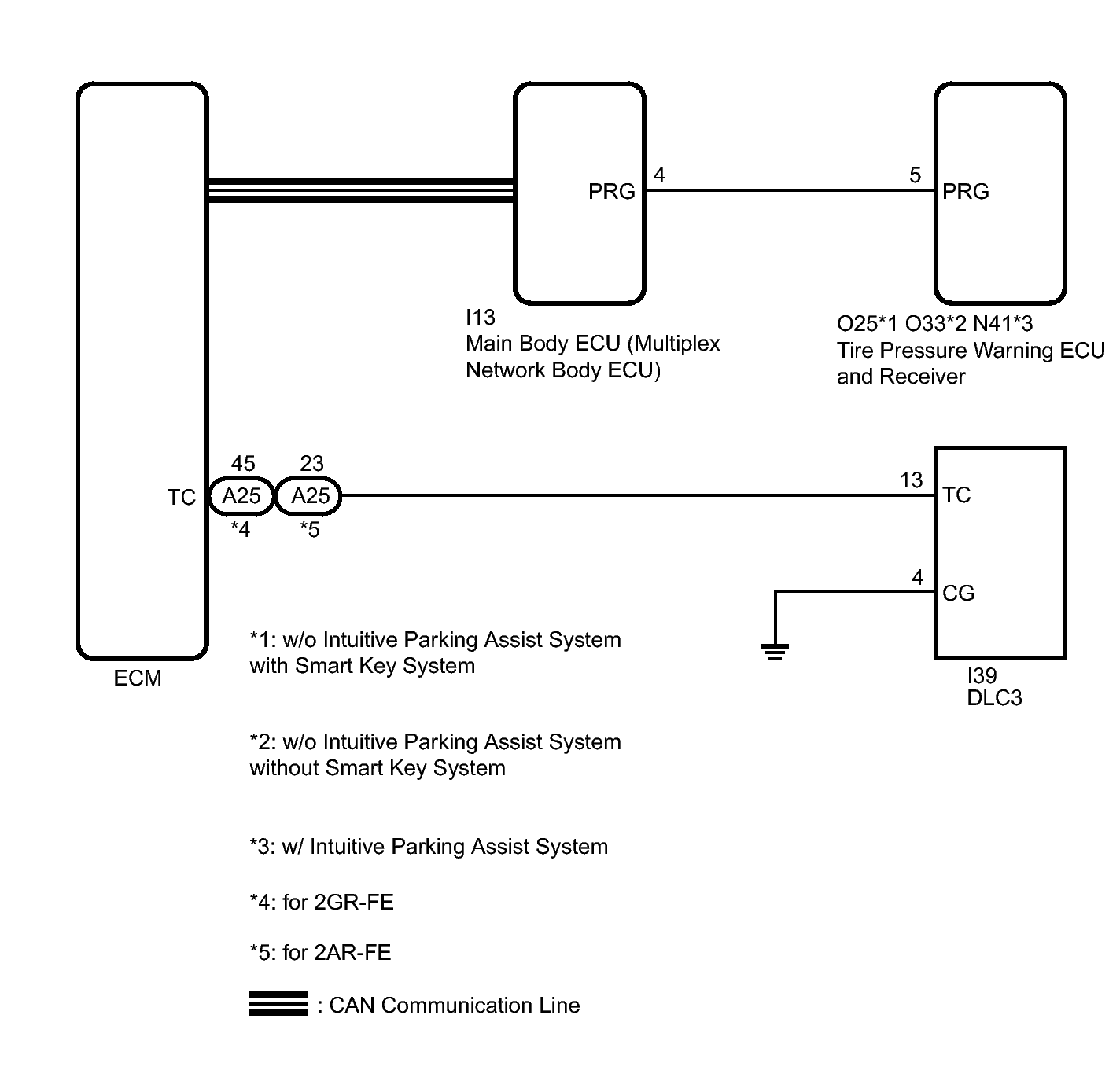

Fig 1: TC and CG Terminal Wiring Diagram

GTY475458

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
