ECU Power Source Circuit [09/2014 - ]: Wiring Diagram

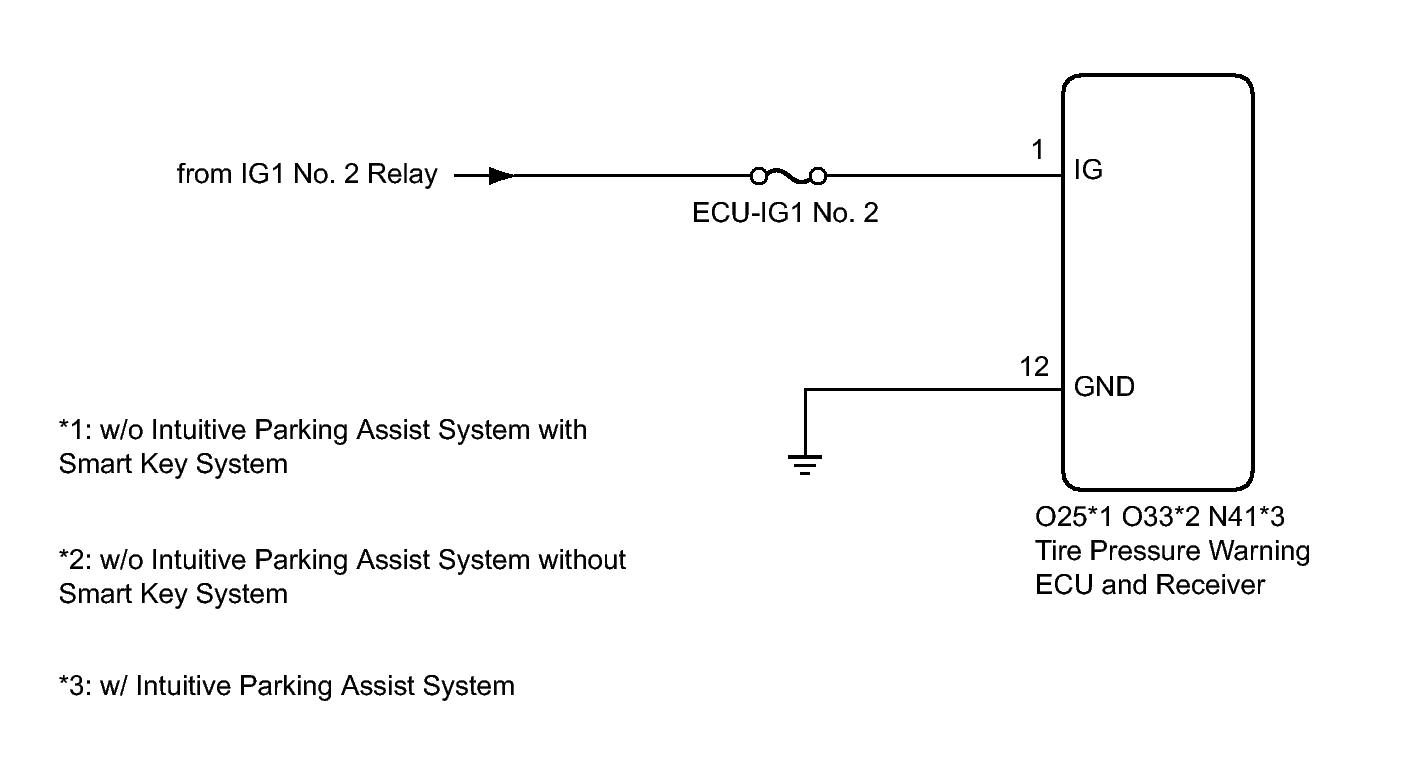

Fig 1: ECU Power Source Wiring Diagram

GTY477343

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
