Components [09/2014 - ]: Illustration

Fig 1: Identifying Rear Suspension Member Replacement Components With Torque Specifications (1 Of 5)
GTY481572Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

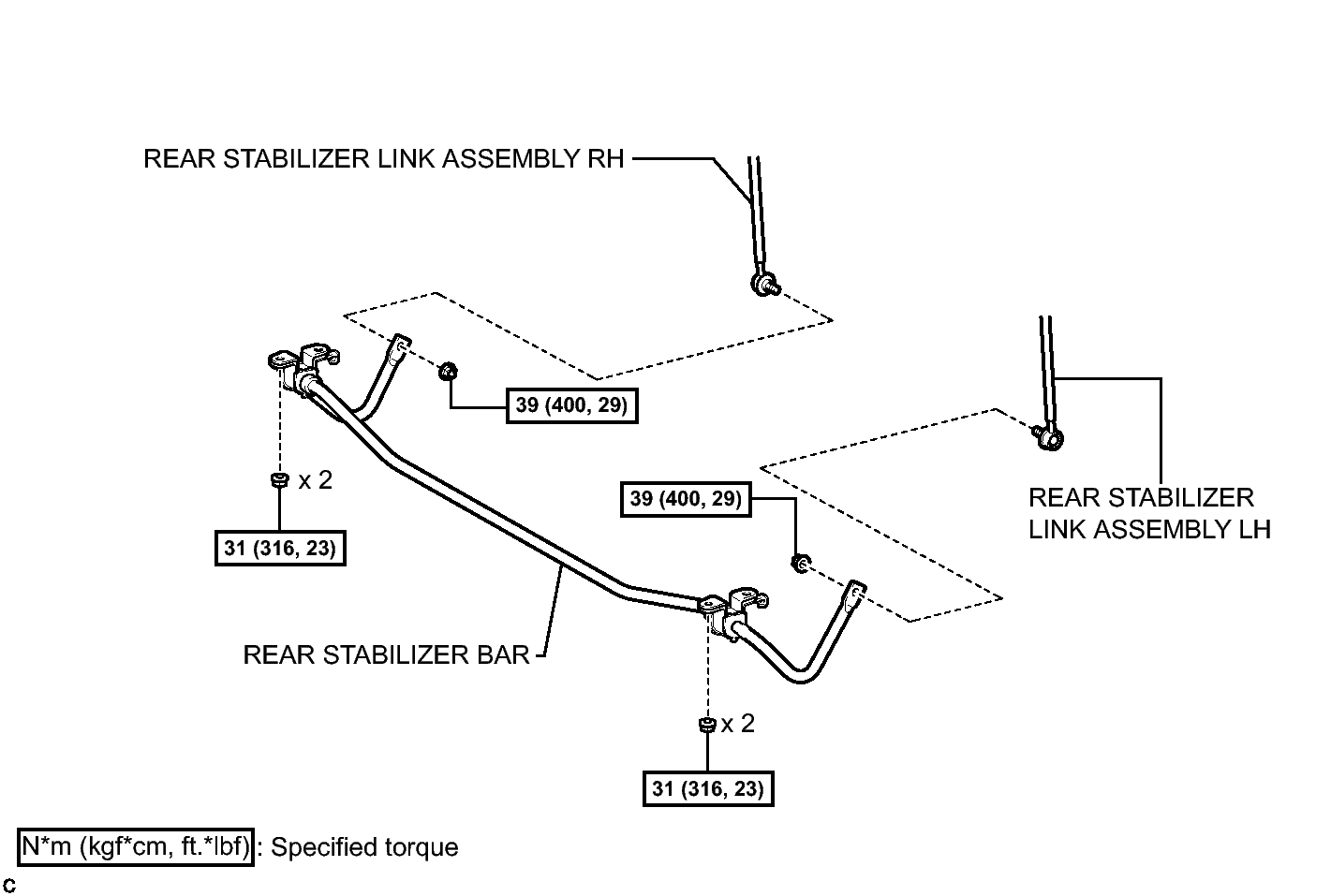

Fig 1: Identifying Rear Suspension Member Replacement Components With Torque Specifications (2 Of 5)
GTY481719Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Rear Suspension Member Replacement Components With Torque Specifications (3 Of 5)
GTY323273Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Rear Suspension Member Replacement Components With Torque Specifications (4 Of 5)
GTY316922Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Rear Suspension Member Replacement Components With Torque Specifications (5 Of 5)
GTY318016Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
