Components [09/2014 - ]: Illustration

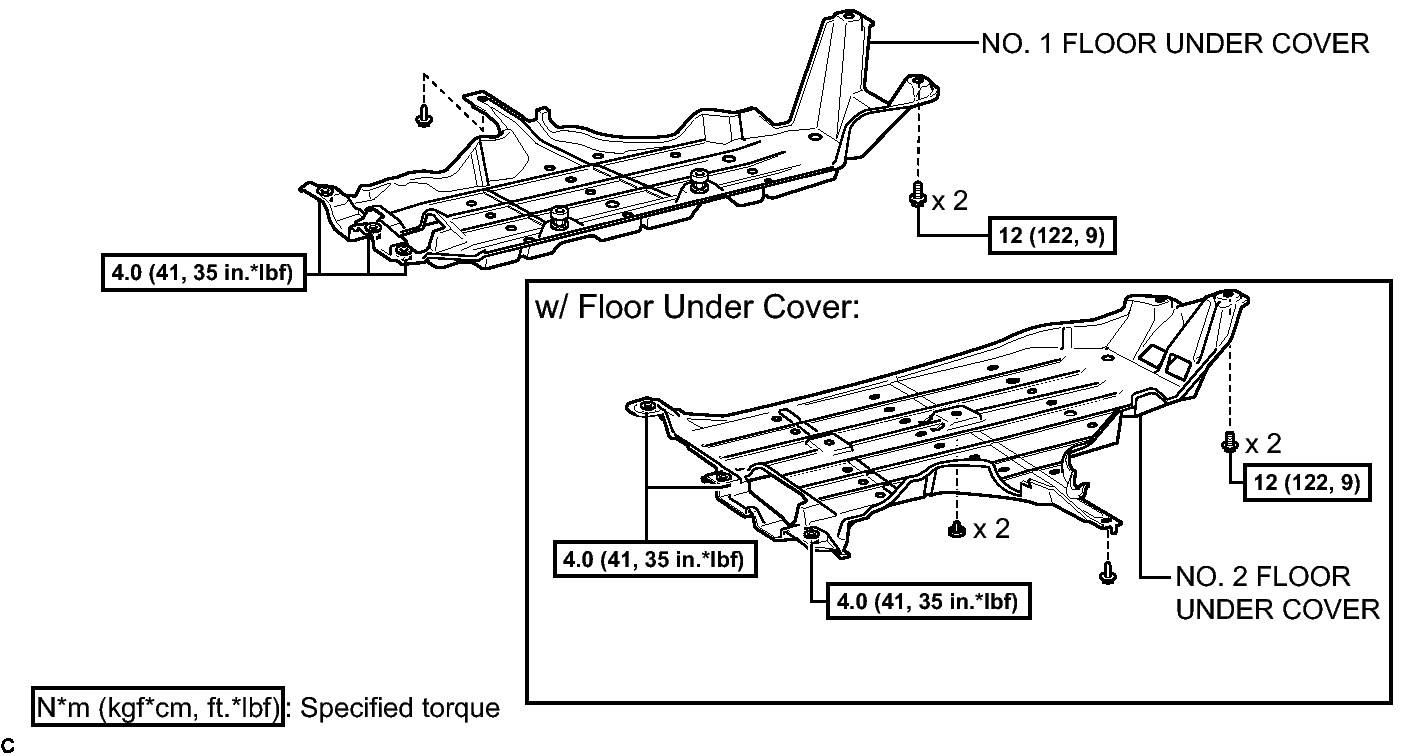

Fig 1: Rear Stabilizer Bar Replacement Components With Torque Specifications (1 Of 2)
GTY481572Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

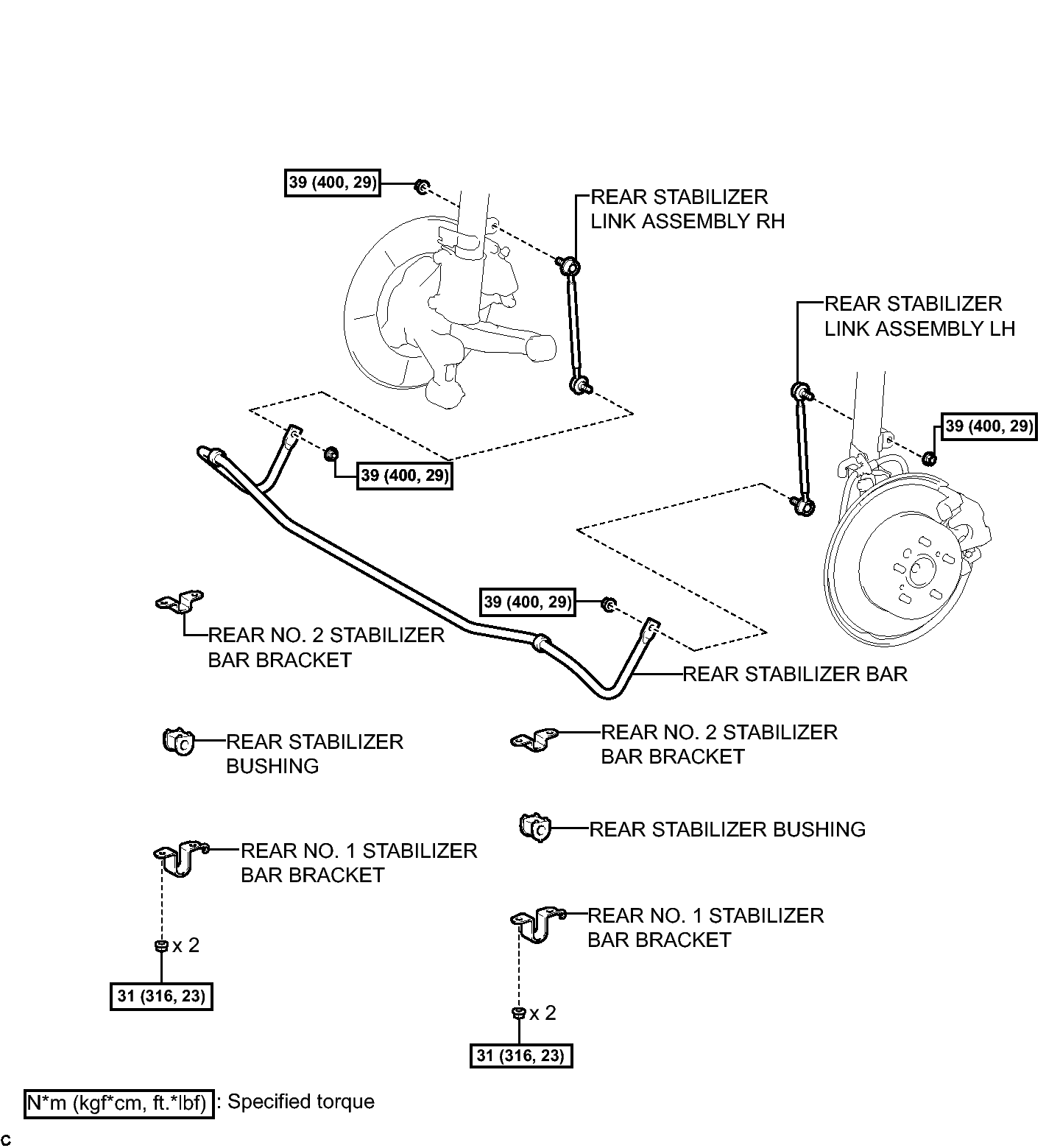

Fig 1: Rear Stabilizer Bar Replacement Components With Torque Specifications (2 Of 2)
GTY476644Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
