Removal [09/2014 - ]

HINT:

• Use the same procedure for the RH side and LH side.
• The procedure listed below is for the LH side.
• The rear No. 2 suspension arm assembly can be removed directly from the vehicle.

1. REMOVE REAR WHEELS
2. REMOVE REAR HEIGHT CONTROL SENSOR SUB-ASSEMBLY (w/ Height Control Sensor)

   Refer to REMOVAL [09/2014 - ]

3. SEPARATE REAR NO. 2 SUSPENSION ARM ASSEMBLY
   1. Remove the bolt and nut, and separate the rear No. 2 suspension arm assembly (outer side) from the rear axle carrier sub-assembly.
      Fig 1: Identifying Rear No. 2 Suspension Arm Assembly Bolt And Nut

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE: When removing the bolt, keep the nut from rotating.
4. REMOVE REAR NO. 2 SUSPENSION ARM ASSEMBLY
   1. Remove the bolt and rear No. 2 suspension arm assembly from the rear suspension member sub-assembly.
      Fig 2: Tightening Rear No. 2 Suspension Arm Assembly Bolt

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. REMOVE REAR SUSPENSION MEMBER SUB-ASSEMBLY

   Refer to REMOVAL [09/2014 - ]

6. REMOVE REAR NO. 1 SUSPENSION ARM ASSEMBLY
   1. Remove the bolt and rear No. 1 suspension arm assembly from the rear suspension member sub-assembly.

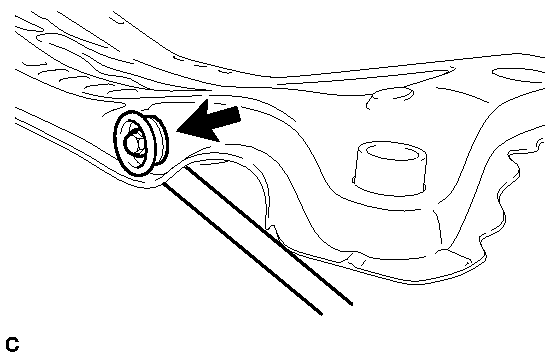

      Fig 3: Identifying Rear No. 1 Suspension Arm Assembly Bolt

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
