Removal [09/2014 - ]

PRECAUTION
NOTE: After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work. Refer to PRECAUTION [09/2014 - ] .
DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
WARNING: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

NOTE: When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION [09/2014 - ] .
REMOVE REAR SEAT CUSHION ASSEMBLY . Refer to REMOVAL [09/2014 - ] - Step 3
REMOVE REAR SEAT CUSHION LOCK HOOK . Refer to REMOVAL [09/2014 - ] - Step 4
REMOVE INNER LUGGAGE COMPARTMENT TRIM PAD . Refer to REMOVAL [09/2014 - ] - Step 5
REMOVE REAR SEATBACK ASSEMBLY LH . Refer to REMOVAL [09/2014 - ] - Step 6
REMOVE REAR SEATBACK ASSEMBLY RH . Refer to REMOVAL [09/2014 - ] - Step 7
REMOVE REAR SIDE SEATBACK ASSEMBLY LH . Refer to REMOVAL [09/2014 - ] - Step 8
REMOVE REAR SIDE SEATBACK ASSEMBLY RH . Refer to REMOVAL [09/2014 - ] - Step 9
REMOVE CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY LH
1. Remove the 2 nuts and child restraint seat anchor bracket sub-assembly LH.

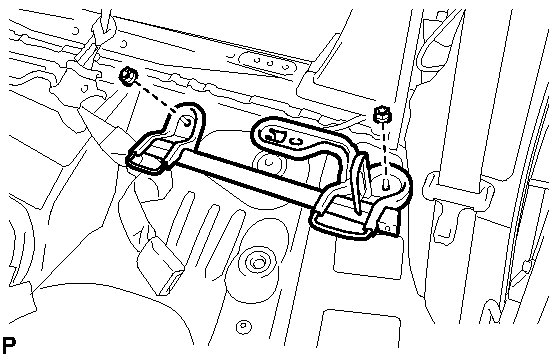

  Fig 1: Identifying Child Restraint Seat Anchor Bracket Sub-Assembly LH Fasteners
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY RH
1. Remove the 2 nuts and child restraint seat anchor bracket sub-assembly RH.

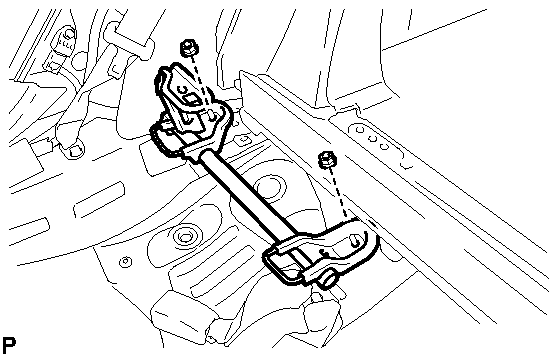

  Fig 2: Identifying Child Restraint Seat Anchor Bracket Sub-Assembly RH Fasteners
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
