TC and CG Terminal Circuit [09/2014 - ]: Wiring Diagram

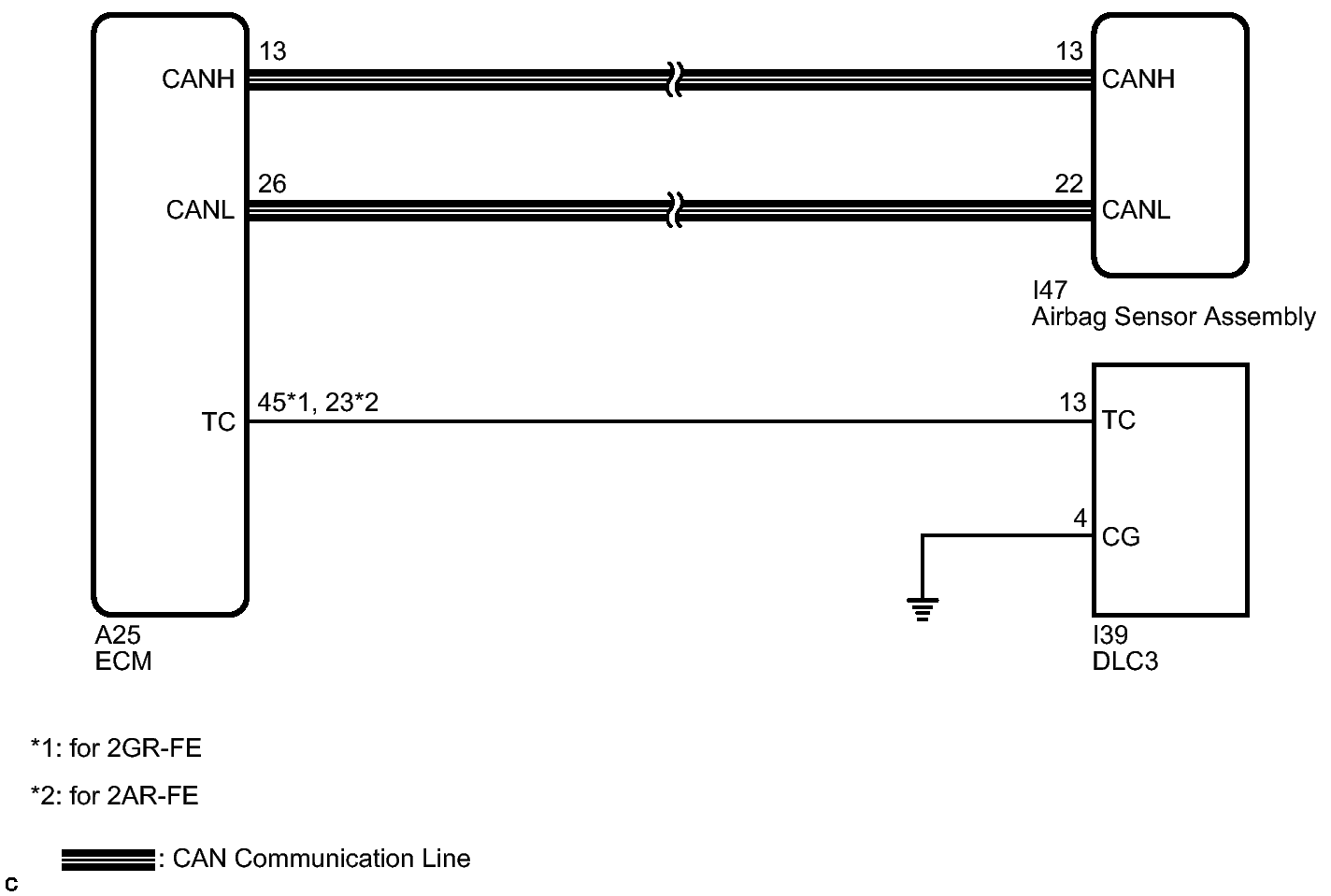

Fig 1: Identifying Tc And Cg Terminal Wiring Diagram

GTY476962

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
