Section 61 (Hybrid Battery System - (Diagnostic Codes P0A7F-123 - U029A-123) (Hybrid))
>>
Hybrid Battery System
>>
DTC P0AFC-123: Hybrid Battery Pack Sensor Module [09/2014 - ]
>>
Wiring Diagram
DTC P0AFC-123: Hybrid Battery Pack Sensor Module [09/2014 - ]: Wiring Diagram
WARNING:
This page is about a different variant/trim than selected.

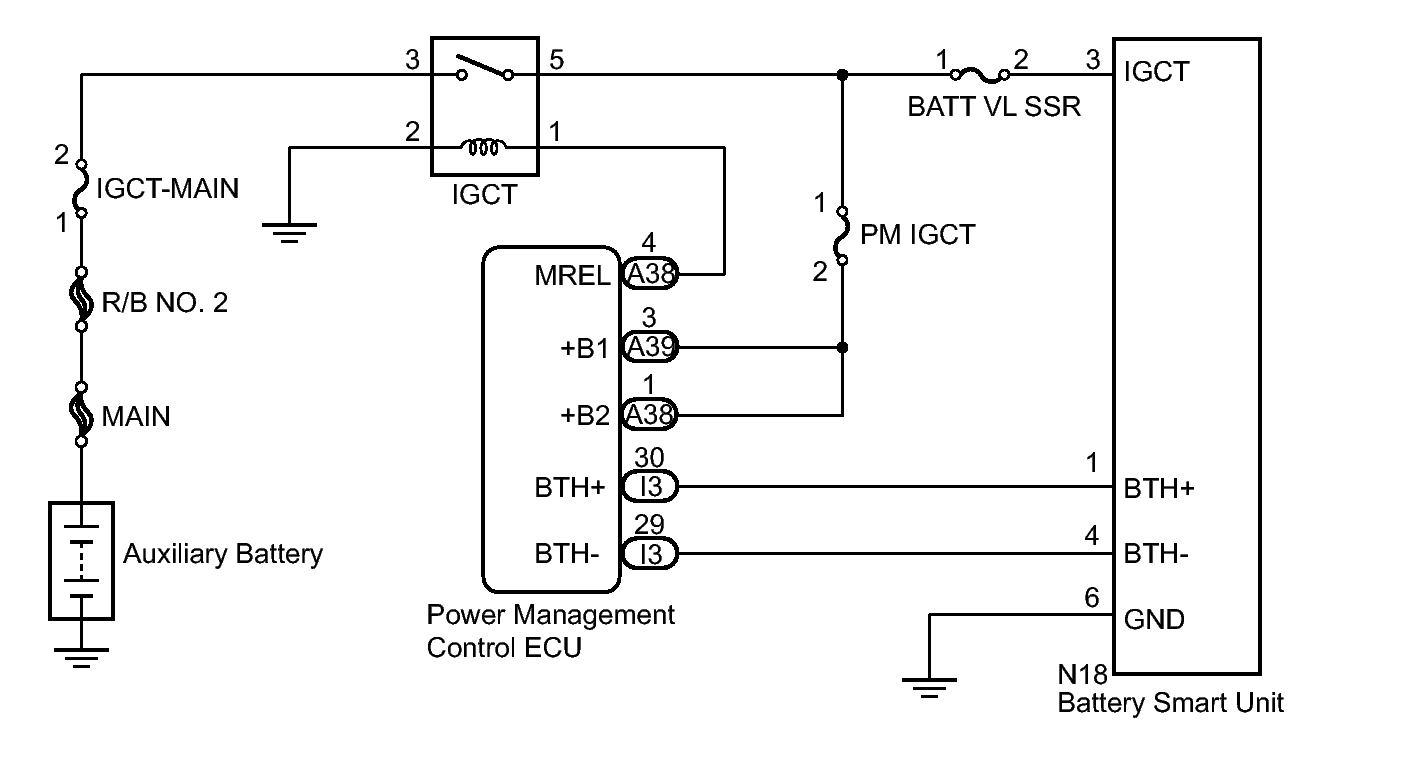

Fig 1: Hybrid Battery Pack Sensor Module Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
