Parts Location [09/2014 - ]: Illustration

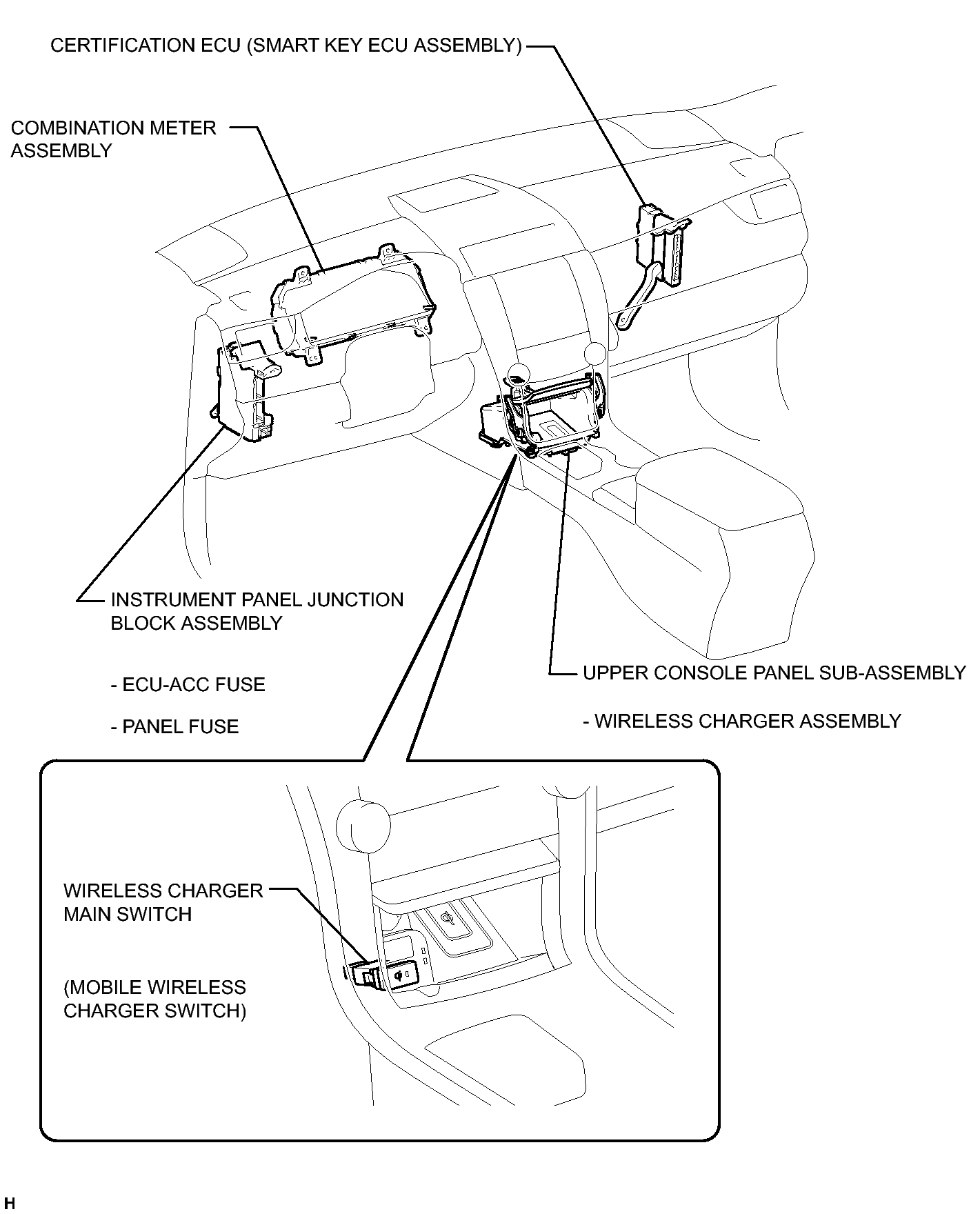

Fig 1: Wireless Charging System Components Location

GTY481533

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
