Components [09/2014 - ]: Illustration

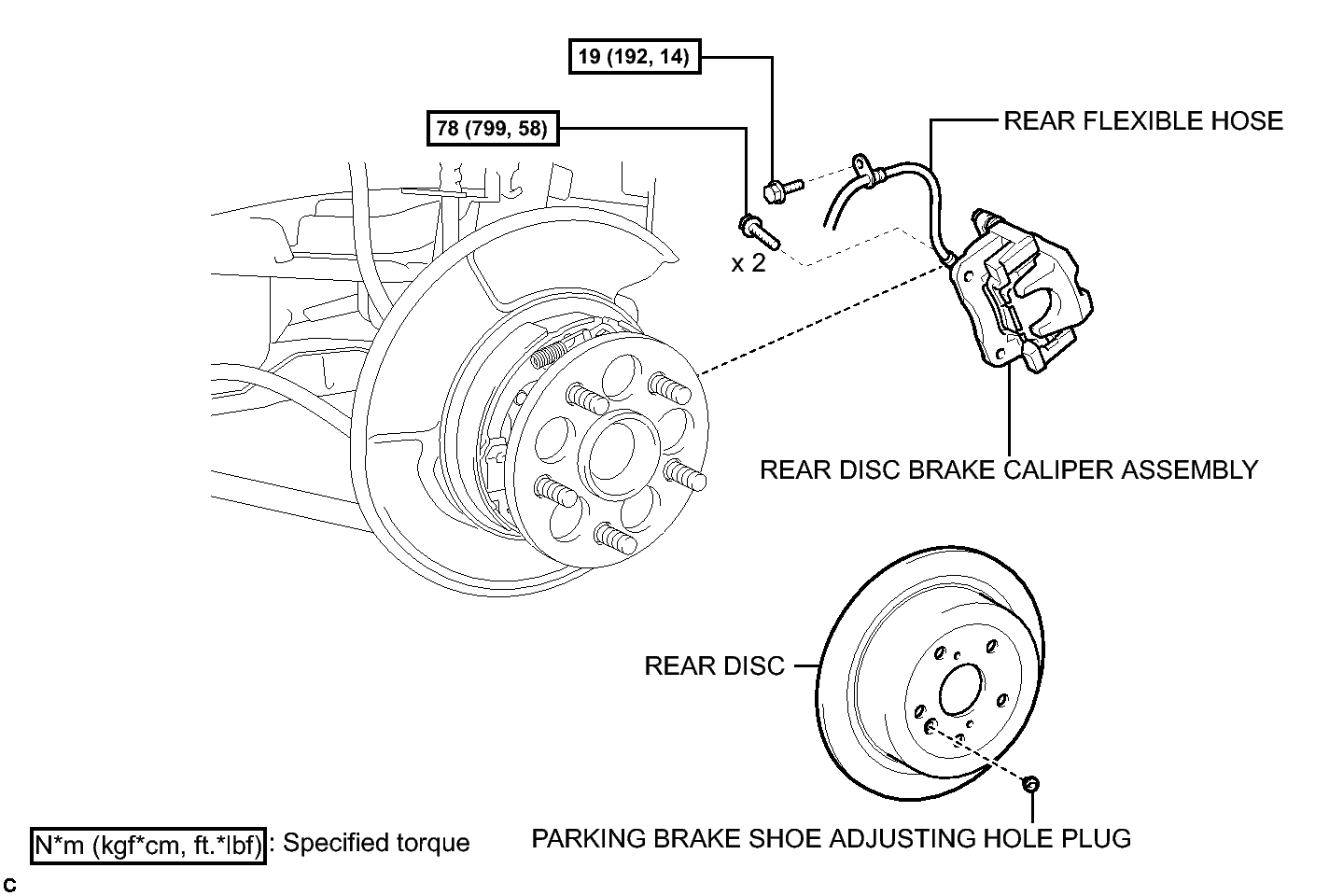

Fig 1: Identifying Parking Brake Assembly Replacement Components With Torque Specifications (1 Of 3)
GTY320148Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

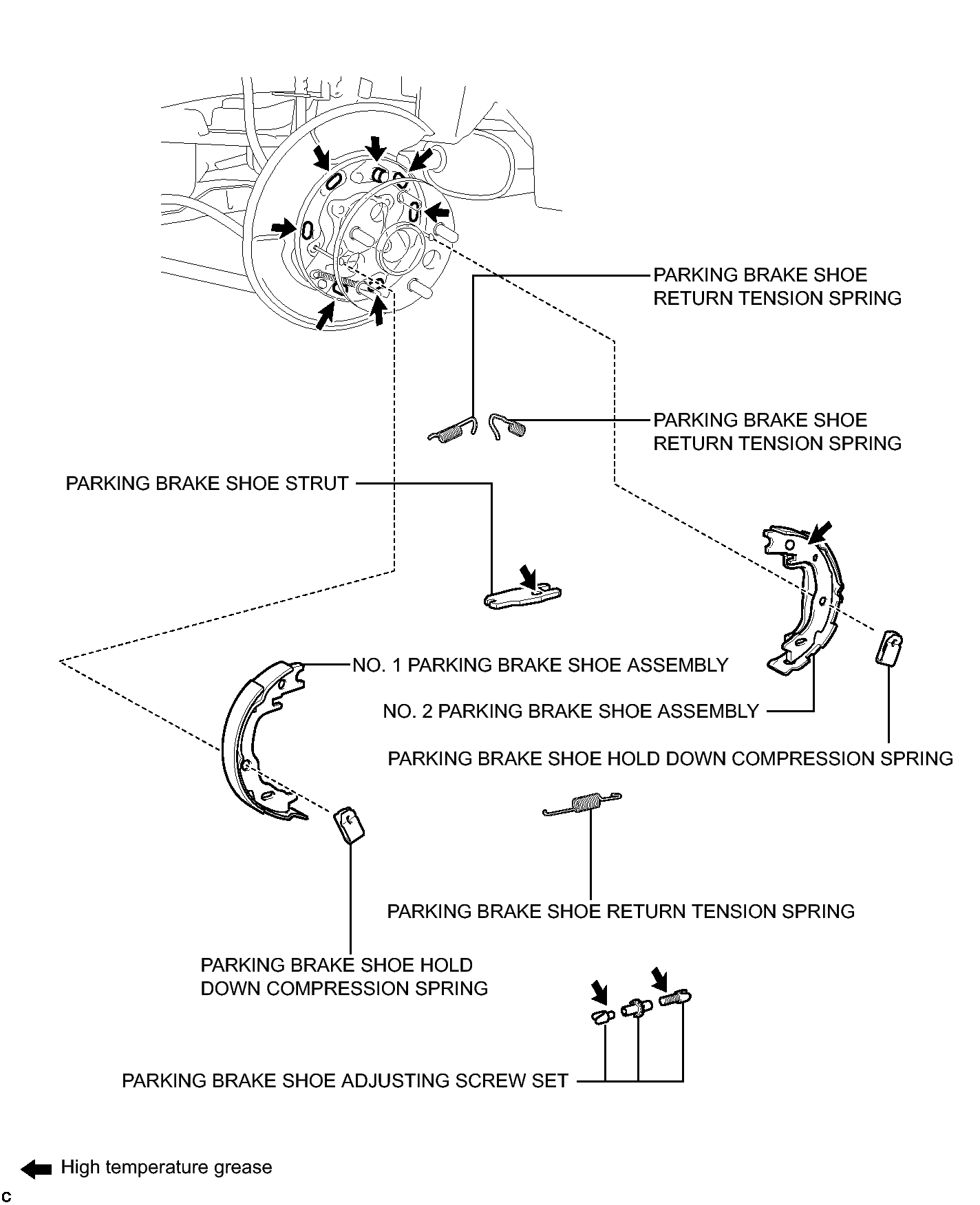

Fig 1: Identifying Parking Brake Assembly Replacement Components With Torque Specifications (2 Of 3)
GTY316770Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

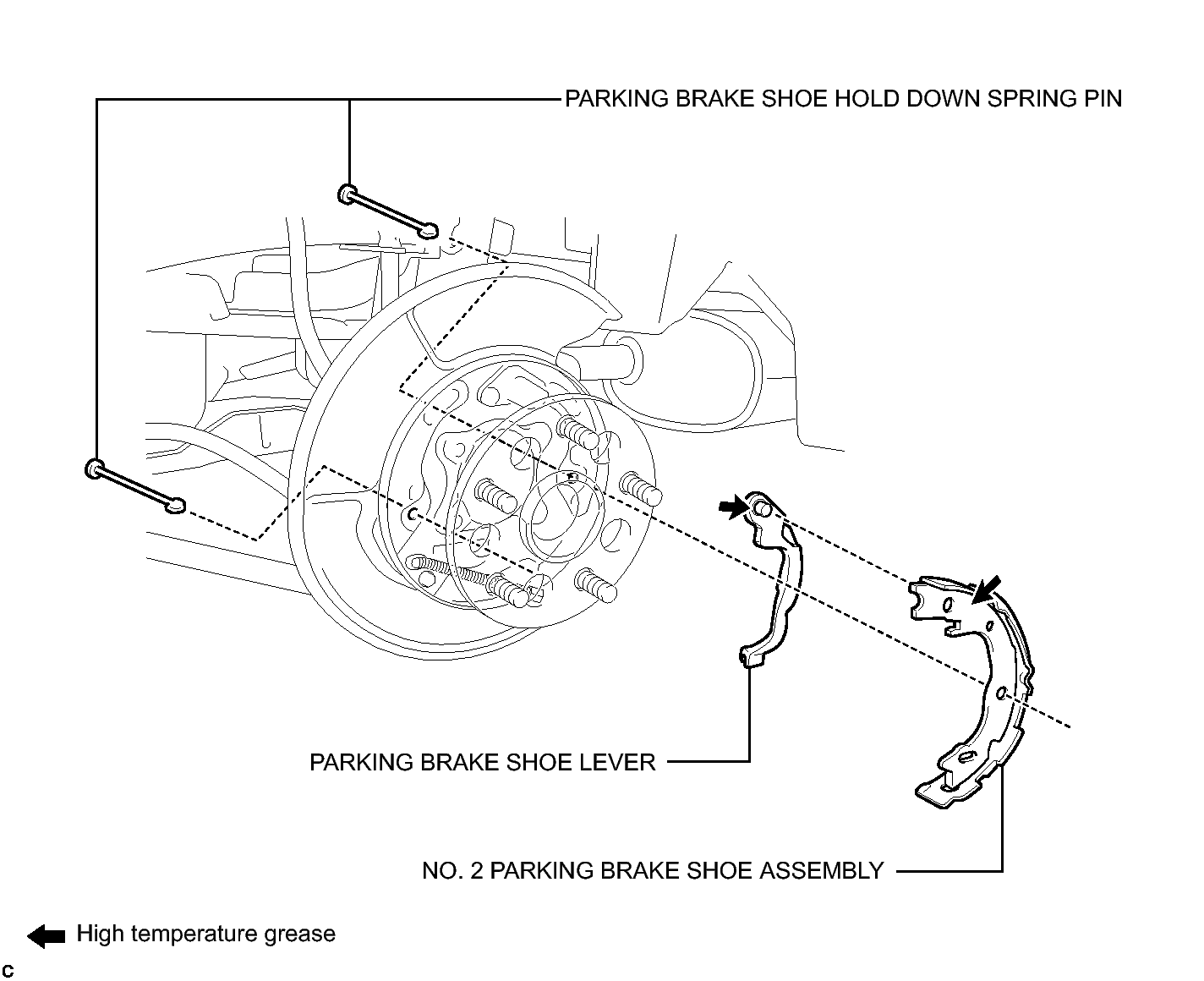

Fig 1: Identifying Parking Brake Assembly Replacement Components With Torque Specifications (3 Of 3)
GTY320796Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
