Components [09/2014 - ]: Illustration

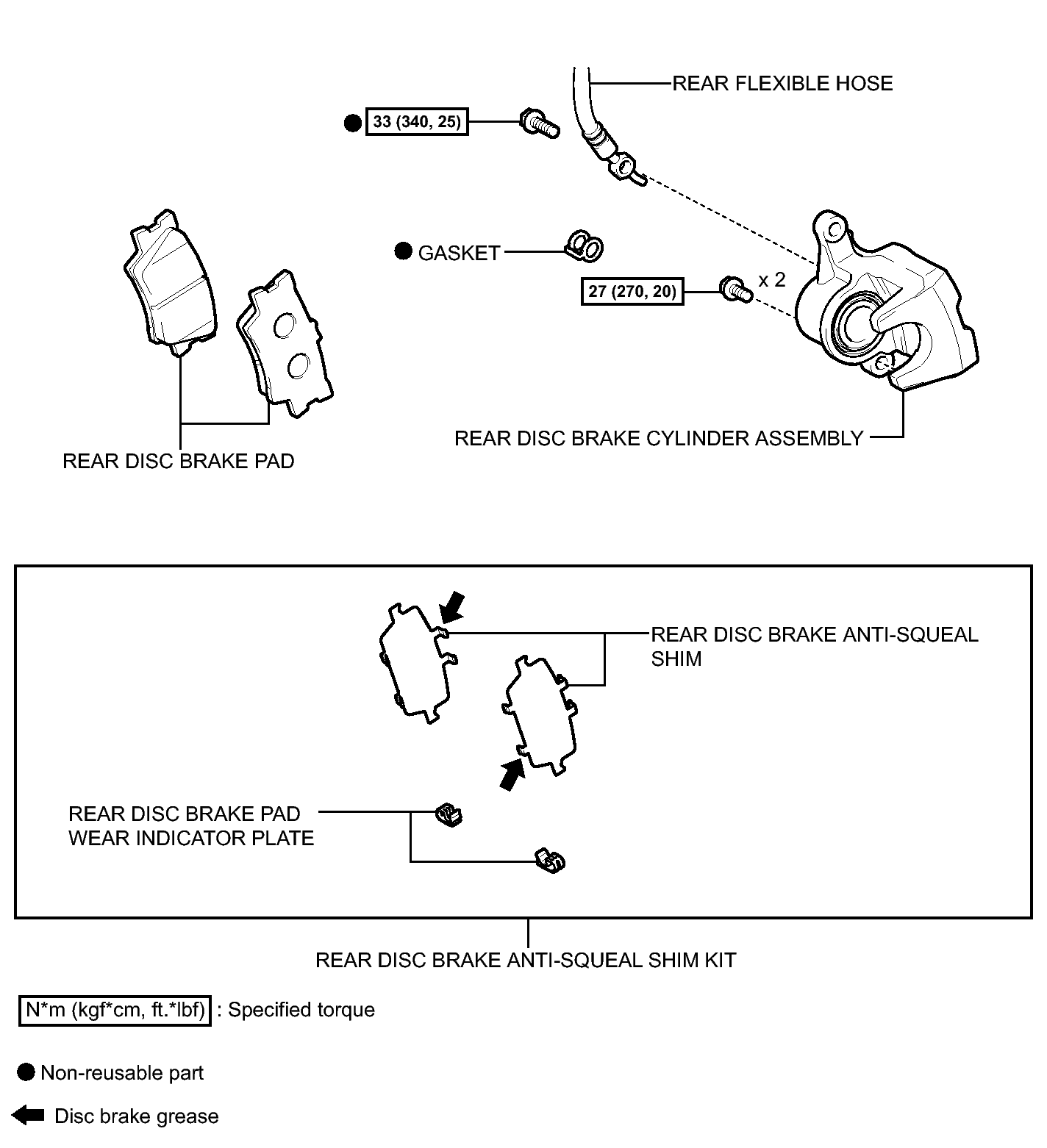

Fig 1: Identifying Rear Brake Replacement Components With Torque Specifications (1 Of 3)
GTY427098Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

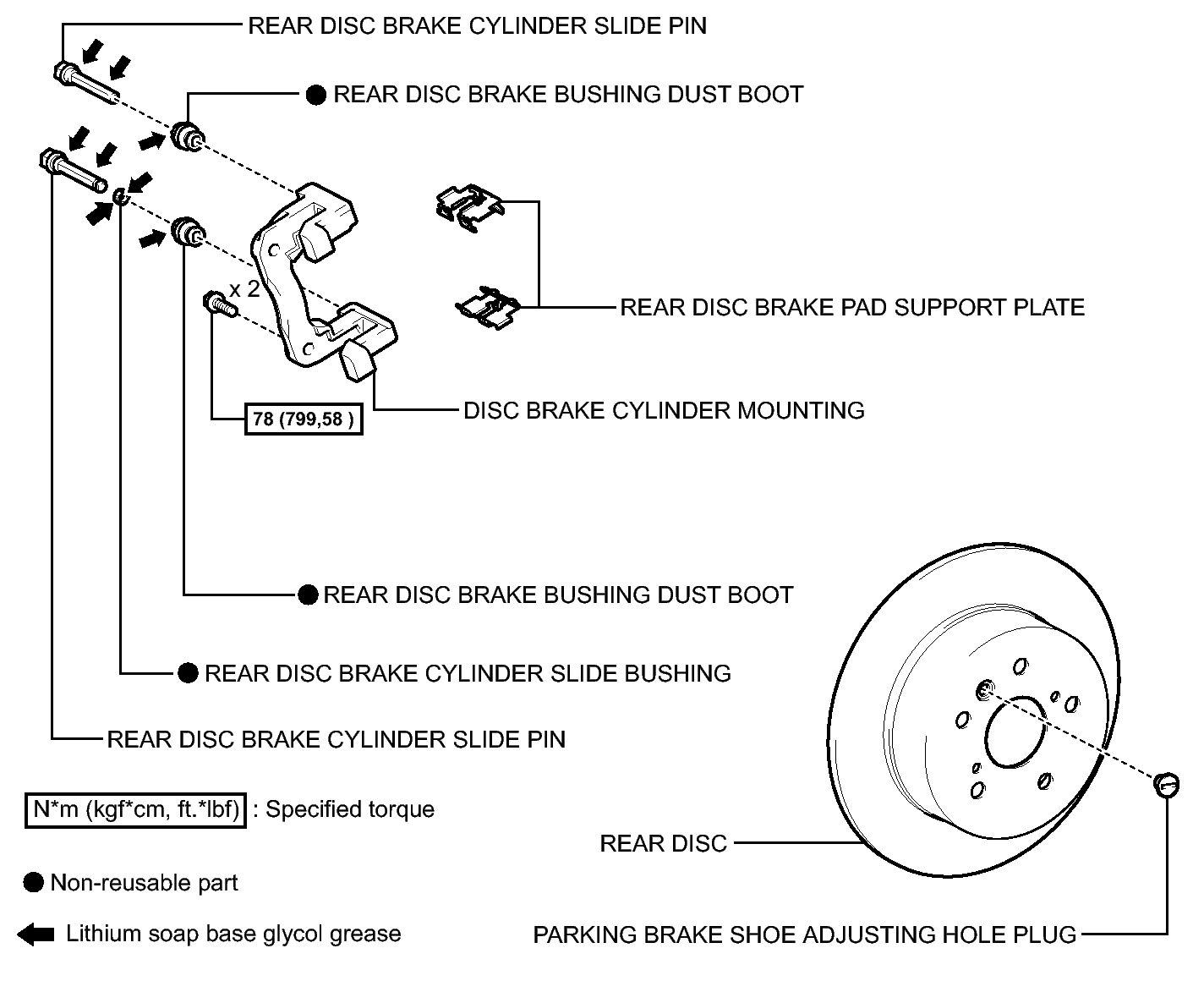

Fig 1: Identifying Rear Brake Replacement Components With Torque Specifications (2 Of 3)
GTY479440Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Rear Brake Replacement Components With Torque Specifications (3 Of 3)
GTY320573Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
