Components [09/2014 - ]: Illustration

Fig 1: Identifying Brake Master Cylinder Replacement Components With Torque Specifications (1 Of 5)
GTY321976Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

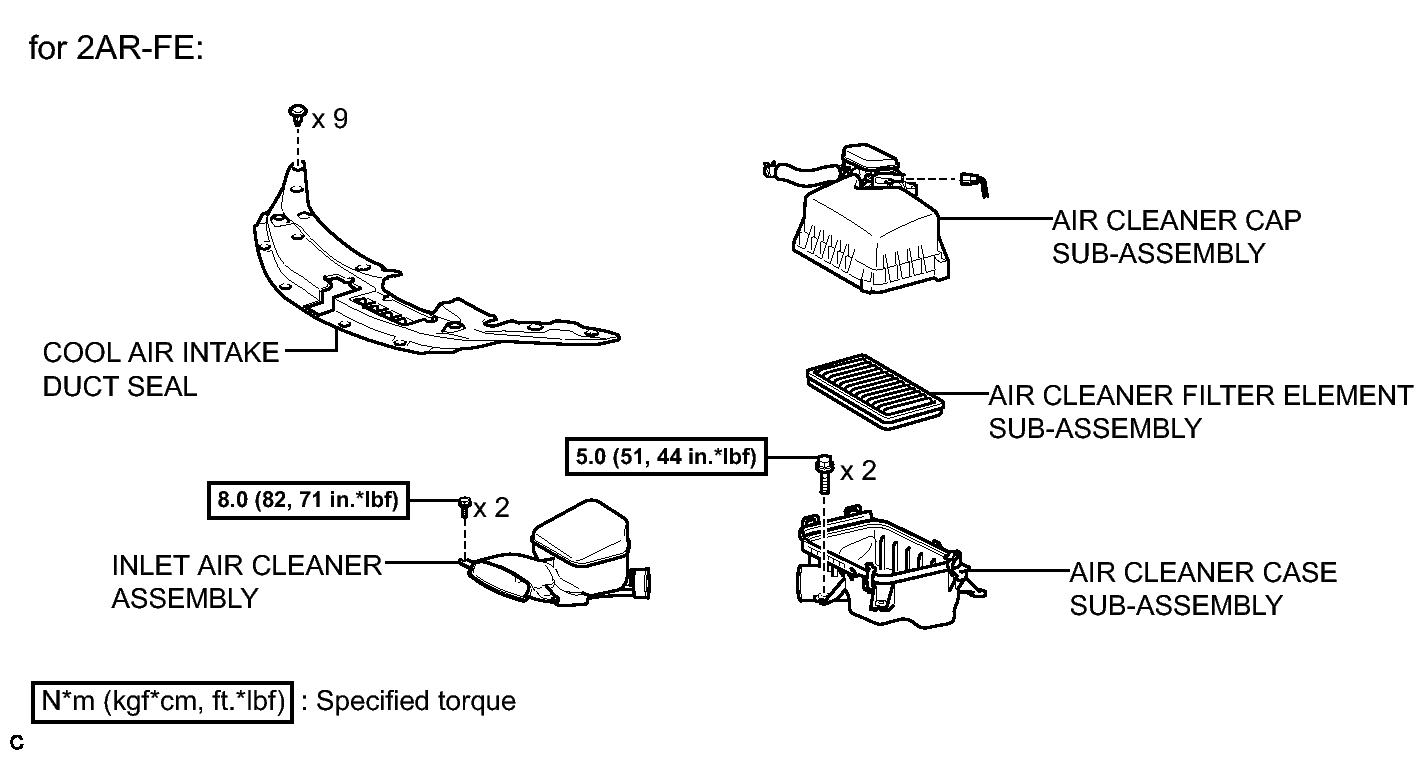

Fig 1: Identifying Brake Master Cylinder Replacement Components With Torque Specifications (2 Of 5)
GTY472055Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

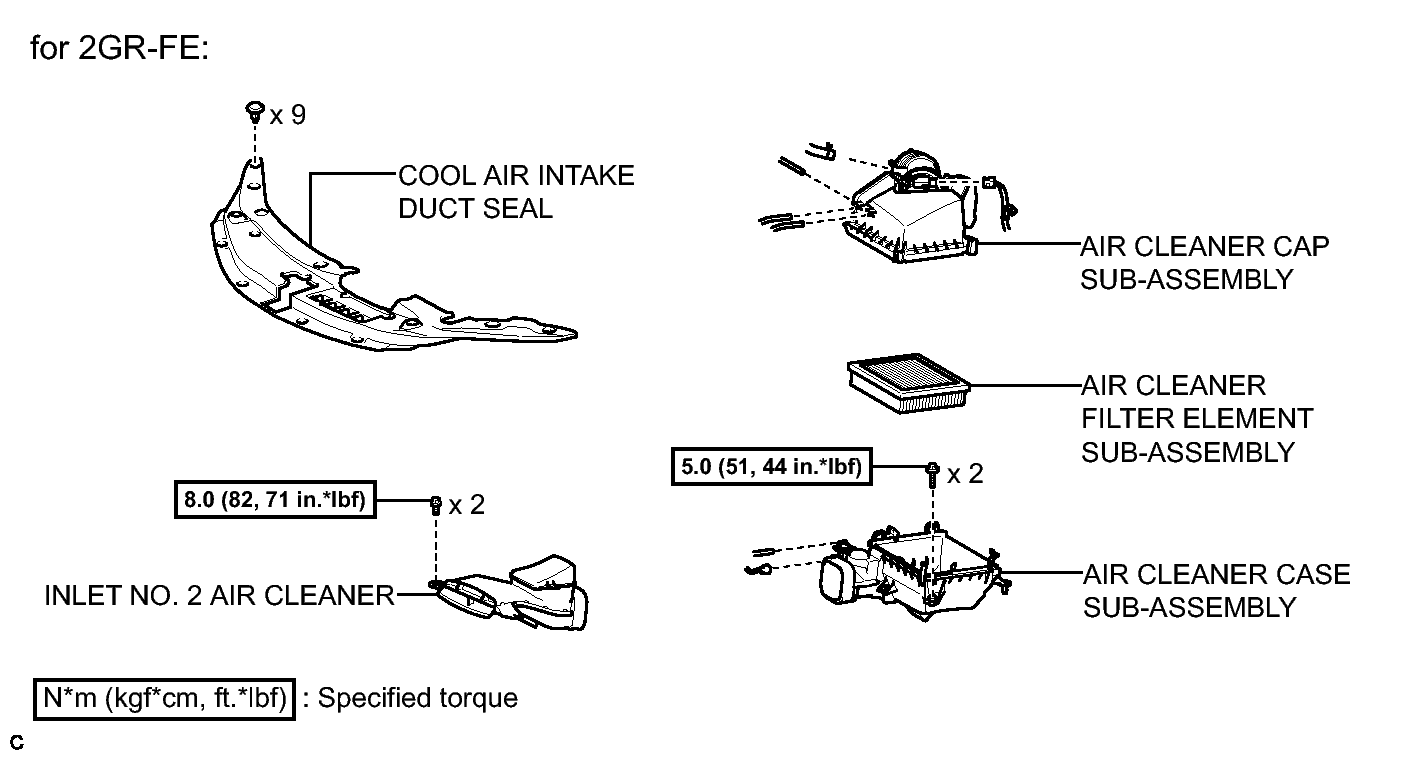

Fig 1: Identifying Brake Master Cylinder Replacement Components With Torque Specifications (3 Of 5)
GTY473182Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

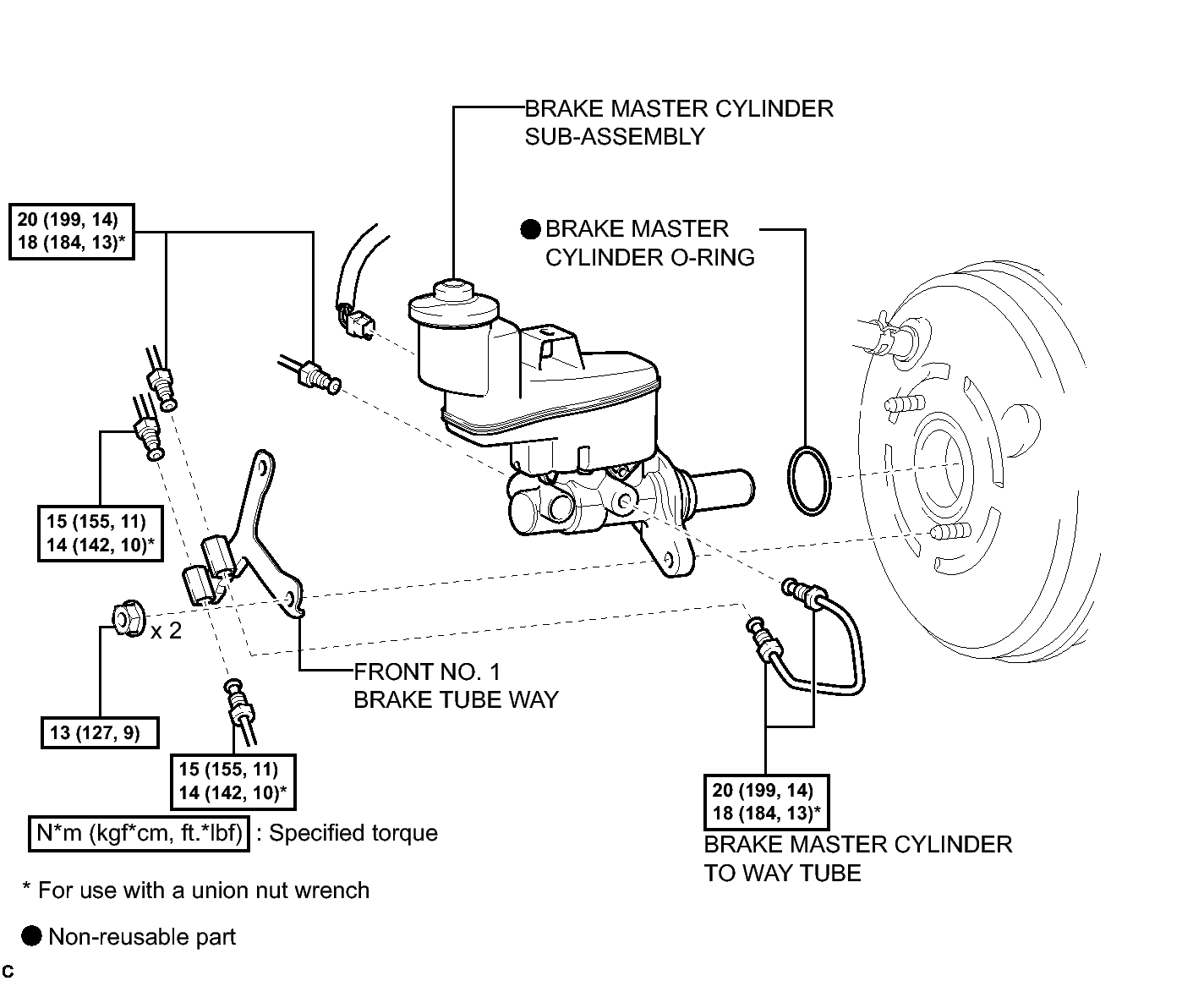

Fig 1: Identifying Brake Master Cylinder Replacement Components With Torque Specifications (4 Of 5)
GTY473383Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Brake Master Cylinder Replacement Components With Torque Specifications (5 Of 5)
GTY315194Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
