Components [09/2014 - ]: Illustration

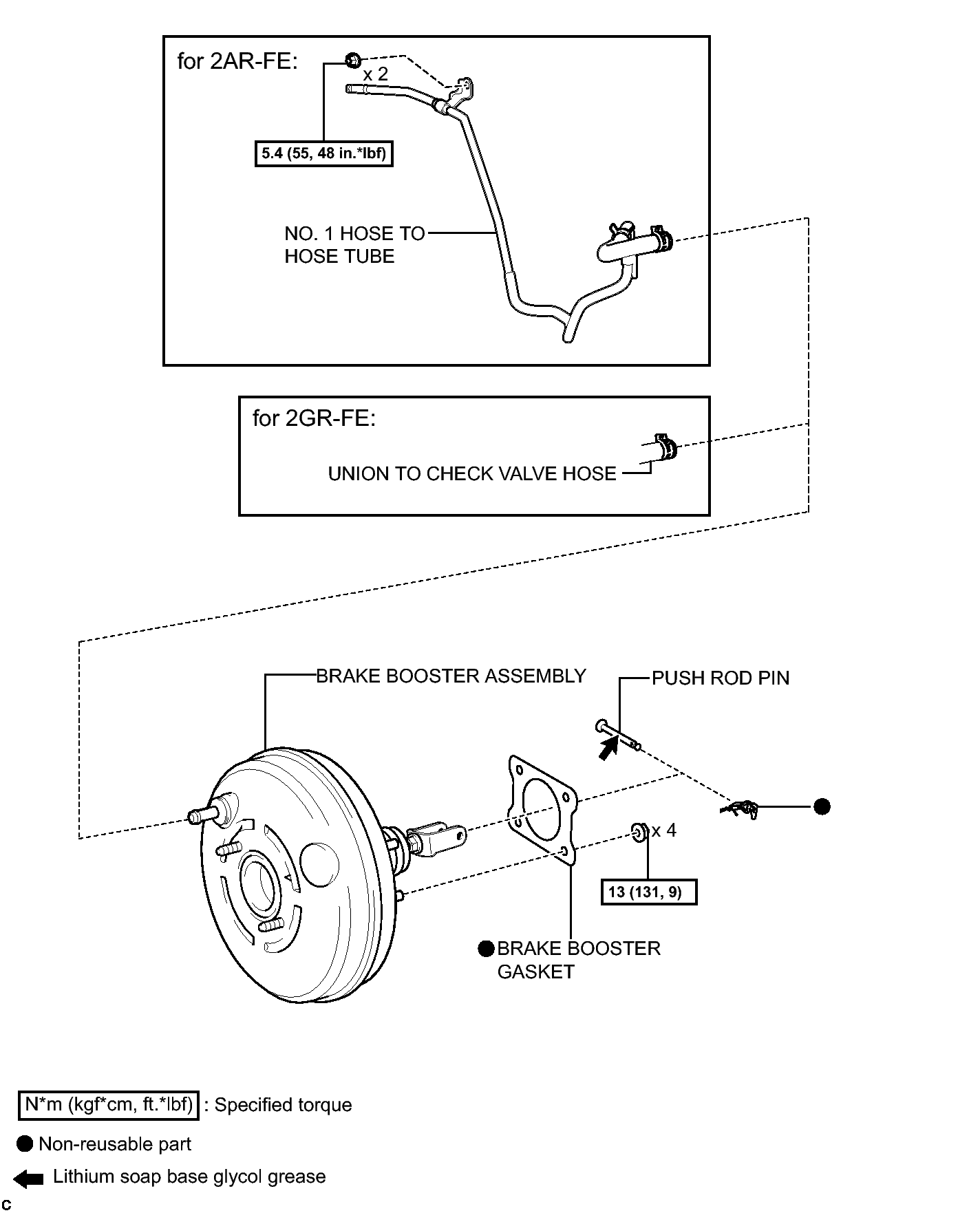

Fig 1: Identifying Brake Booster Replacement Components With Torque Specifications (1 Of 2)
GTY482664Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Brake Booster Replacement Components With Torque Specifications (2 Of 2)
GTY315907Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
