Removal [09/2014 - ]

  1. PRECAUTION
    NOTE: After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work. Refer to PRECAUTION [09/2014 - ] .
  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    WARNING: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
    NOTE: When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION [09/2014 - ] .
  3. REMOVE FRONT SEAT ASSEMBLY LH (for TMMK Made Manual Seat)

    Refer to REMOVAL [09/2014 - ]

  4. REMOVE FRONT SEAT ASSEMBLY LH (for TMMK Made Power Seat)

    Refer to REMOVAL [09/2014 - ]

  5. REMOVE FRONT SEAT ASSEMBLY LH (for SIA Made Manual Seat)

    Refer to REMOVAL [09/2014 - ]

  6. REMOVE FRONT SEAT ASSEMBLY LH (for SIA Made Power Seat)

    Refer to REMOVAL [09/2014 - ]

  7. REMOVE REAR SEAT CUSHION ASSEMBLY  . Refer to REMOVAL [09/2014 - ] - Step 3
  8. REMOVE REAR SEAT CUSHION LOCK HOOK  . Refer to REMOVAL [09/2014 - ] - Step 4
  9. REMOVE REAR SIDE SEATBACK ASSEMBLY LH  . Refer to REMOVAL [09/2014 - ] - Step 8
  10. REMOVE FRONT DOOR SCUFF PLATE LH  . Refer to REMOVAL [09/2014 - ] - Step 3
  11. DISCONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP LH  . Refer to REMOVAL [09/2014 - ] - Step 4
  12. REMOVE REAR DOOR SCUFF PLATE LH  . Refer to REMOVAL [09/2014 - ] - Step 18
  13. DISCONNECT REAR DOOR OPENING TRIM WEATHERSTRIP LH  . Refer to REMOVAL [09/2014 - ] - Step 6
  14. REMOVE LAP BELT OUTER ANCHOR COVER  . Refer to REMOVAL [09/2014 - ] - Step 7
  15. DISCONNECT FRONT SEAT OUTER BELT ASSEMBLY LH  . Refer to REMOVAL [09/2014 - ] - Step 8
  16. REMOVE CENTER PILLAR LOWER GARNISH LH  . Refer to REMOVAL [09/2014 - ] - Step 22
  17. REMOVE LUGGAGE COMPARTMENT DOOR COVER  See step  1
  18. REMOVE LUGGAGE COMPARTMENT DOOR HINGE COVER LH  See step  3
  19. REMOVE SPARE WHEEL COVER ASSEMBLY  See step  19
  20. REMOVE REAR FLOOR FINISH PLATE  See step  20
  21. REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK  See step  21
  22. REMOVE LUGGAGE COMPARTMENT INNER TRIM COVER LH  See step  22
  23. REMOVE FUEL LID LOCK OPEN LEVER SUB-ASSEMBLY  See step  23
  24. REMOVE FUEL LID LOCK CONTROL CABLE SUB-ASSEMBLY
    1. Disengage the 2 clamps.
      Fig 1: Identifying Luggage Door Lock Control Cable Clamps
      GTY315889Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a clip remover, disengage the clamp and disconnect the wire harness.
      Fig 2: Identifying Wire Harness Clamp
      GTY319001Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Using a clip remover, disengage the 2 clamps and remove the 2 scuff plate clips.
      Fig 3: Identifying Scuff Plate Clip Clamps
      GTY315340Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Turn back the floor carpet so that the luggage door lock control cable sub-assembly and fuel lid lock control cable sub-assembly can be removed.
    5. Disengage the guide as shown in the illustration.
      Fig 4: Disengaging Guide
      GTY322049Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Disconnect the luggage door lock control cable sub-assembly.
      Fig 5: Identifying Luggage Door Lock Control Cable End
      GTY321366Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Disengage the clamp and disconnect the luggage door lock control cable sub-assembly.
      Fig 6: Identifying Luggage Door Lock Control Cable Clamp w/ Wireless Door Lock Control System
      GTY316129Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    8. Rotate the fuel filler opening lid lock retainer as shown in the illustration to align the cutouts and the guides (A), and then pull the fuel filler opening lid lock retainer.
      Fig 7: Identifying Cutout And Guide (A)
      GTY477281Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Cutout
      *b Guide (A)
    9. Rotate the fuel filler opening lid lock retainer as shown in the illustration to align the cutouts and guides (B), and then pull the fuel filler opening lid lock retainer.
      Fig 8: Identifying Cutout And Guide (B)
      GTY474289Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Cutout
      *b Guide (B)
    10. Pull out the fuel filler opening lid lock retainer with both guides (B) and (C) aligned with the cutouts.
      Fig 9: Identifying Cutout And Guides (B-C)
      GTY473159Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Cutout
      *b Guide (C)
      *c Guide (B)
    11. Disengage the 2 claws and remove the fuel filler opening lid lock retainer.
      Fig 10: Identifying Fuel Filler Opening Lid Lock Retainer Claws
      GTY320474Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    12. Disengage the 10 clamps and remove the fuel lid lock control cable sub-assembly and luggage door lock control cable sub-assembly.

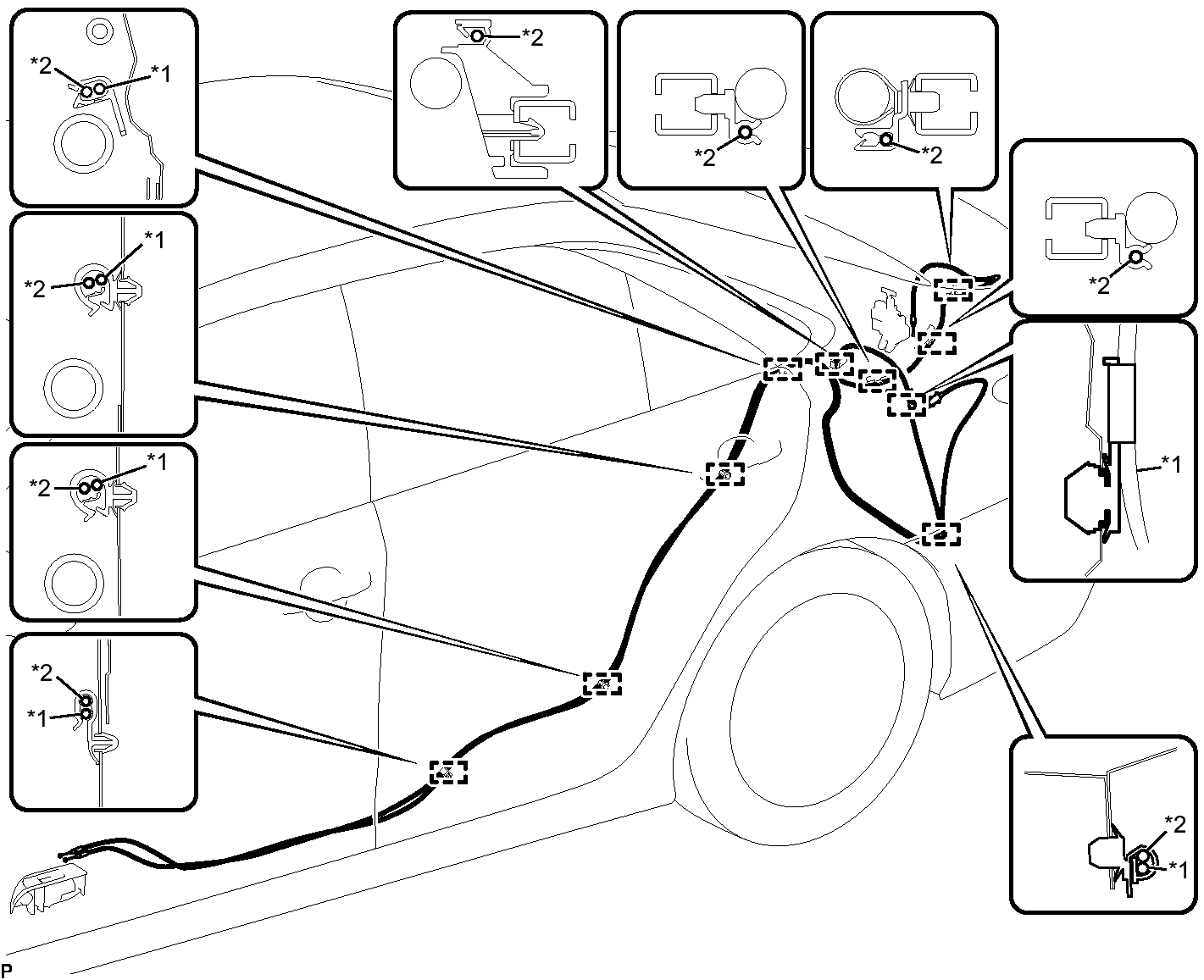

      Fig 11: Identifying Clamps, Fuel Lid Lock Control Cable Sub-Assembly And Luggage Door Lock Control Cable Sub-Assembly
      GTY476147Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Fuel Lid Lock Control Cable Sub-assembly *2 Luggage Door Lock Control Cable Sub-assembly
    13. Using a knife, cut off the clamp as shown in the illustration.
      Fig 12: Identifying Tape
      GTY475319Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Tape *b Cut
      NOTE: Be careful not to damage the vehicle fuel lid lock control cable sub-assembly and luggage door lock control cable sub-assembly.
    14. Remove the clamp.
    15. Remove the 3 pieces of tape and fuel lid lock control cable sub-assembly.
