Components [09/2014 - ]: Illustration

Fig 1: Identifying Front Door Replacement Components With Torque Specifications (1 Of 4)
GTY474385Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Front Door Replacement Components With Torque Specifications (2 Of 4)
GTY475361Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Front Door Replacement Components With Torque Specifications (3 Of 4)
GTY478979Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

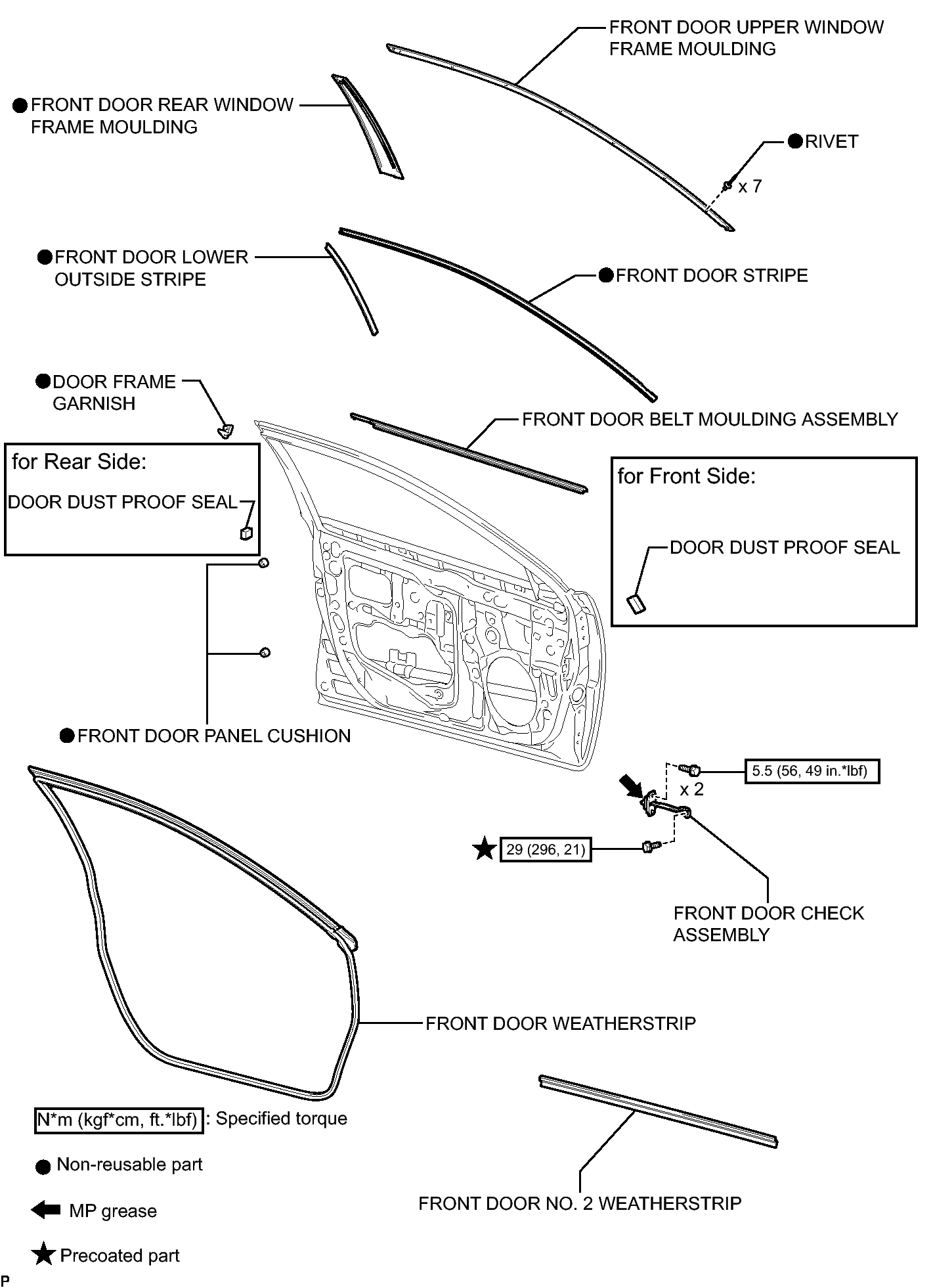

Fig 1: Identifying Front Door Replacement Components With Torque Specifications (4 Of 4)
GTY474239Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
