Seat Belt Warning System (Diagnostics & Symptom Tests) (Except Hybrid)
>>
Seat Belt Warning System
>>
Parts Location [09/2014 - ]
>>
Illustration
Parts Location [09/2014 - ]: Illustration

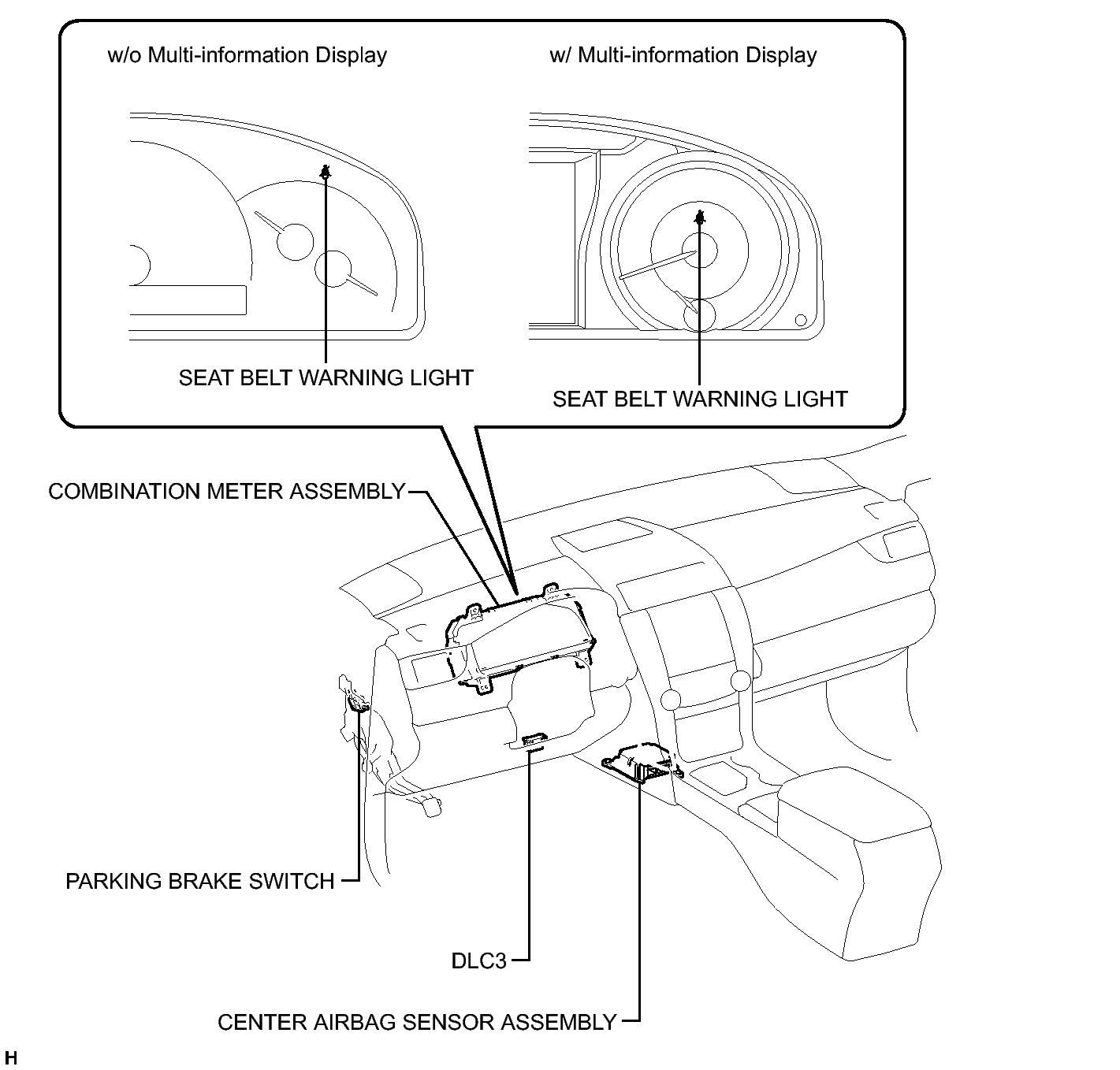

Fig 1: Seat Belt Warning System Components Location (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

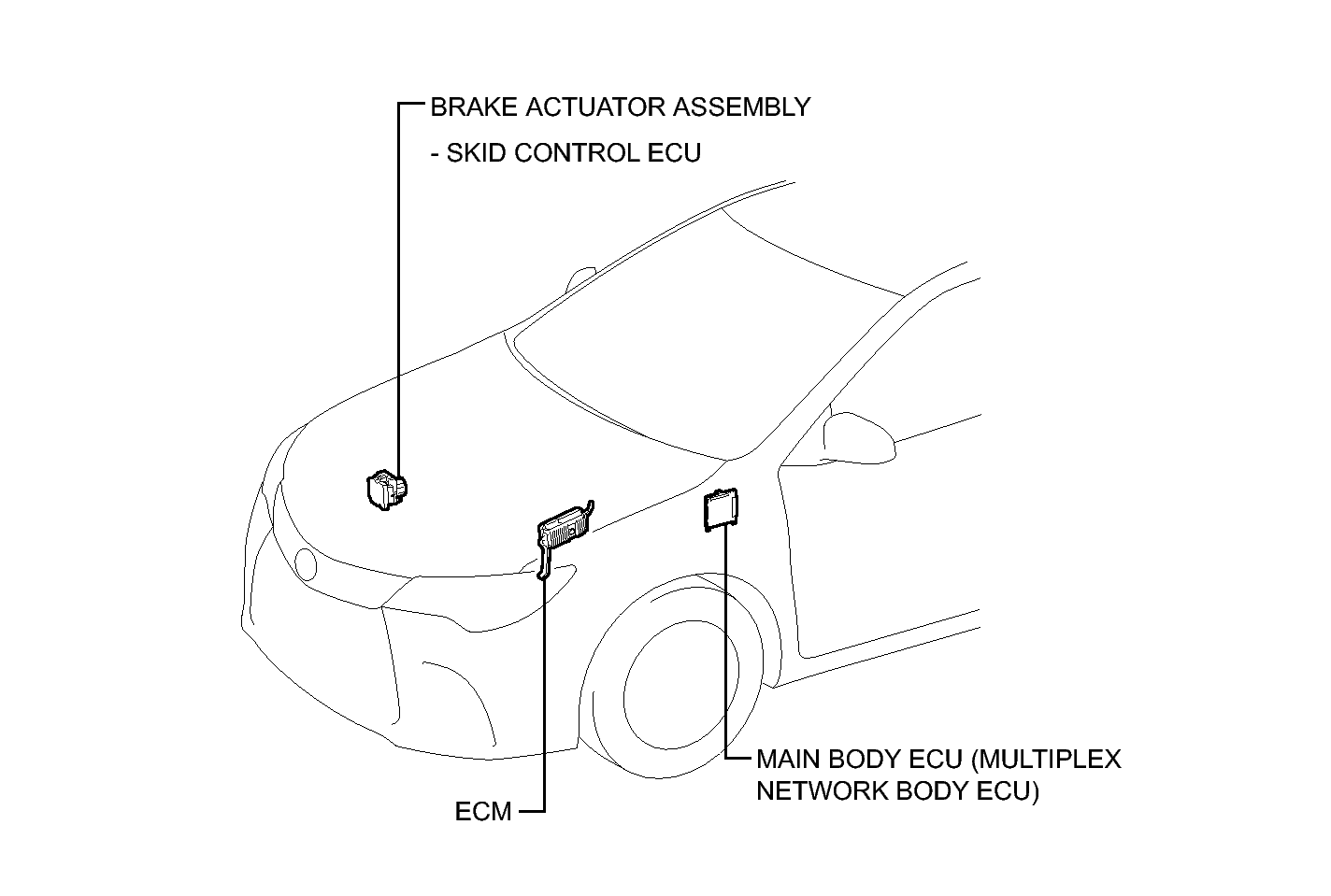

Fig 1: Seat Belt Warning System Components Location (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

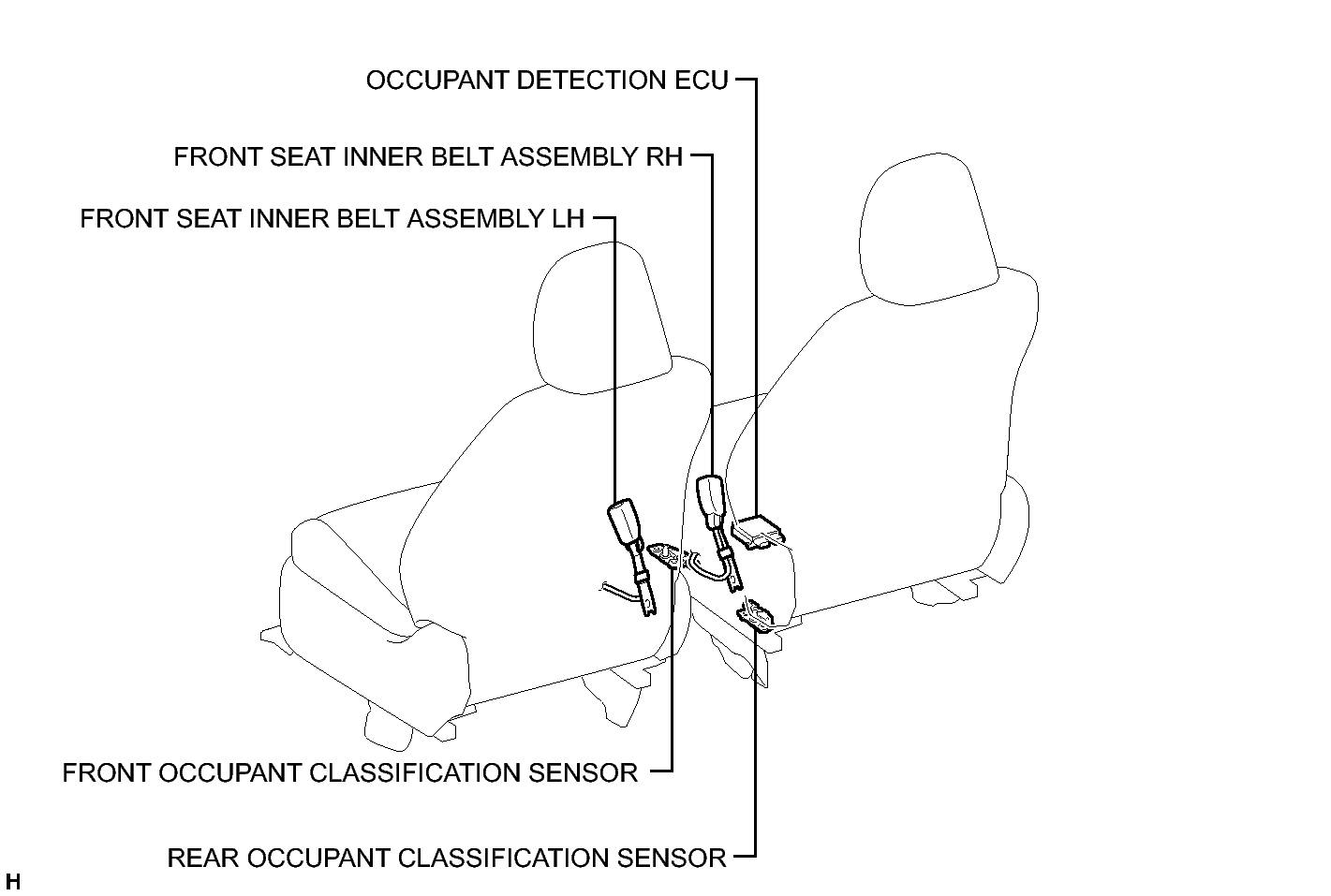

Fig 1: Seat Belt Warning System Components Location (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
