Parts Location [09/2014 - ]: Illustration

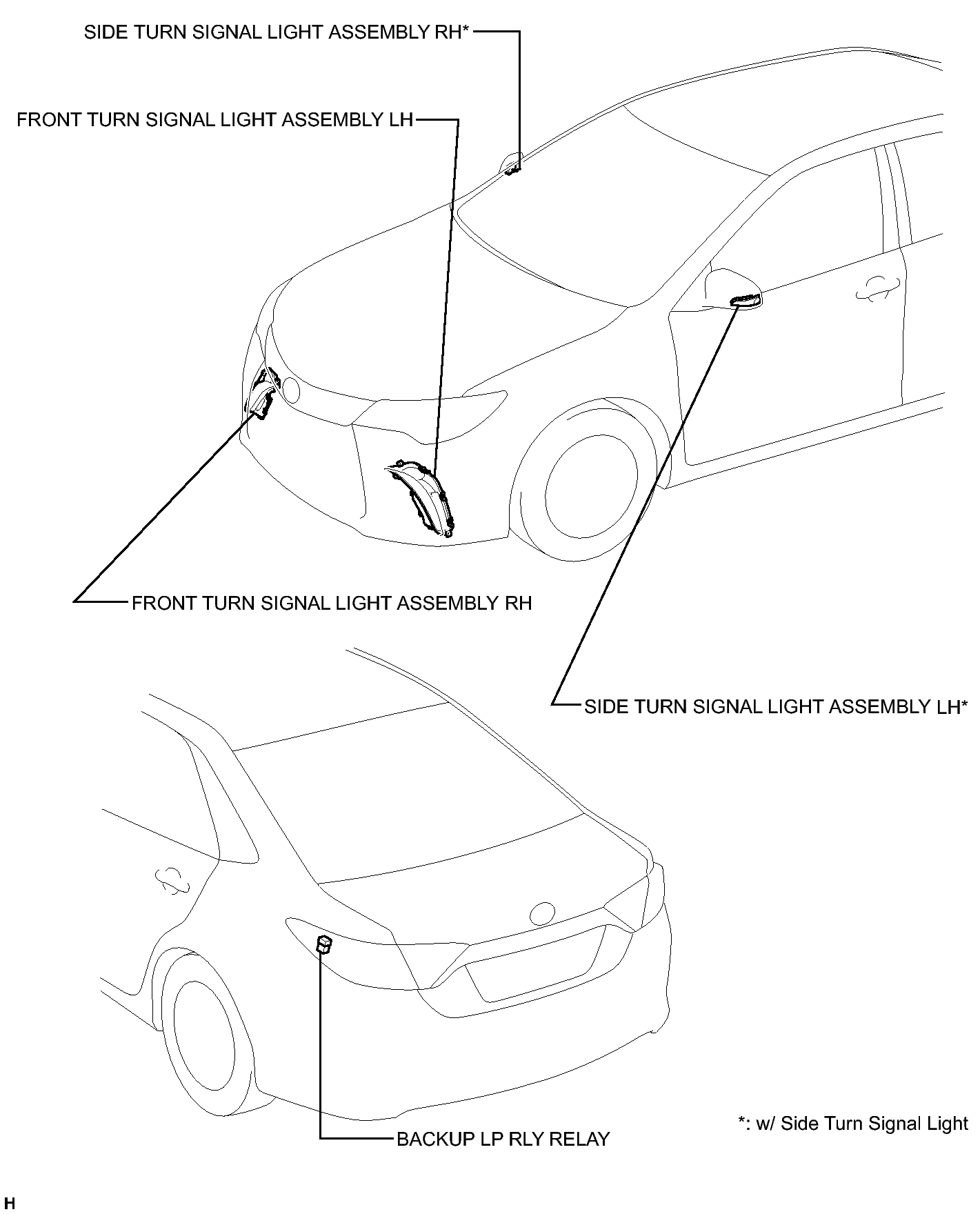

Fig 1: Lighting System Components Location (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

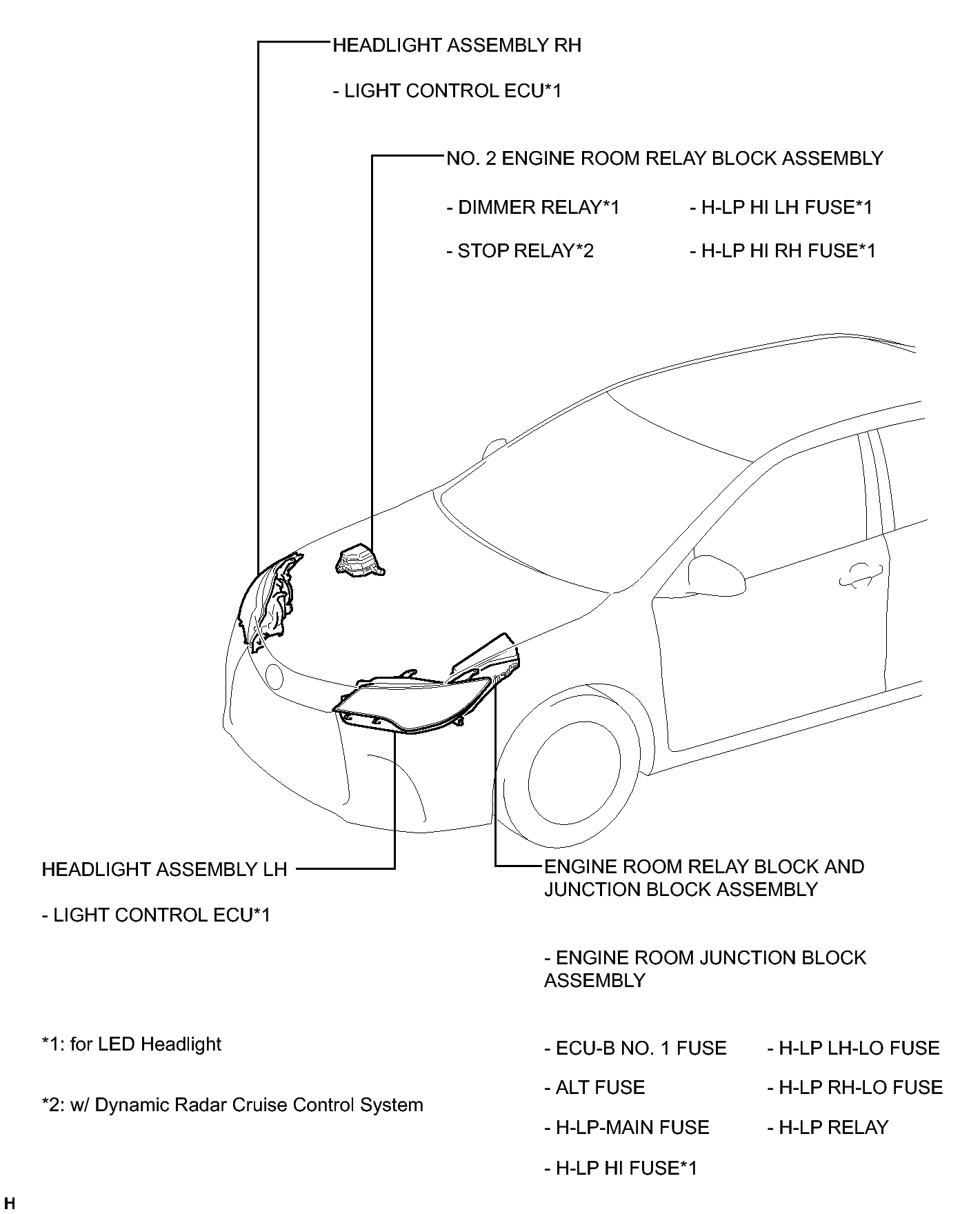

Fig 1: Lighting System Components Location (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

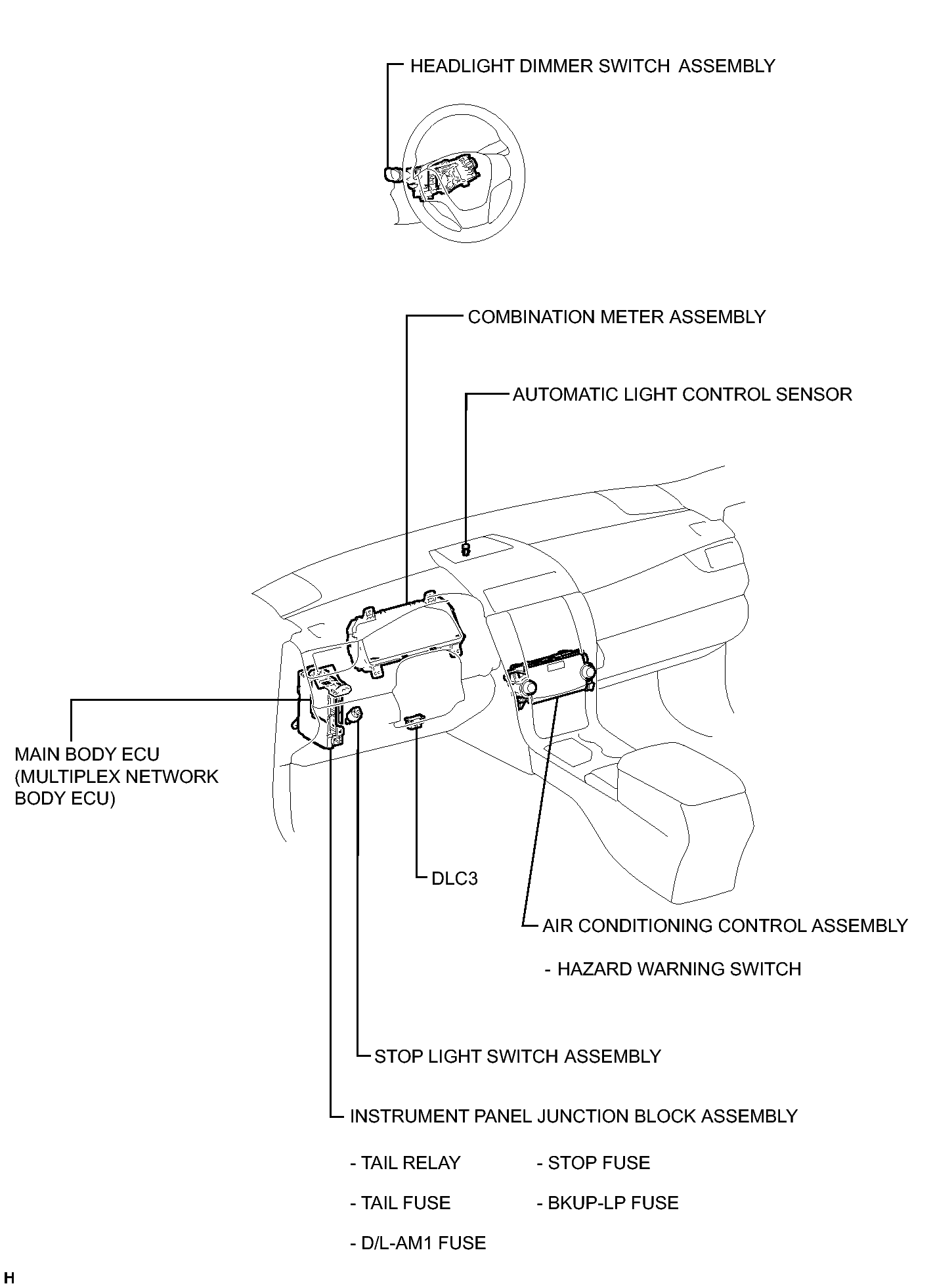

Fig 1: Lighting System Components Location (3 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

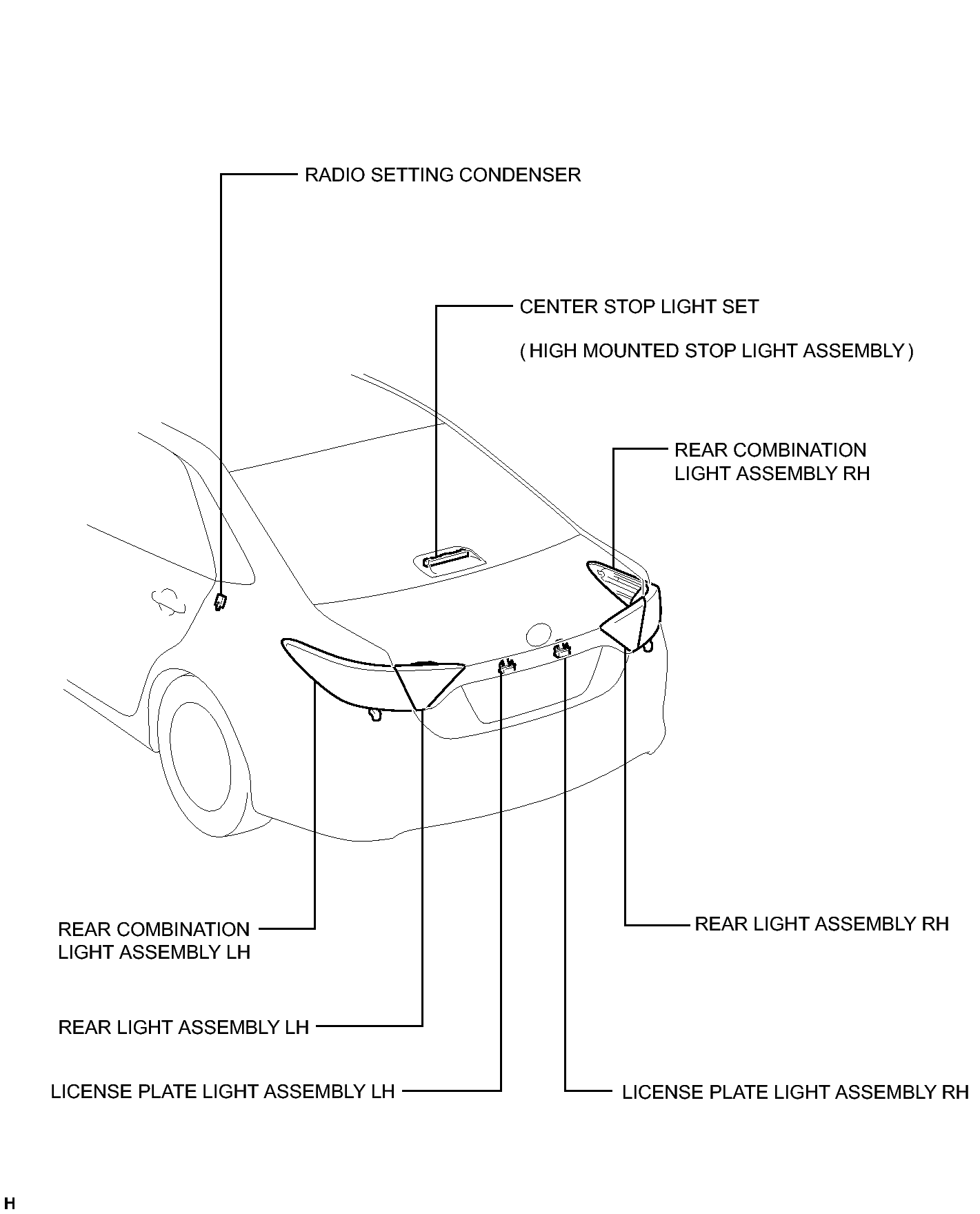

Fig 1: Lighting System Components Location (4 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
