DTC B2430: LED Headlight LH Circuit Malfunction; DTC B2431: LED Headlight RH Circuit Malfunction [09/2014 - ]: Wiring Diagram

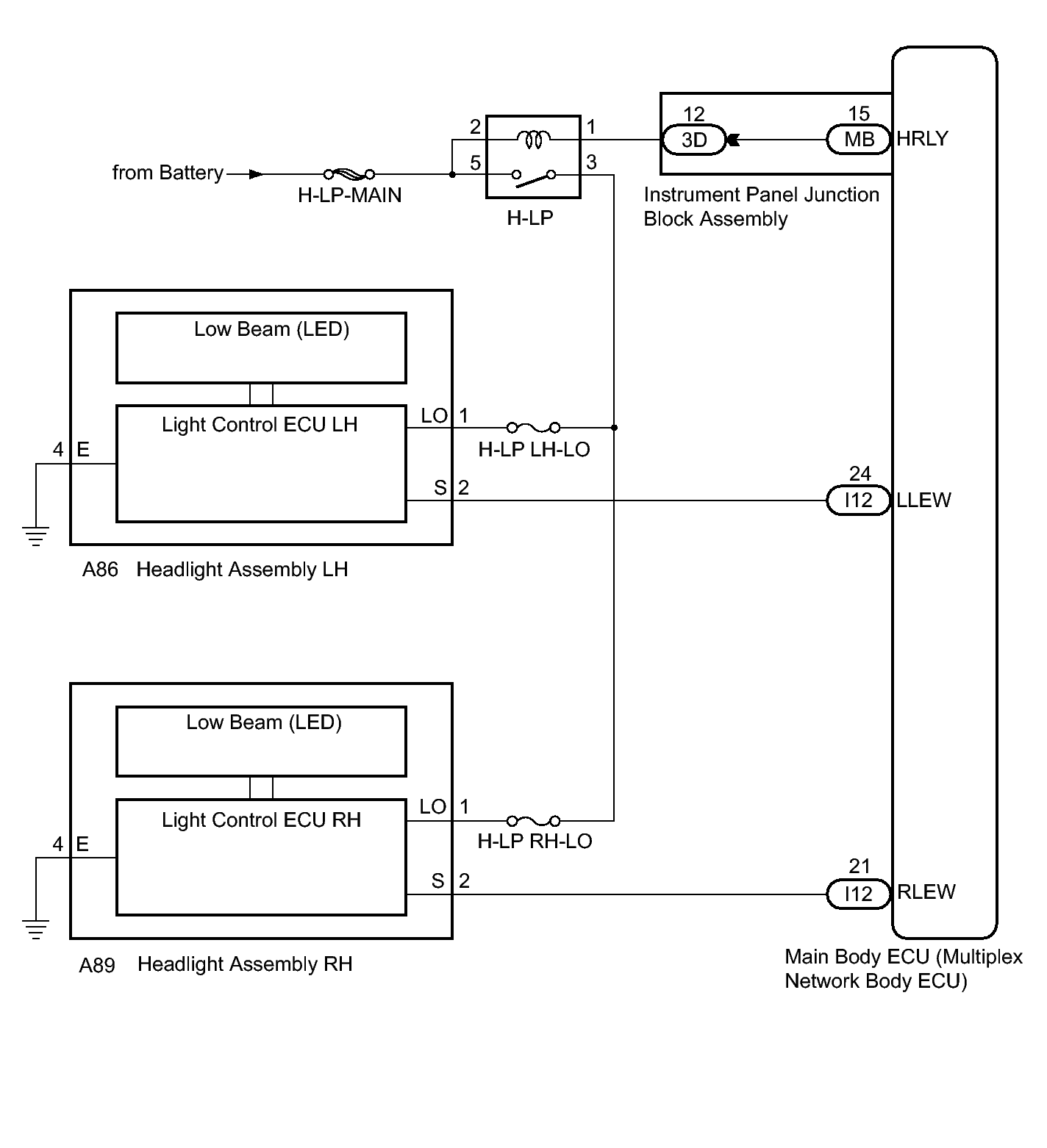

Fig 1: LED Headlight Wiring Diagram
GTY471997Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
