DTC B1244: Light Sensor Circuit Malfunction [09/2014 - ]: Wiring Diagram

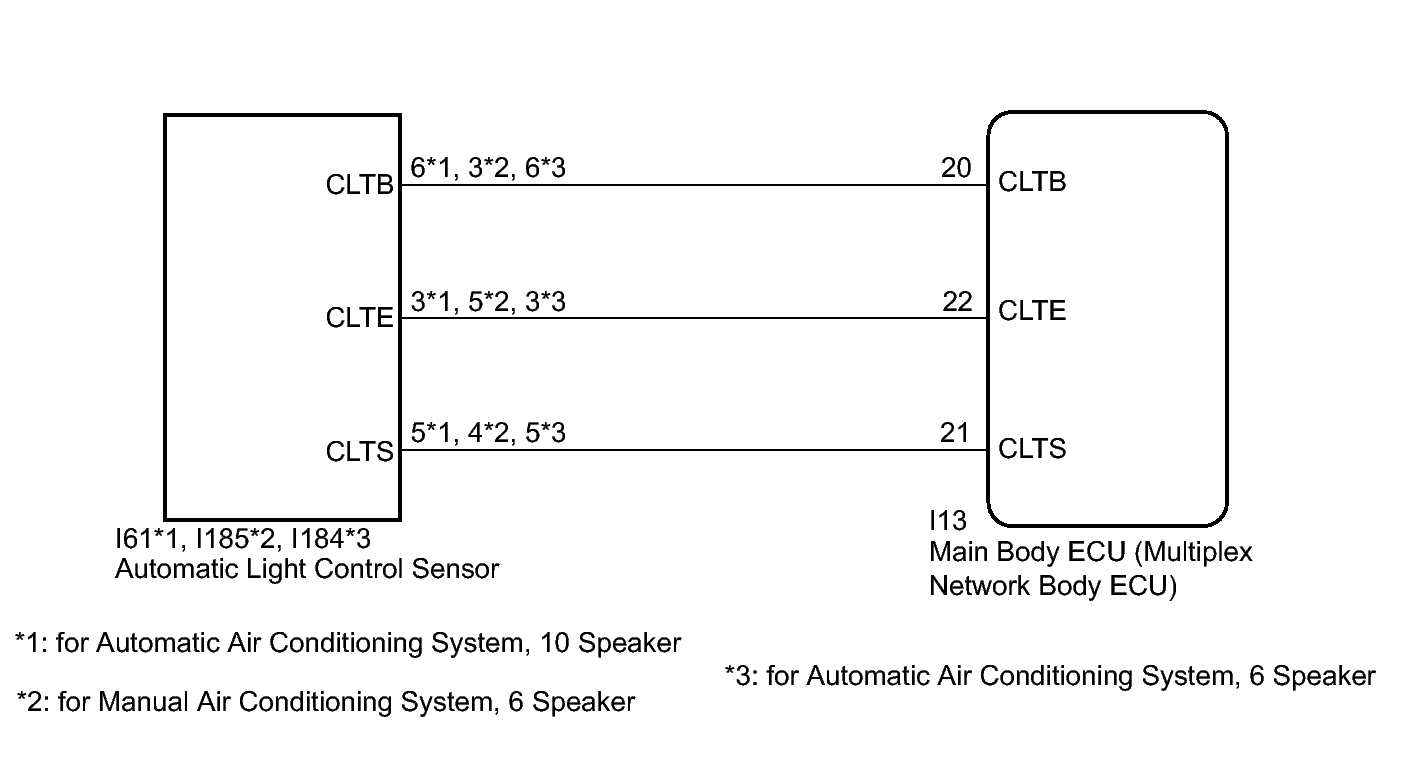

Fig 1: Light Sensor Wiring Diagram

GTY475416

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
