Low Beam Headlight Circuit [09/2014 - ]: Wiring Diagram

  1. for LED Headlight:

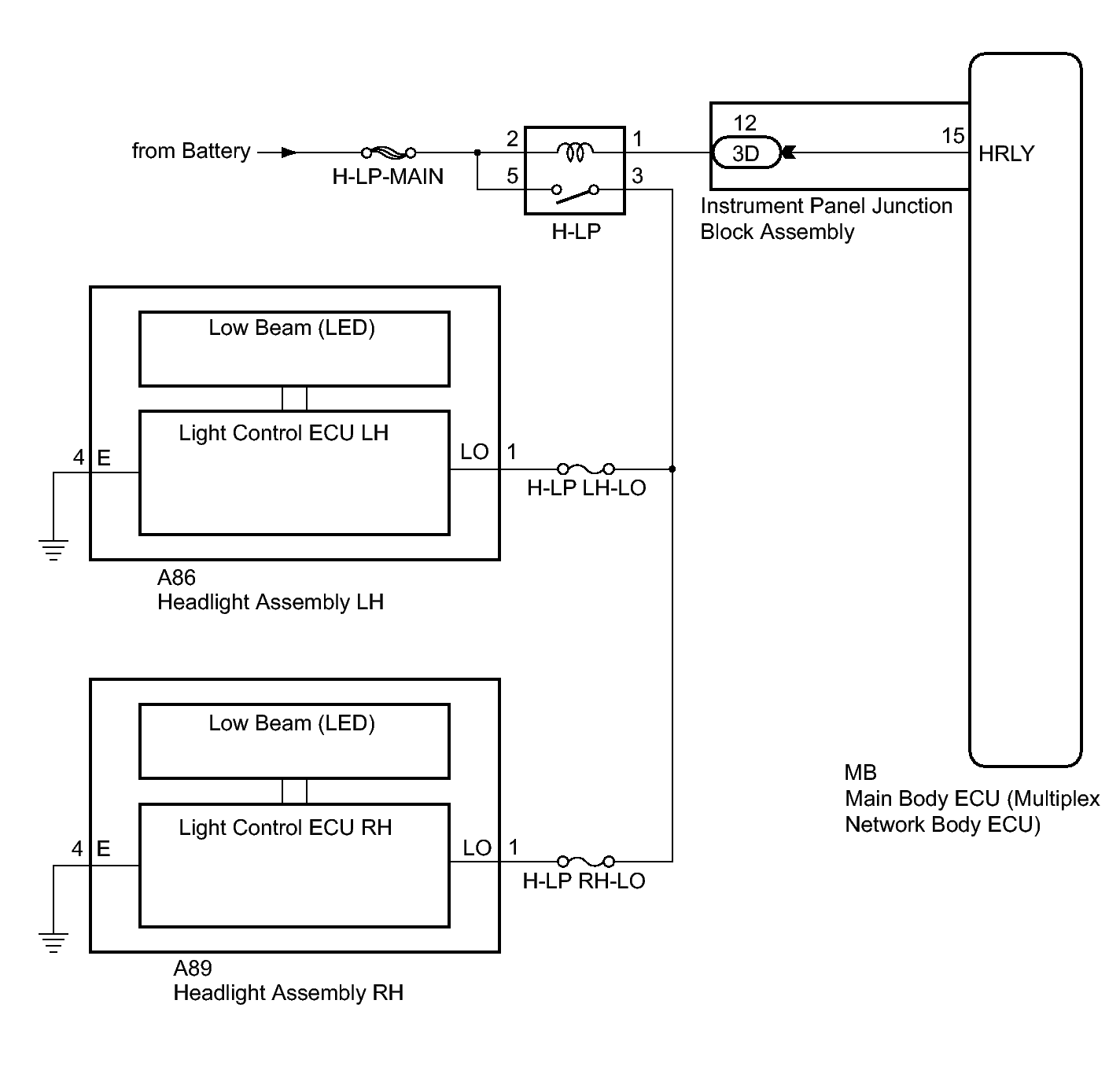

    Fig 1: Low Beam Headlight Wiring Diagram (LED Headlight)
    GTY481130Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. for Halogen Headlight:

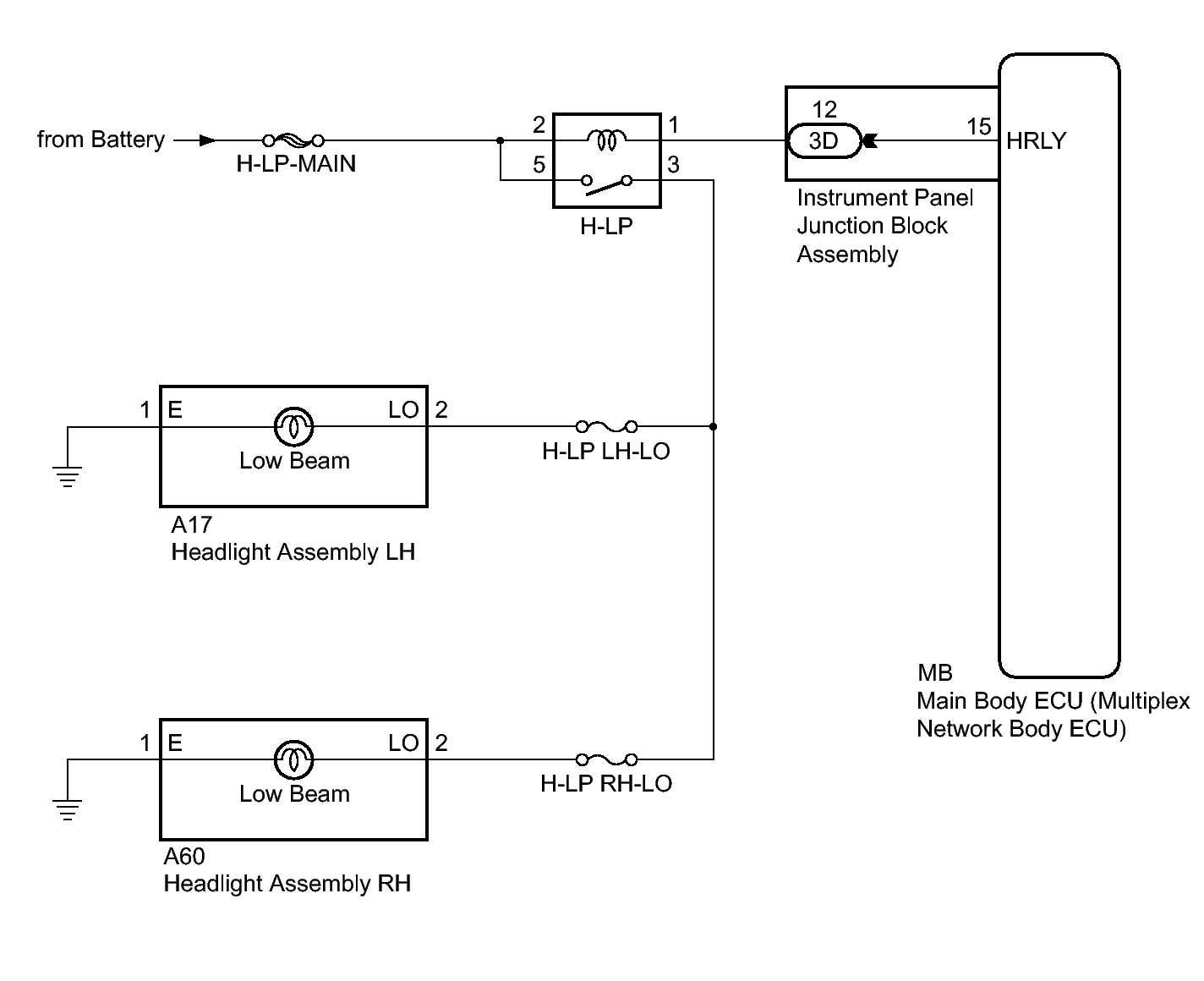

    Fig 2: Low Beam Headlight Wiring Diagram (Halogen Headlight)
    GTY477812Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
