Daytime Running Light Relay Circuit [09/2014 - ]: Wiring Diagram

for DRL Bulb Type:

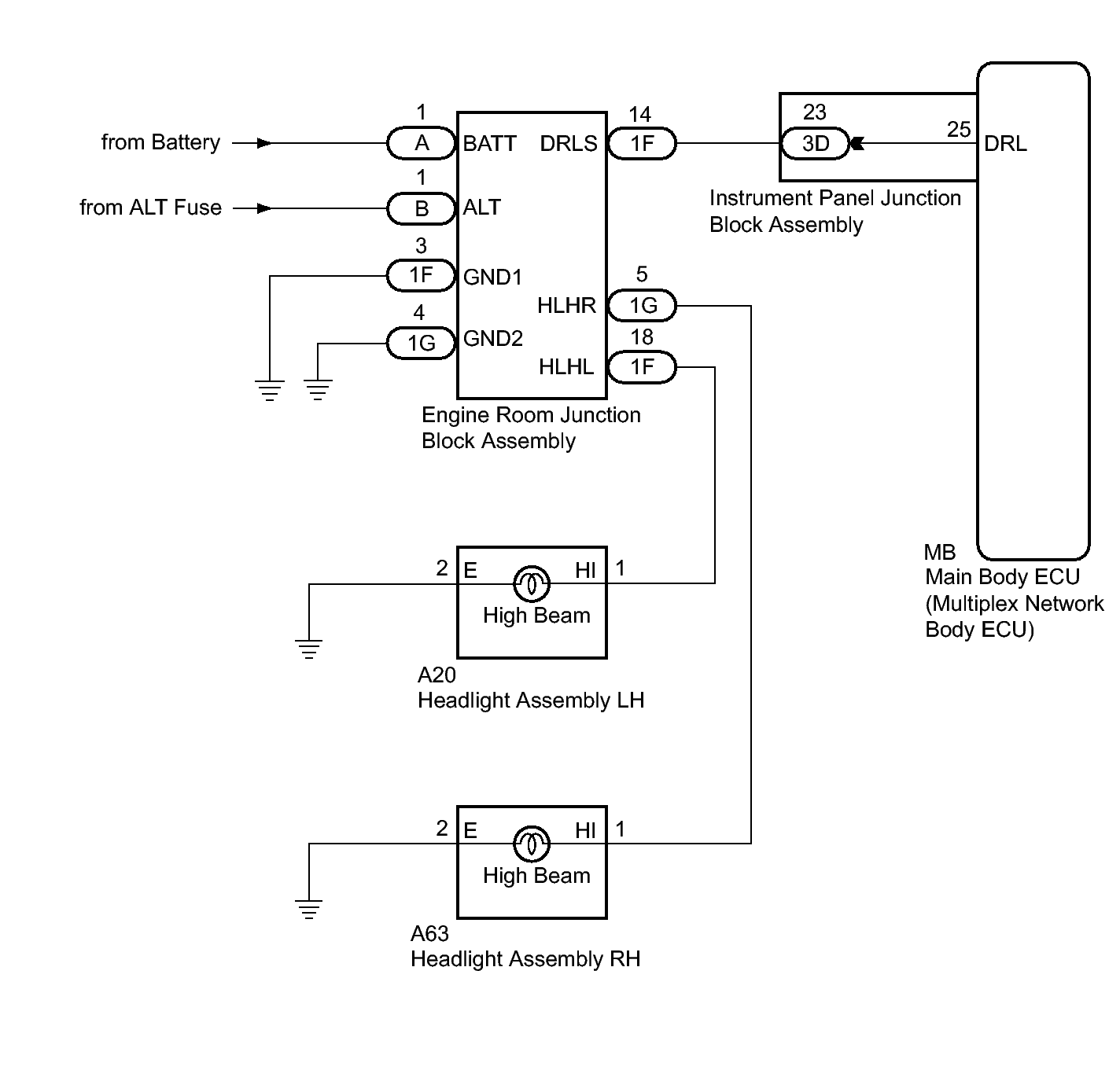

Fig 1: Daytime Running Light Relay Wiring Diagram (DRL Bulb Type)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
for DRL LED Type:

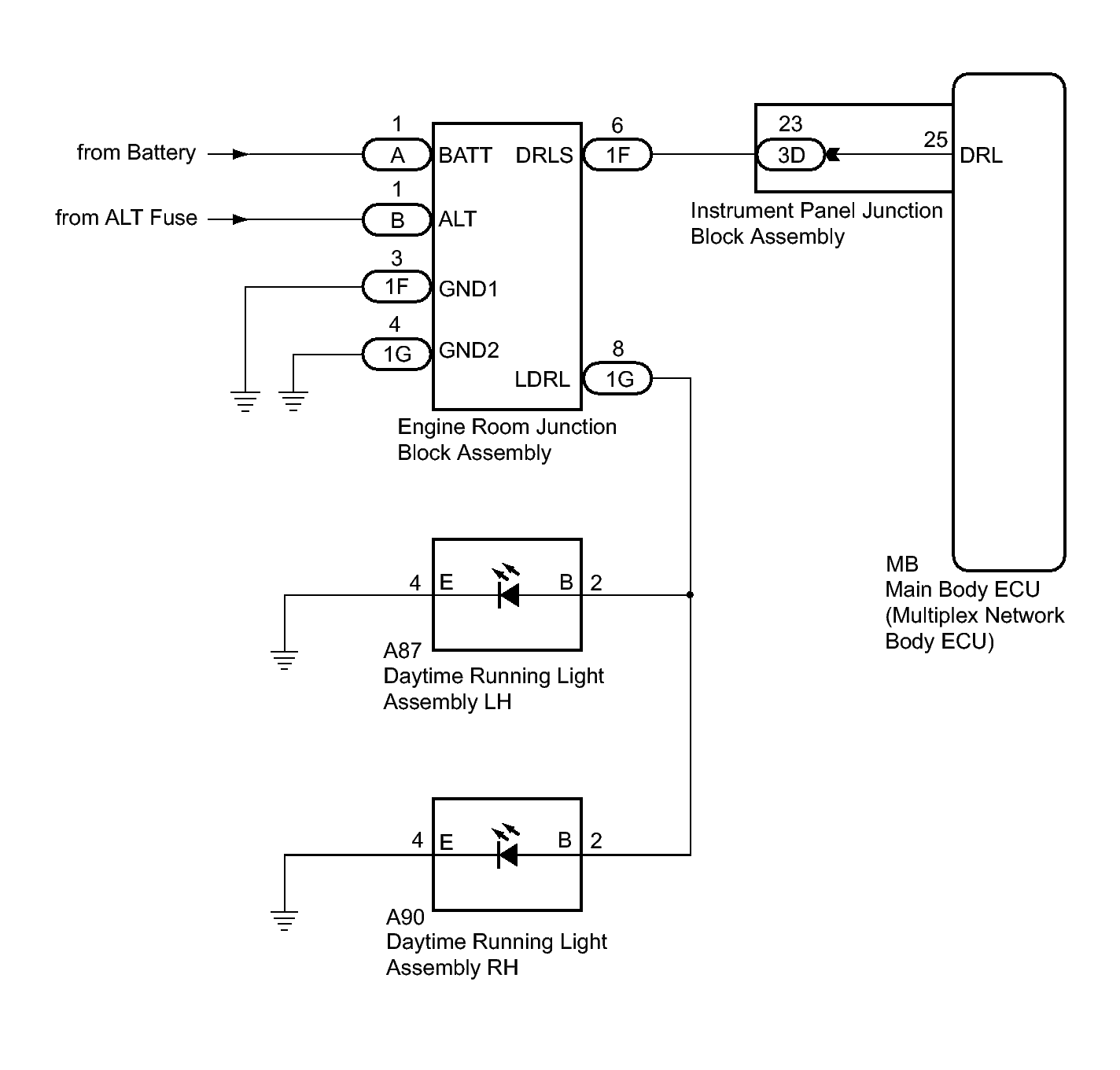

Fig 2: Daytime Running Light Relay Wiring Diagram (DRL LED Type)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
