Speed Signal Circuit [09/2014 - ]: Wiring Diagram

  1. for 2GR-FE

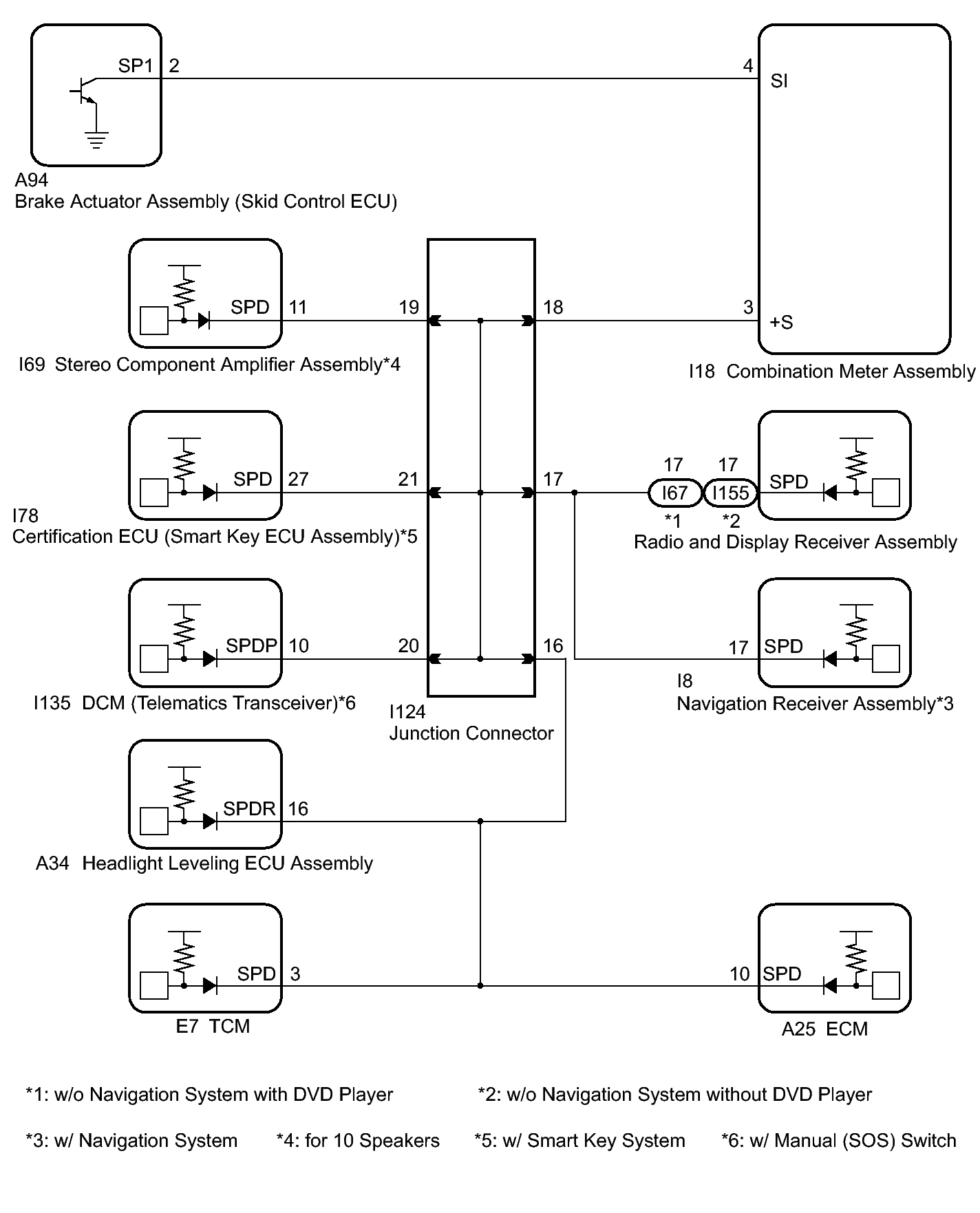

    Fig 1: Vehicle Speed Signal Wiring Diagram (2GR-FE)
    GTY476202Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. for 2AR-FE

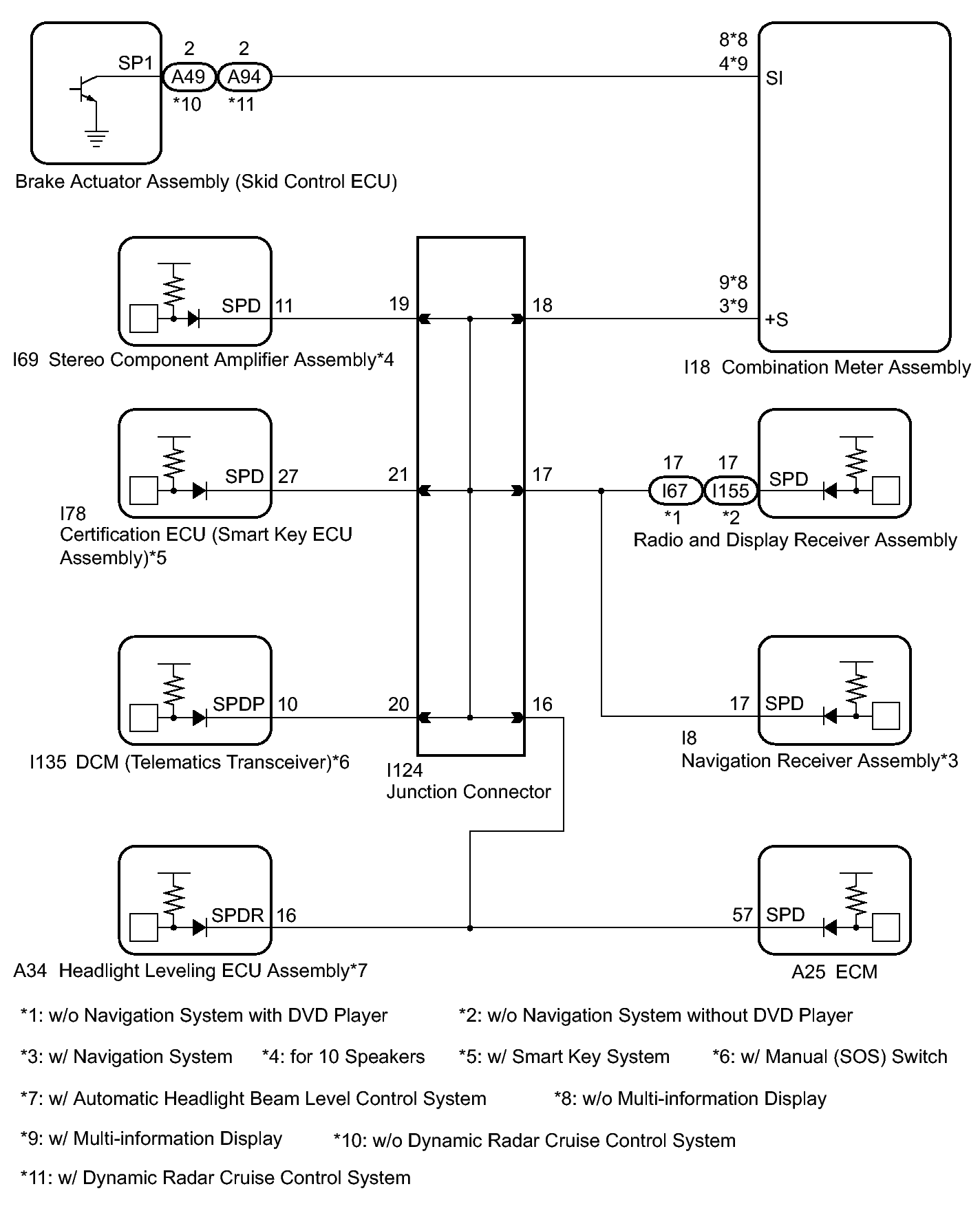

    Fig 2: Vehicle Speed Signal Wiring Diagram (2AR-FE)
    GTY480855Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
