Data Signal Circuit between Radio Receiver and Extension Module [09/2014 - ]: Wiring Diagram

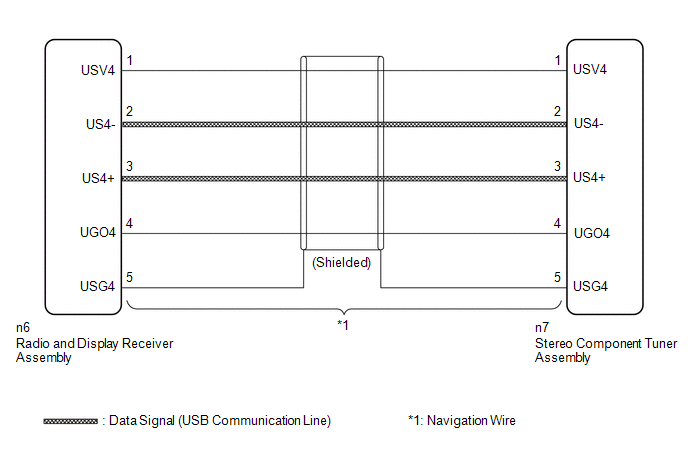

Fig 1: Radio Receiver And Extension Module Wiring Diagram

GTY423032

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
