Removal [10/2014 - ]: Procedure

  1. REMOVE REAR SEAT ASSEMBLY

    (Refer to REMOVAL [10/2014 - ] )

  2. REMOVE REAR DOOR SCUFF PLATE LH

    Refer to PROCEDURE - Step 8 or PROCEDURE - Step 8

  3. REMOVE REAR DOOR SCUFF PLATE RH

    HINT:

    Use the same procedure as for the LH side.

  4. DISCONNECT REAR DOOR OPENING TRIM WEATHERSTRIP LH
    1. Disconnect the rear door opening trim weatherstrip LH.
  5. DISCONNECT REAR DOOR OPENING TRIM WEATHERSTRIP RH

    HINT:

    Use the same procedure as for the LH side.

  6. REMOVE REAR SEAT SIDE GARNISH LH

    Refer to PROCEDURE - Step 24 or PROCEDURE - Step 24

  7. REMOVE REAR SEAT SIDE GARNISH RH

    HINT:

    Use the same procedure as for the LH side.

  8. DISCONNECT REAR SEAT OUTER BELT ASSEMBLY LH
    1. Remove the bolt and disconnect the floor anchor of the rear seat outer belt assembly LH.

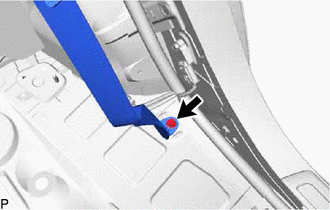

      GTY375417Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. DISCONNECT REAR SEAT OUTER BELT ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  10. REMOVE CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY LH

    See step  2

  11. DISCONNECT REAR SEAT INNER WITH CENTER BELT ASSEMBLY LH

    See step  11

  12. REMOVE ROOF SIDE INNER GARNISH ASSEMBLY LH

    Refer to PROCEDURE - Step 25 or PROCEDURE - Step 25

  13. REMOVE ROOF SIDE INNER GARNISH ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  14. REMOVE REAR SEAT SHOULDER BELT HOLE COVER
    1. Using a moulding remover, disengage the 2 claws and 2 guides and remove the rear seat shoulder belt hole cover.

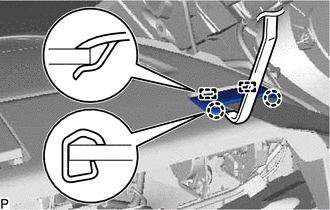

      GTY375414Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Use the same procedure for the other 2 rear seat shoulder belt hole covers.

  15. REMOVE PACKAGE TRAY TRIM PANEL ASSEMBLY

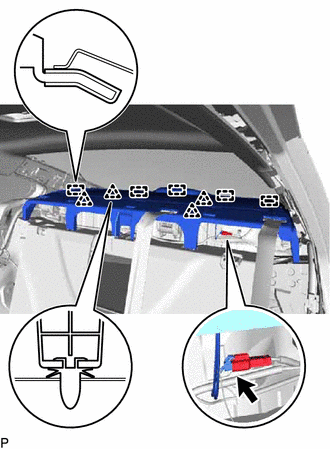

    GTY383504Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the connector.
    2. Disengage the 4 clips.
    3. Disengage the 5 guides.
    4. Pass the 3 rear seat belt floor anchors through the package tray trim panel assembly then remove the package tray trim panel assembly.
  16. REMOVE REAR SEAT OUTER BELT ASSEMBLY LH

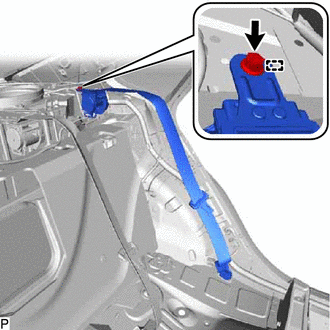

    GTY375430Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the bolt.
    2. Disengage the guide to remove the rear seat outer belt assembly LH.
  17. REMOVE REAR SEAT OUTER BELT ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.
