Installation [10/2014 - 10/2015]: Procedure

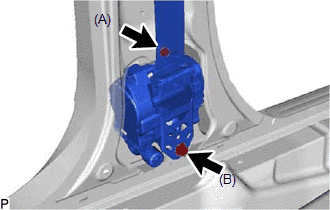

1. Engage the guide to temporarily install the front shoulder belt anchor adjuster assembly with the 2 bolts.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Fully tighten the bolt (A) first, then the bolt (B) to install the front shoulder belt anchor adjuster assembly.

   Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

1. Check the ELR function (See step  1).

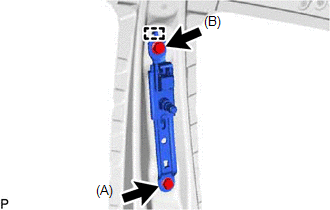

1. Temporarily install the front seat outer belt assembly with the 2 bolts.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Fully tighten the bolt (A) first, then the bolt (B).

   Bolt (A)

   Torque: 7.5 N*m (76 kgf*cm, 66 in.*lbf)

   Bolt (B)

   Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

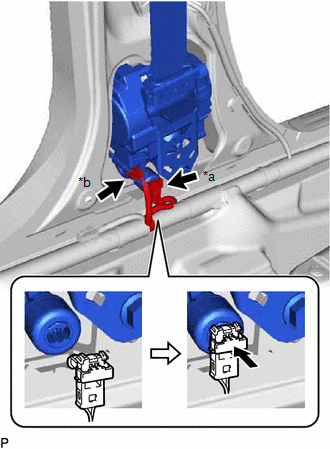

3. Connect the pretensioner connector and lock the locking button as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   TEXT IN ILLUSTRATION



   *a	Pretensioner Connector
   *b	Pre-collision Seat belt Connector

   NOTE:

   Securely lock the locking button.

4. w/ Pre-collision System:
   1. Connect the connector.
5. Connect the shoulder anchor of the front seat outer belt assembly with the nut.

   Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

Refer to PROCEDURE - Step 25

Refer to PROCEDURE - Step 26

1. Install the floor anchor of the front seat outer belt assembly with the bolt.

   Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

2. Check that the ELR locks.
   NOTE:

   The check should be performed with the front seat outer belt assembly installed.

   1. With the belt assembly installed, check that the belt locks when it is pulled out quickly.

1. Engage the 3 claws to install the lap belt outer anchor cover.

for LH Side: (Refer to PROCEDURE - Step 29 )

for RH Side: (Refer to PROCEDURE - Step 39 )

Refer to PROCEDURE - Step 30

for LH Side: (Refer to PROCEDURE - Step 32 )

for RH Side: (Refer to PROCEDURE - Step 42 )

Refer to PROCEDURE - Step 34

(Refer to DIAGNOSIS SYSTEM [10/2014 - ] )
