Installation [10/2015 - ]: Procedure

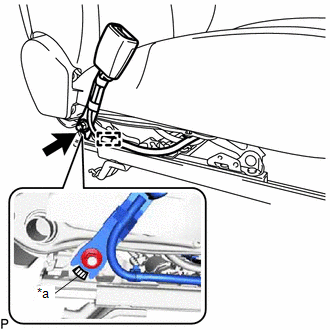

1. Install the front seat inner belt assembly LH with the nut.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Protruding Part

   Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

   NOTE:

   Do not allow the anchor part of the front seat inner belt assembly LH to overlap the protruding part of the front seat adjuster.

2. Engage the clamp.
3. Engage each clamp under the front seat assembly LH.

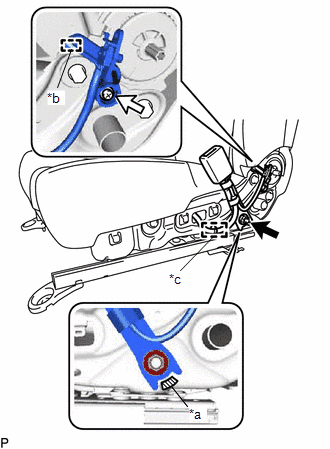

1. Install the front seat inner belt assembly RH with the nut.

   Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

   NOTE:

   Do not allow the anchor part of the front seat inner belt assembly RH to overlap the protruding part of the front seat adjuster.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Protruding Part
   *b	Guide
   *c	Clamp

2. Engage the guide and connect the recline limit switch with the screw.
3. Engage the clamp.
4. Engage each clamp under the front seat assembly RH.
5. Connect the connector under the front seat assembly RH.
6. Engage the guide to connect the front seat cushion cover sub-assembly RH.

HINT:

Use the same procedure described for the LH side.

Refer to PROCEDURE - Step 44 or PROCEDURE - Step 44

HINT:

Use the same procedure described for the LH side.

Refer to PROCEDURE - Step 45 or PROCEDURE - Step 45

Refer to INSTALLATION [10/2014 - ]
