Removal [10/2014 - ]: Procedure

  1. REMOVE REAR SEAT ASSEMBLY

    (Refer to REMOVAL [10/2014 - ] )

  2. REMOVE REAR DOOR SCUFF PLATE LH

    Refer to PROCEDURE - Step 8 or PROCEDURE - Step 8

  3. REMOVE REAR DOOR SCUFF PLATE RH

    HINT:

    Use the same procedure as for the LH side.

  4. DISCONNECT REAR DOOR OPENING TRIM WEATHERSTRIP LH

    See step  4

  5. DISCONNECT REAR DOOR OPENING TRIM WEATHERSTRIP RH

    HINT:

    Use the same procedure as for the LH side.

  6. REMOVE REAR SEAT SIDE GARNISH LH

    Refer to PROCEDURE - Step 24 or PROCEDURE - Step 24

  7. REMOVE REAR SEAT SIDE GARNISH RH

    HINT:

    Use the same procedure as for the LH side.

  8. DISCONNECT REAR SEAT OUTER BELT ASSEMBLY LH

    See step  8

  9. DISCONNECT REAR SEAT OUTER BELT ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  10. REMOVE CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY LH

    See step  2

  11. DISCONNECT REAR SEAT INNER WITH CENTER BELT ASSEMBLY LH

    See step  11

  12. REMOVE ROOF SIDE INNER GARNISH ASSEMBLY LH

    Refer to PROCEDURE - Step 25 or PROCEDURE - Step 25

  13. REMOVE ROOF SIDE INNER GARNISH ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  14. REMOVE REAR SEAT SHOULDER BELT HOLE COVER

    See step  14

  15. REMOVE PACKAGE TRAY TRIM PANEL ASSEMBLY

    See step  15

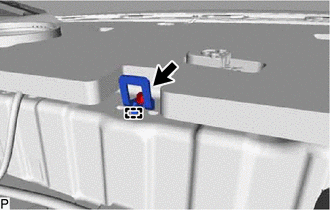

  16. REMOVE CHILD RESTRAINT SEAT TETHER ANCHOR BRACKET
    1. Remove the bolt.
      GTY375432Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the guide and remove the child restraint seat tether anchor bracket.

      HINT:

      Use the same procedure for the other 2 child restraint seat tether anchor brackets.
