Components [10/2014 - ]: Illustration

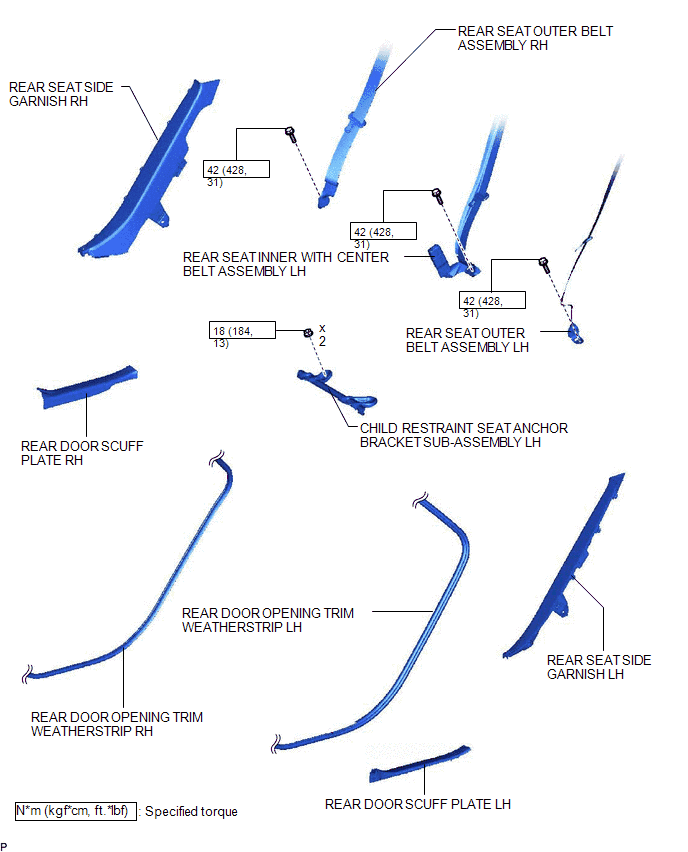

Fig 1: Child Restraint Seat Tether Anchor Replacement Components With Torque Specifications (1 Of 2)
GTY601997Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

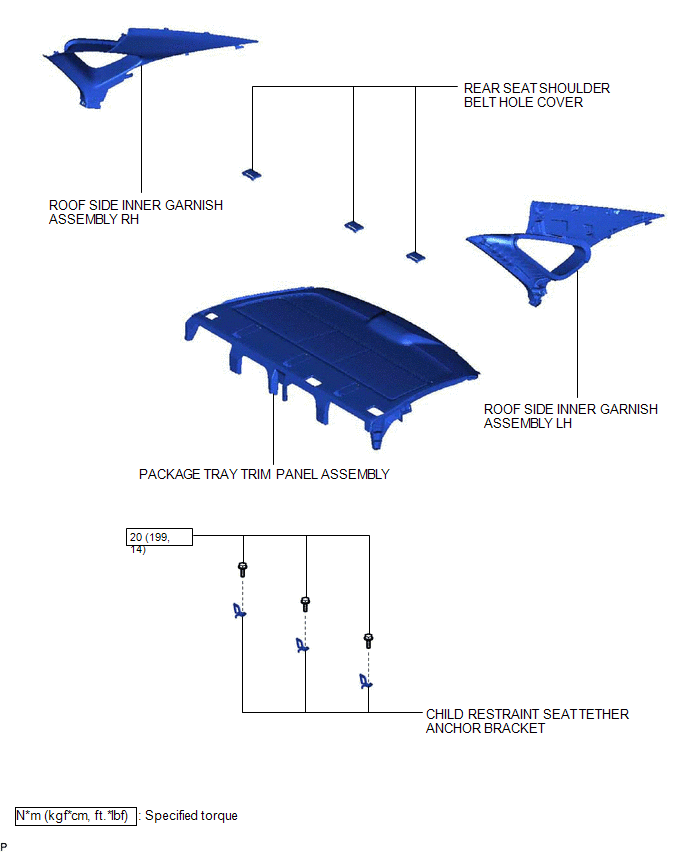

Fig 1: Child Restraint Seat Tether Anchor Replacement Components With Torque Specifications (2 Of 2)
GTY368221Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
