Parts Location [10/2015 - ]: Illustration
WARNING: This page is about a different car, the 2018 Toyota Avalon, 2017 Toyota Avalon, and 2016 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

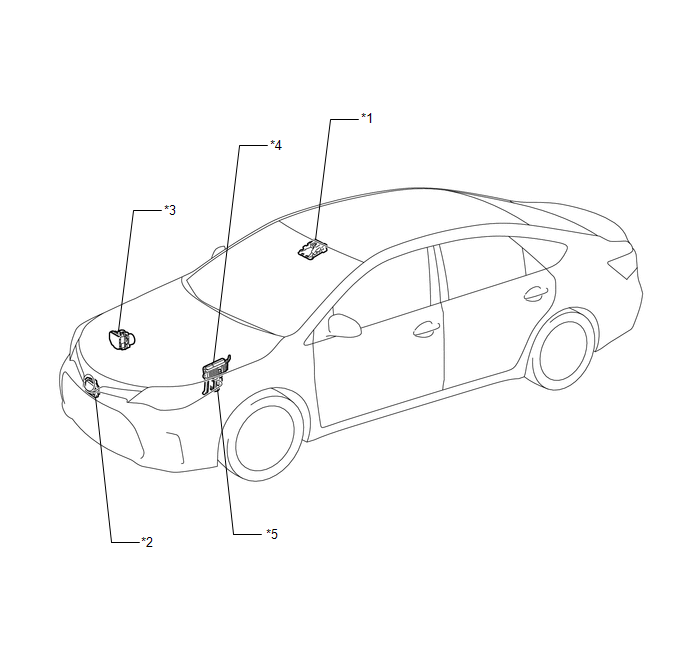

| *1 | FORWARD RECOGNITION CAMERA | *2 | MILLIMETER WAVE RADAR SENSOR ASSEMBLY |
| *3 | BRAKE ACTUATOR ASSEMBLY - SKID CONTROL ECU |
*4 | ECM |
| *5 | TCM | - | - |
