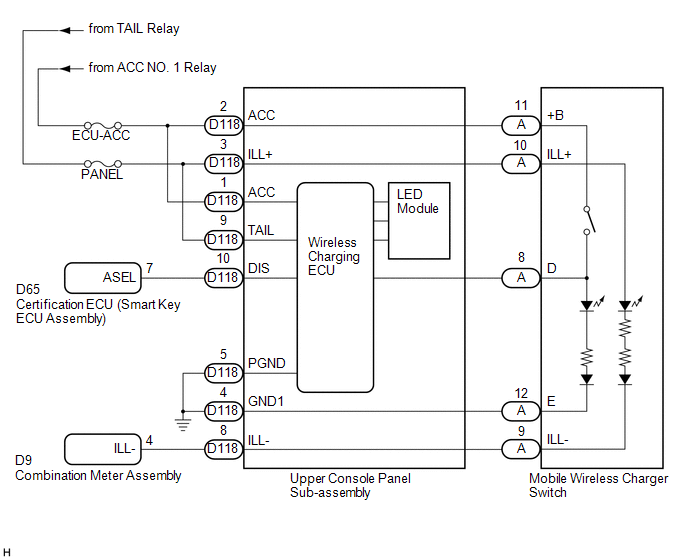

Home >> Toyota >> 2015 >> Avalon XLE >> Repair and Diagnosis >> Electrical >> Motors, Switches, Relays >> Wireless Charging System - Diagnostics & Circuit Tests (Except Hybrid) >> Wireless Charging System >> System Diagram [10/2014 - ] >> System Diagram [10/2014 - ]
