Brake System (Front) - Service Information - (Except Hybrid)
>>
Front Brake Flexible Hose
>>
Components [10/2014 - ]
>>
Illustration
Components [10/2014 - ]: Illustration

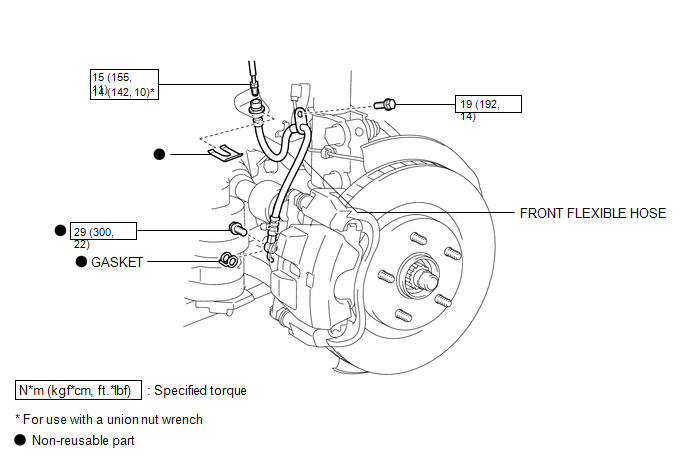

Fig 1: Front Brake Flexible Hose Replacement Components With Torque Specifications
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
