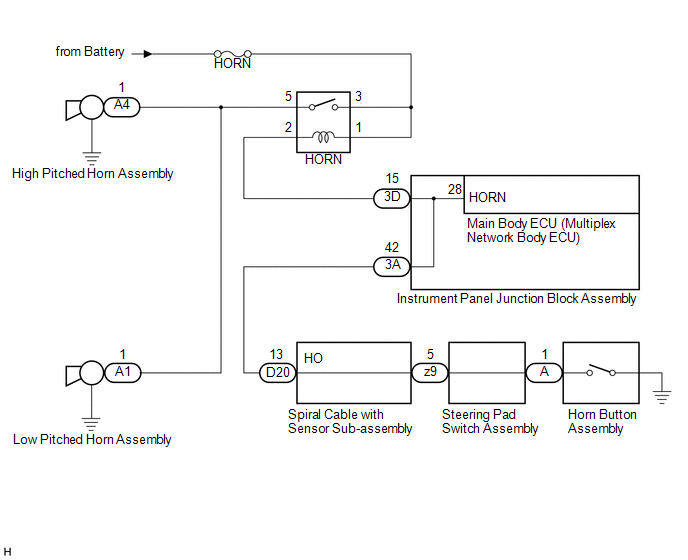

Home >> Toyota >> 2015 >> Avalon XLE >> Repair and Diagnosis >> Accessories & Equipment >> Horns >> Horn - Diagnostics - Introduction - (Except Hybrid) >> Horn System >> System Diagram [10/2014 - ] >> System Diagram [10/2014 - ]
