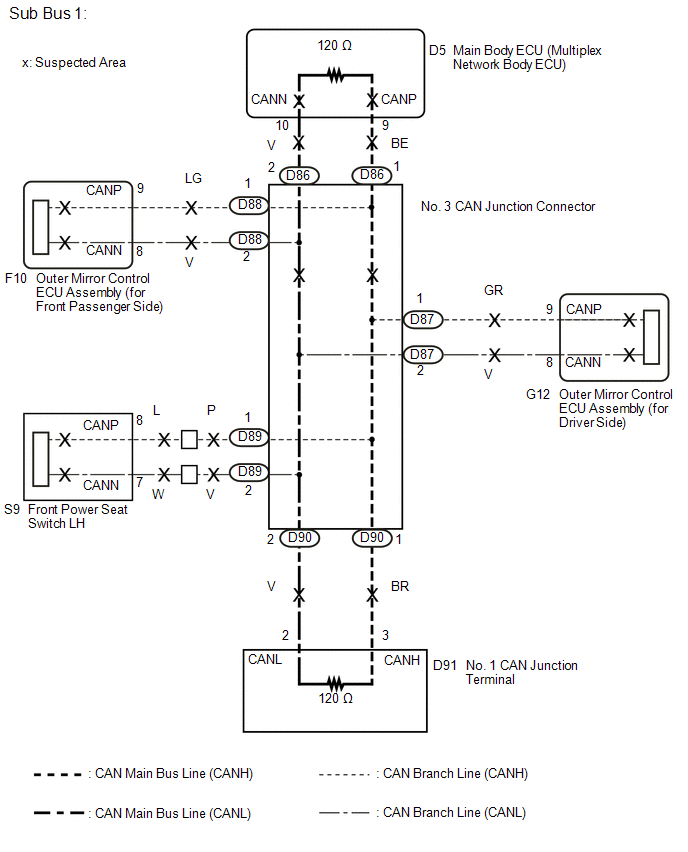

DTC U1002: Lost Communication with Gateway Module (Main Body ECU) [10/2014 - ]: Wiring Diagram

GTY610222

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
