Inspection [10/2014 - ]: Procedure

1. Check the tires for wear and proper inflation pressure.

   Cold Tire Inflation Pressure

   Tire Size	Front kPa (kgf/cm2 , psi)	Rear kPa (kgf/cm2 , psi)
   P215/55R17 93V	230 (2.3, 33)

2. Using a dial indicator, check the runout of the tires.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Maximum tire runout

   1.4 mm (0.0551 in.)

1. Rotate the tires as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   TEXT IN ILLUSTRATION



   Front

   Axle hub nut

   Torque: 103 N*m (1049 kgf*cm, 76 ft.*lbf)

1. Inspect and adjust the off-the-car balance.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Maximum imbalance

   8.0 g (0.0176 lb)

   NOTE:

   • Use a cleaning detergent to remove dirt, oil and water from the surface where the balance weight is to be adhered.
   • Do not touch the adhesive surface of the balance weight.

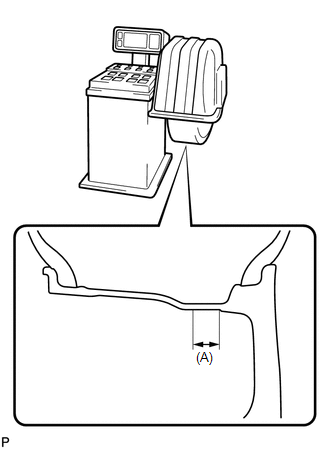

   • Adhere a stick-on type balance weight to the flat surface (A) shown in the illustration.

     Width (A)

     25 mm (0.984 in.)

   • Push the balance weight with your finger to securely adhere it to the desired position.
   • Do not reuse balance weights.

   HINT:

   The inner side balance weight should be installed by clipping it to the rim.

(Refer to ON-VEHICLE INSPECTION [10/2014 - ] )

(Refer to ON-VEHICLE INSPECTION [10/2014 - ] )
