Removal [10/2015 - ]: Procedure

  1. REMOVE LOWER NO. 2 INSTRUMENT PANEL AIRBAG ASSEMBLY

    (Refer to REMOVAL [10/2014 - ] )

  2. REMOVE LOWER INSTRUMENT PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 37

  3. REMOVE TIRE PRESSURE WARNING RESET SWITCH

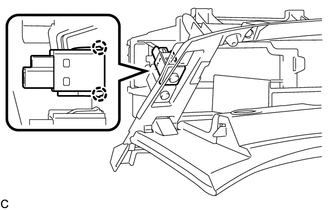

    1. Disengage the 2 claws to remove the tire pressure warning reset switch from the lower instrument panel sub-assembly.
      GTY596091Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
