Removal [10/2014 - ]: Procedure

  1. REMOVE REAR SEAT ASSEMBLY

    (Refer to REMOVAL [10/2014 - ] )

  2. REMOVE REAR DOOR SCUFF PLATE LH

    Refer to PROCEDURE - Step 8 and PROCEDURE - Step 8

  3. DISCONNECT REAR DOOR OPENING TRIM WEATHERSTRIP LH

    Refer to PROCEDURE - Step 4

  4. REMOVE ROOF SIDE INNER GARNISH ASSEMBLY LH

    Refer to PROCEDURE - Step 25 and PROCEDURE - Step 25

  5. REMOVE TIRE PRESSURE WARNING ECU AND RECEIVER

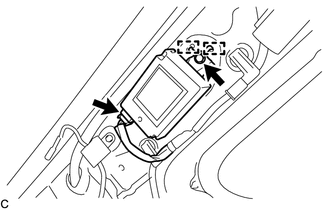

    1. Remove the bolt.
      GTY362690Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 tabs from the holes to remove the tire pressure warning ECU and receiver.
    3. Disconnect the connector from the tire pressure warning ECU and receiver.
