Components [10/2014 - ]: Illustration

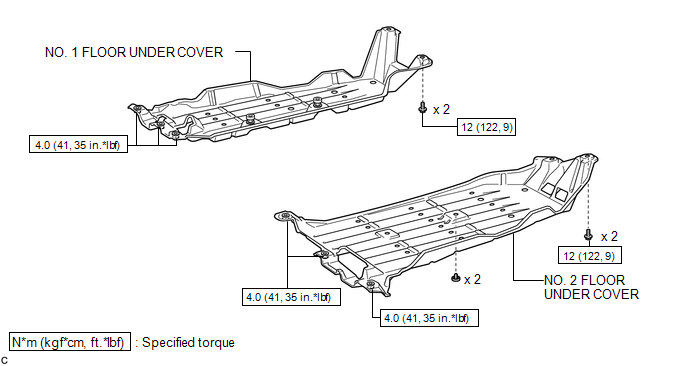

Fig 1: Rear Suspension Member Replacement Components With Torque Specifications (1 Of 4)
GTY574661Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Rear Suspension Member Replacement Components With Torque Specifications (2 Of 4)
GTY373383Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

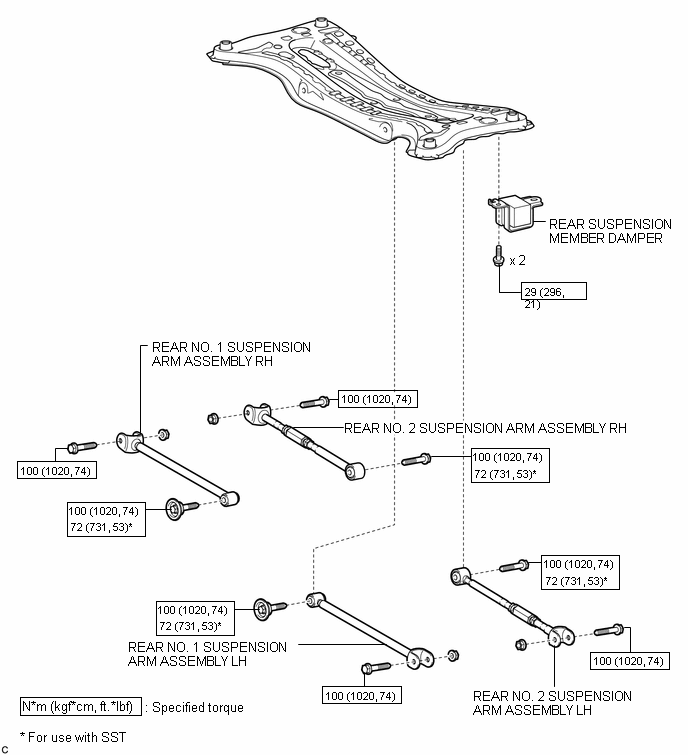

Fig 1: Rear Suspension Member Replacement Components With Torque Specifications (3 Of 4)
GTY550020Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

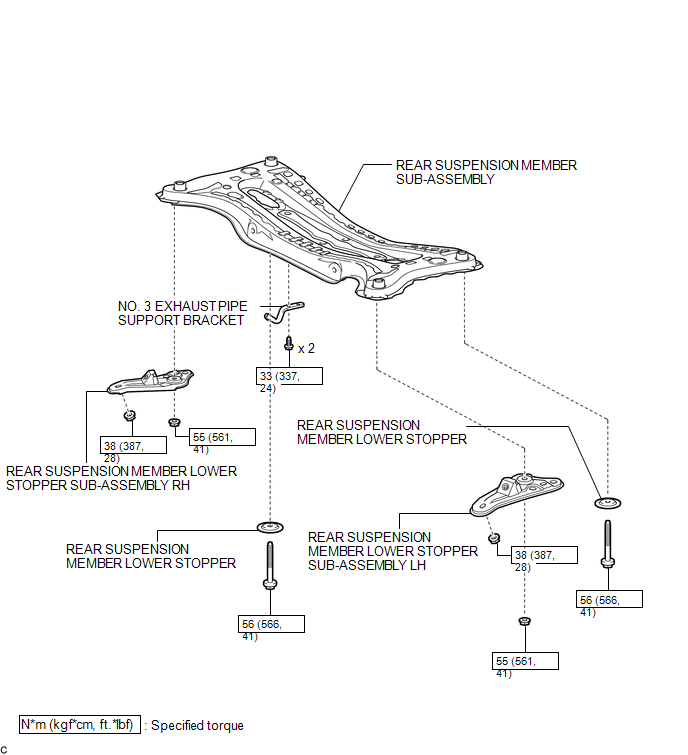

Fig 1: Rear Suspension Member Replacement Components With Torque Specifications (4 Of 4)
GTY560208Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


GTY546814Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
