Removal [10/2014 - ]: Procedure

  1. REMOVE REAR WHEEL
  2. SEPARATE NO. 3 PARKING BRAKE CABLE ASSEMBLY
    1. Remove the bolt and separate the No. 3 parking brake cable assembly from the vehicle.
      GTY316370Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE REAR STRUT ROD ASSEMBLY

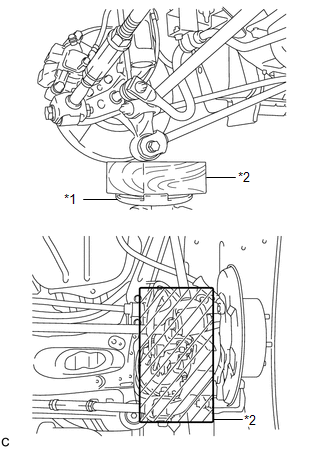

    1. Support the rear axle carrier sub-assembly with a jack using a wooden block.
      GTY564743Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Jack
      *2 Wooden Block
    2. Remove the 2 bolts and separate the rear strut rod assembly (front).
      GTY322236Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the bolt, nut and rear strut rod assembly from the rear axle carrier sub-assembly.
      GTY600688Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Because the nut has its own stopper, do not turn the nut. Loosen the bolt with the nut secured.
