Components [10/2014 - ]: Illustration

Fig 1: Rear Shock Absorber Replacement Components With Torque Specifications (1 Of 2)
GTY560738Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

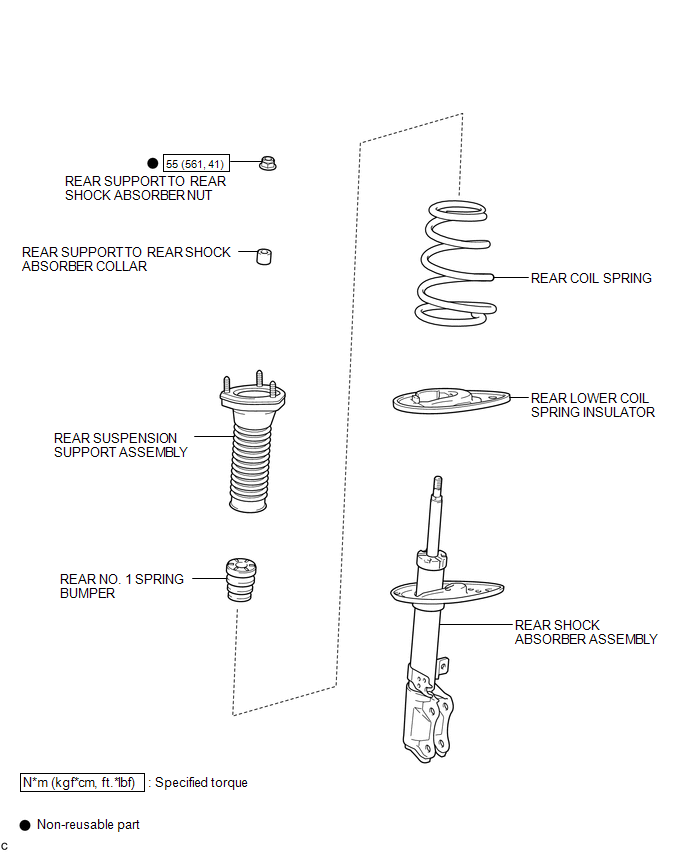

Fig 1: Rear Shock Absorber Replacement Components With Torque Specifications (2 Of 2)
GTY569682Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
