Removal [10/2014 - 10/2015]: Procedure

  1. REMOVE FRONT FRAME ASSEMBLY (When Using the Engine Support Bridge)

    (Refer to REMOVAL [10/2014 - ] )

  2. REMOVE ENGINE ASSEMBLY WITH TRANSAXLE (When Not Using the Engine Support Bridge)

    (Refer to REMOVAL [10/2014 - ] )

  3. REMOVE FRONT STABILIZER LINK ASSEMBLY LH

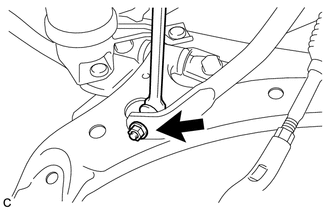

    1. Remove the nut and front stabilizer link assembly LH from the front stabilizer bar.
      GTY377824Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      If the ball joint turns together with the nut, use a wrench to hold the stud bolt.

  4. REMOVE FRONT STABILIZER LINK ASSEMBLY RH

    HINT:

    Perform the same procedure as the LH side.

  5. REMOVE FRONT NO. 1 STABILIZER BRACKET LH

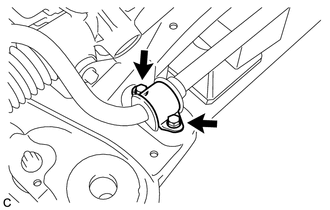

    1. Remove the 2 bolts and front No. 1 stabilizer bracket LH from the front frame assembly.
      GTY320913Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE FRONT NO. 1 STABILIZER BRACKET RH

    HINT:

    Perform the same procedure as the LH side.

  7. REMOVE FRONT STABILIZER BAR
    1. Remove the front stabilizer bar from the front frame assembly.
  8. REMOVE FRONT NO. 1 STABILIZER BAR BUSHING
    1. Remove the 2 front No. 1 stabilizer bar bushings from the front stabilizer bar.
