Components [10/2015 - ]: Illustration

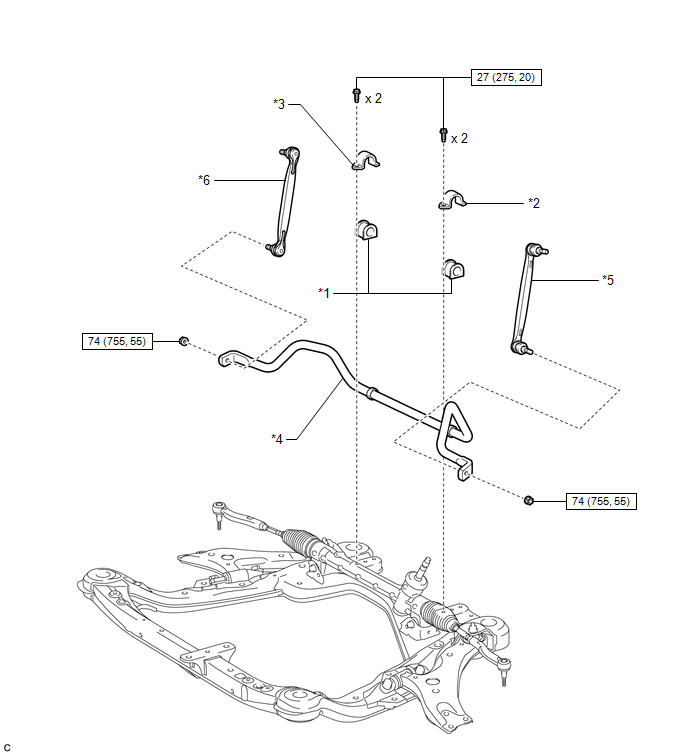

Fig 1: Front Stabilizer Bar Replacement Components With Torque Specifications
GTY605644Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 FRONT NO. 1 STABILIZER BAR BUSHING *2 FRONT NO. 1 STABILIZER BRACKET LH
*3 FRONT NO. 1 STABILIZER BRACKET RH *4 FRONT STABILIZER BAR
*5 FRONT STABILIZER LINK ASSEMBLY LH *6 FRONT STABILIZER LINK ASSEMBLY RH
N*m (kgf*cm, ft.*lbf): Specified torque - -
